OHAUS FC5706 - Replacing the Display

SERVICE INSTRUCTIONS
Ohaus Corporation www.ohaus.com 3-10 FC5706 Service Manual

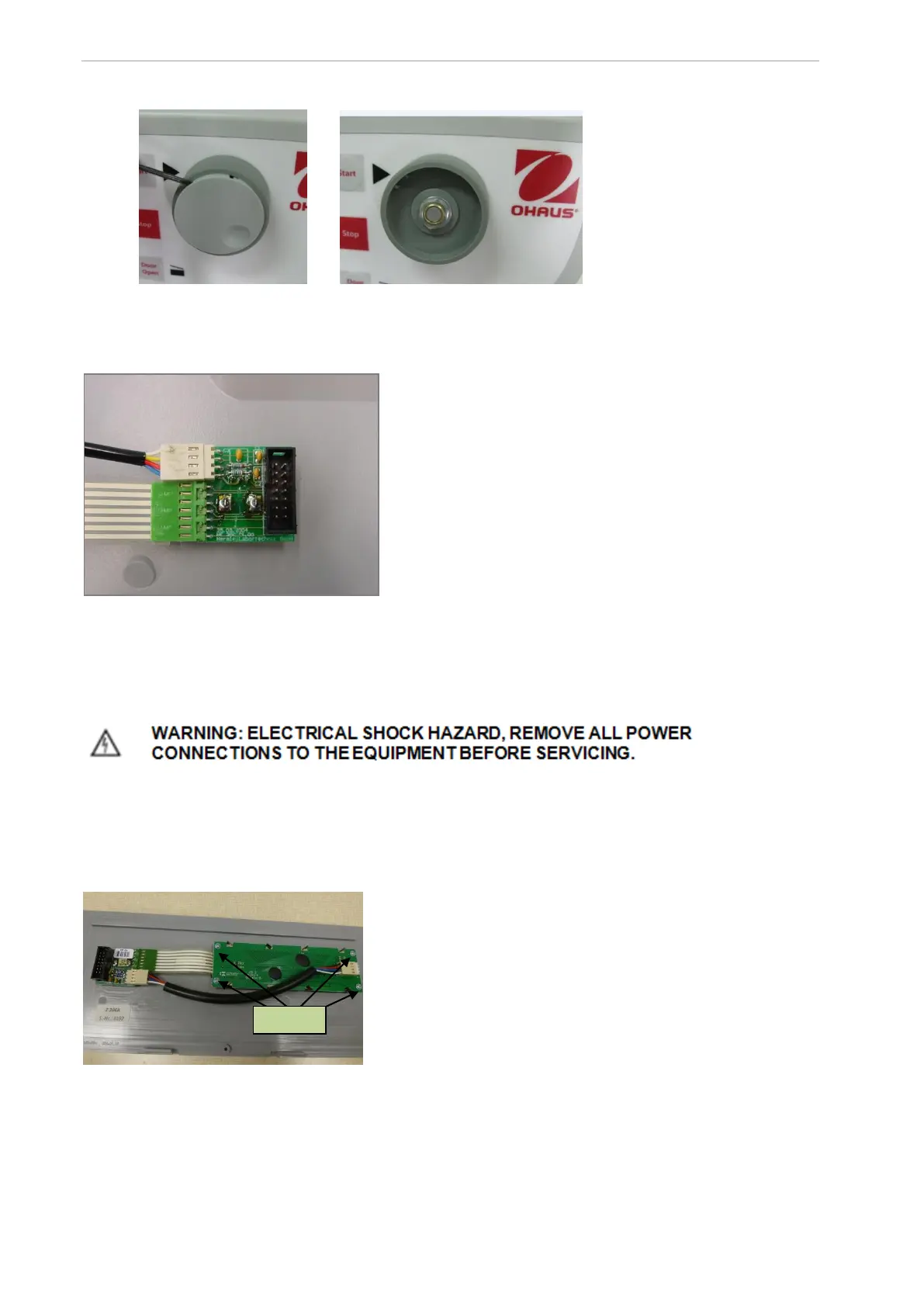

Figure 2
 Loosen all electrical contacts to the shaft encoder on the back side of the front housing.
Figure 3
3.3.3 Replacing the display
 Loosen all electrical contacts to the display on the back of the front housing.
 Remove the 4 fastening screws of the display and pull away the display upwards.
Figure 4
