OHAUS FC5706 - 3.3.9 Replacing Motor and Boards

SERVICE INSTRUCTIONS
Ohaus Corporation www.ohaus.com 3-10 FC5706 Service Manual
3.3.9 Replacing the motor
 Remove the housing as described in chapter 3.3.5.
 Remove the connection cable to the motor on the control board.
a) current supply of the motor
b) speed and imbalance sensor

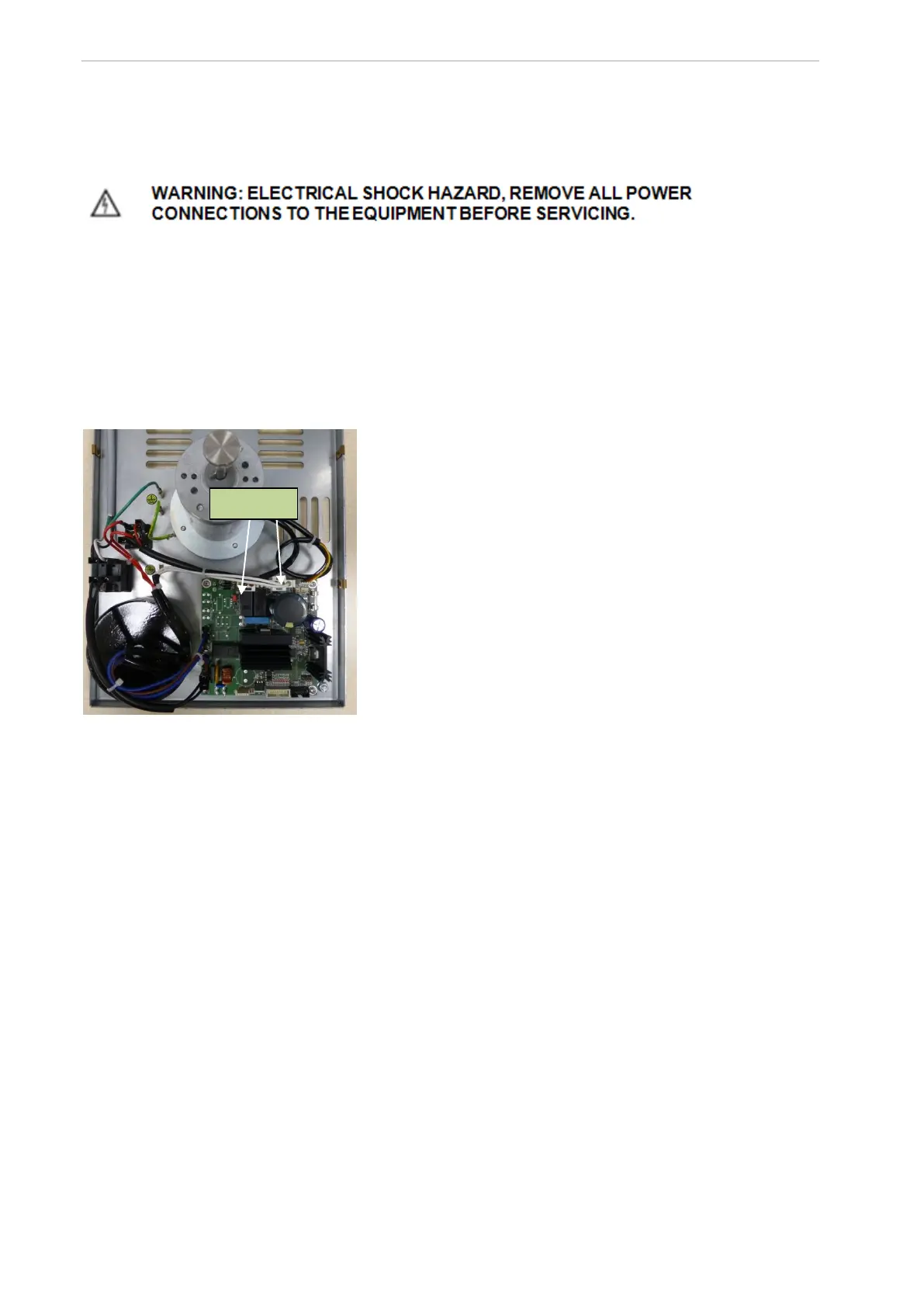

Figure 9
 Turn the motor fixing screws out of the rear side of the ground plate.
 Lift the motor out of the unit.
 When re-assembling the spare motor, take care of the wirings, as they must not be
jammed.
 Re-assemble the unit in reverse order.
remove
