OHAUS FC5706 - Page 40

SERVICE INSTRUCTIONS
Ohaus Corporation www.ohaus.com 3-11 FC5706 Service Manual

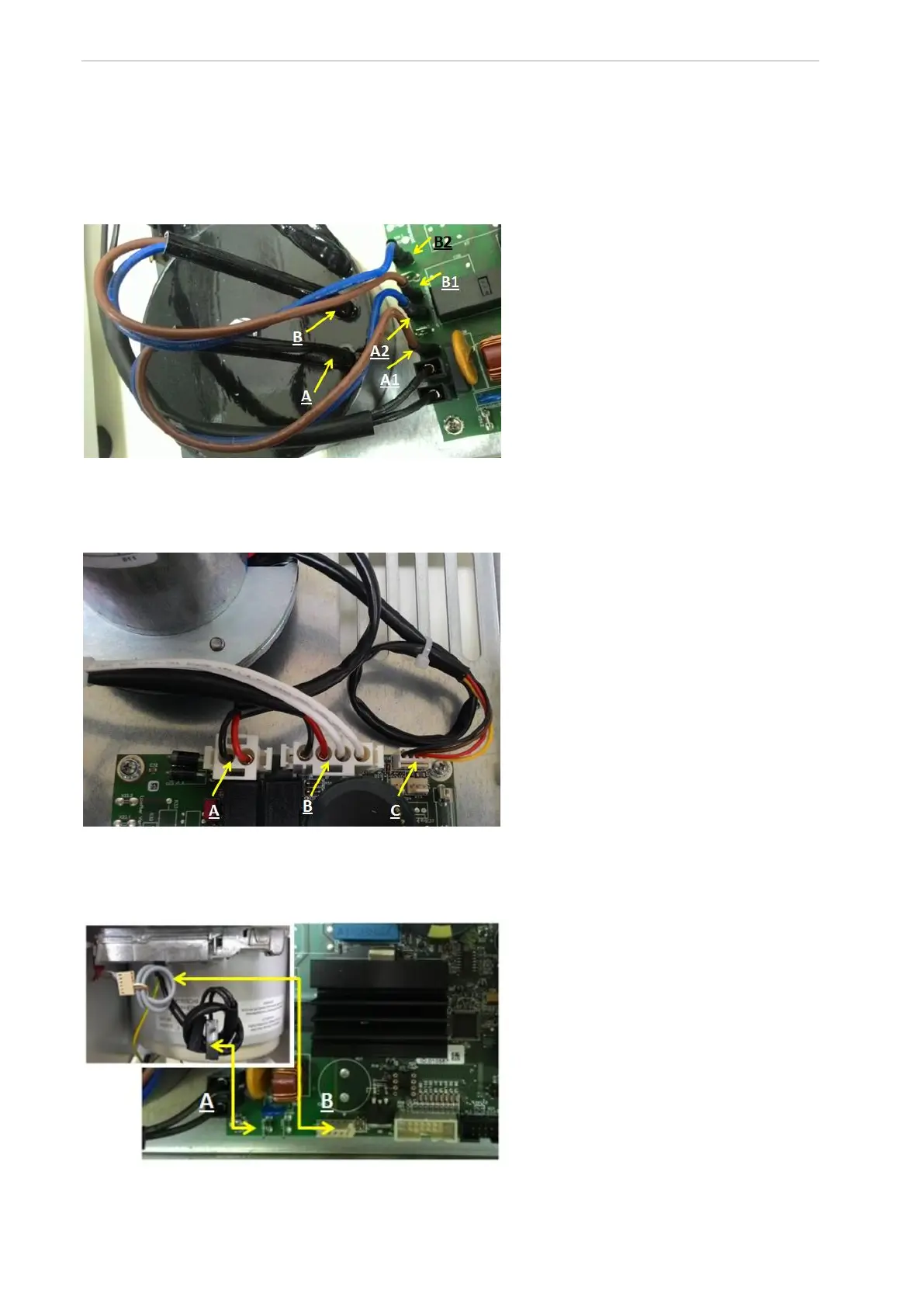

Transformer cable connection:
Main PCBA connection:
Lid Lock connection:
A- A1 (Brown)= to Main PCBA point X21.1
A2 (Blue) = to Main PCBA point X21.3
B- B1 (Brown)= to Main PCBA point X21.4
B2 (Blue)= to Main PCBA point X21.6
A= (Black/Red) from Motor
B= (Black/Red) from Rectifier, Bridge
= (White) from Transformer
C= From Motor
A=Black Cable
B=Gray Cable
