Replacing Consumables
7-8
13

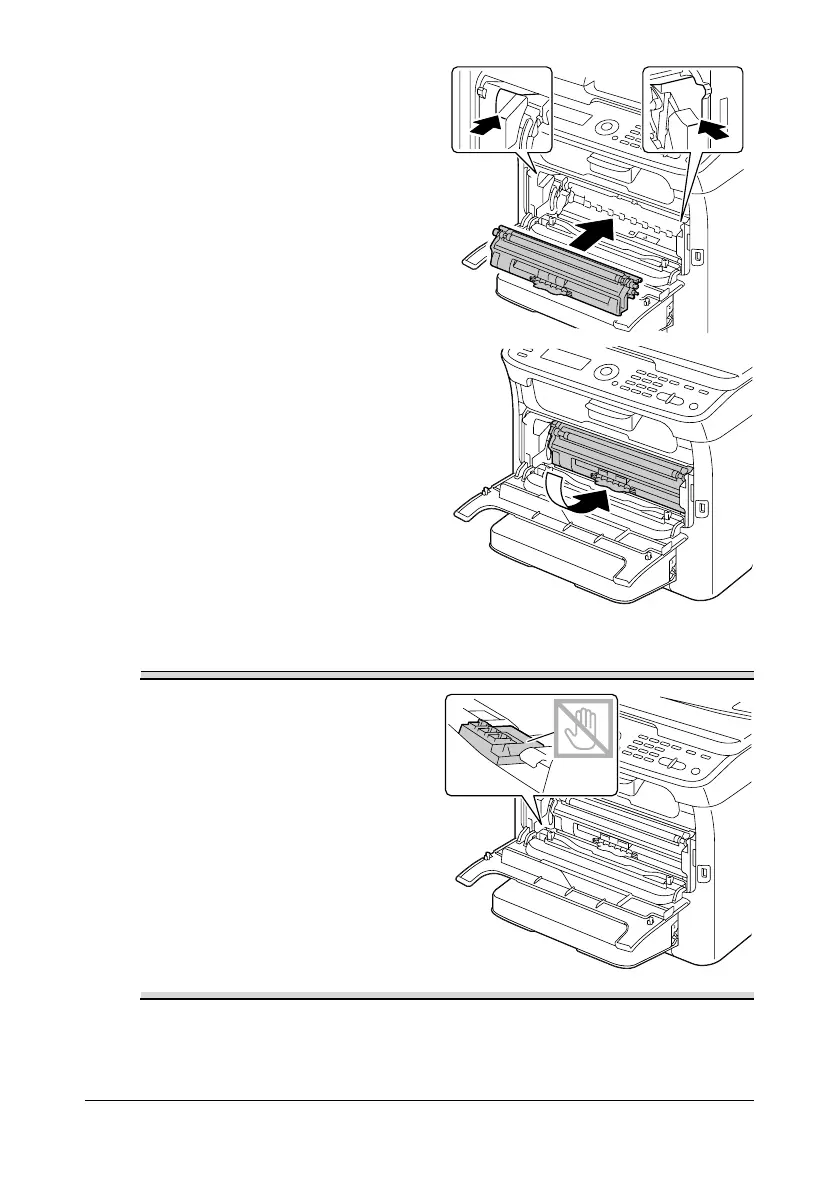

Align the shaft on each end of
the toner cartridge with its hold-
ers, and then insert the car-
tridge.
"
Before inserting the
toner
cartridge, make sure that
the color of the tone
r car-
tridge to be installed is
the same as
the label on
the toner cartridge carou-
sel.
Note
Do not touch the cont
act
indicated the ill
ustration.
163
