Duplex Option
10-10
2

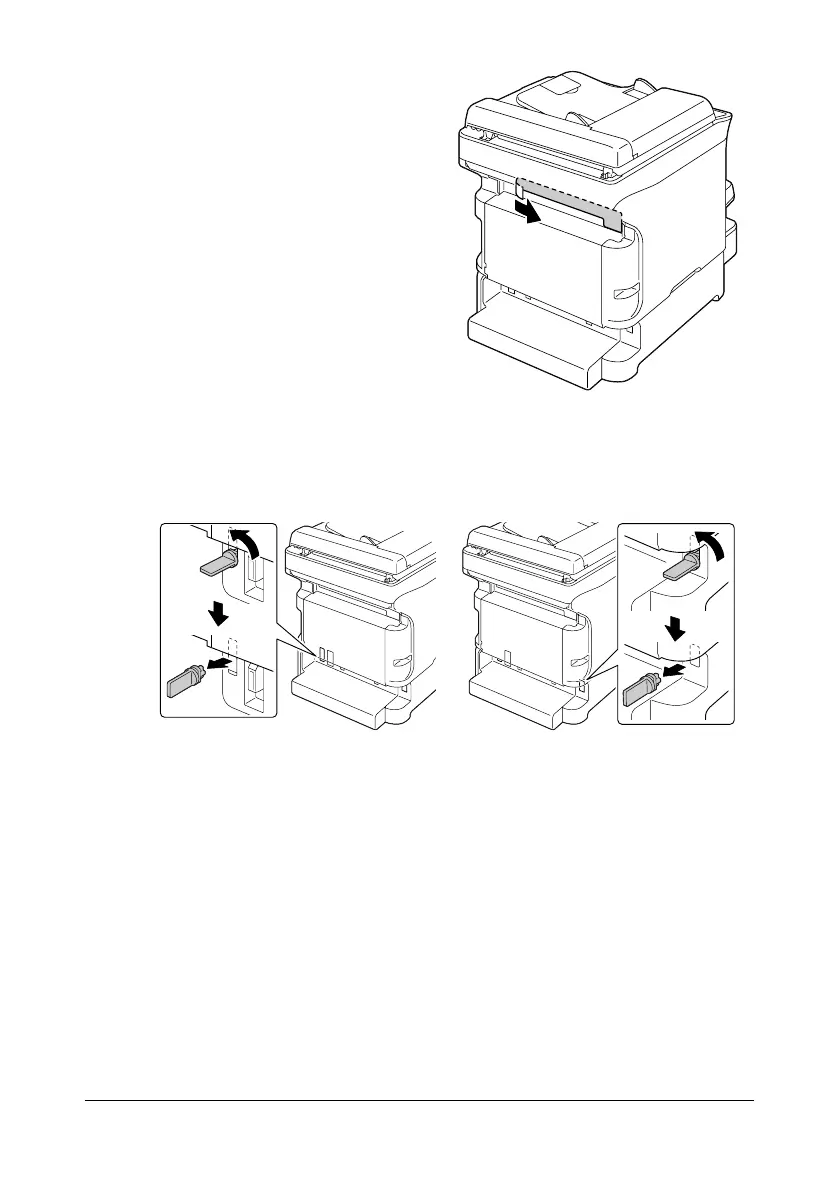

Remove the tape affixed
to the
rear cover
.
3
If the locking pins are installed on the left and right side at the back of
T
ray 2, remove them.
T
o remove a locking
pin, turn it t
o either th
e left or the right so th
at its grip
is vertical, and then pull out the locking pin to remove it.
4
Prepare the duplex option.
259
261
