MFP overview > 12
MFP
OVERVIEW
F
RONT
VIEW

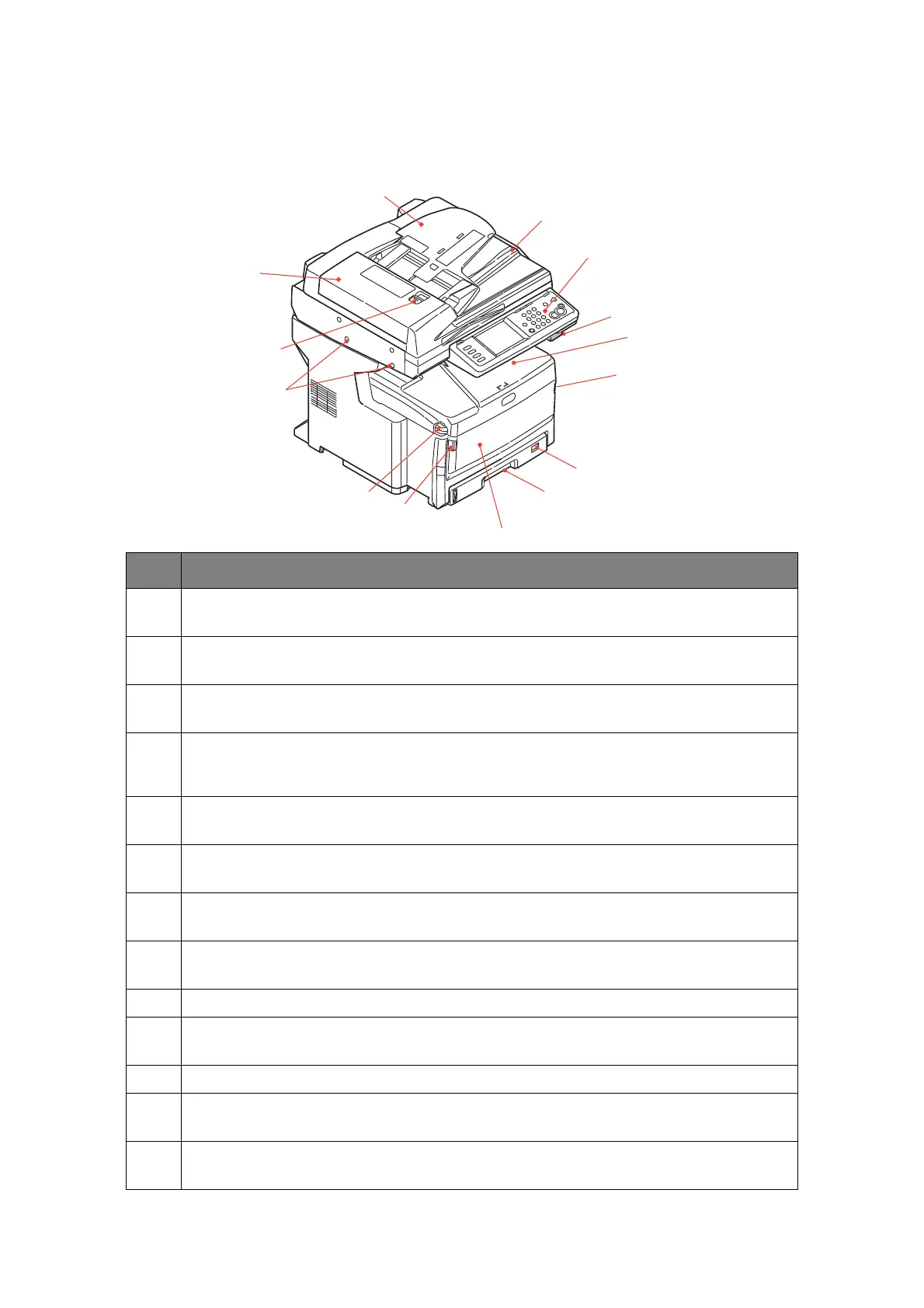

REF. DESCRIPTION
1. Output stacker, face down
Standard printed copy delivery point. Holds up to 250 sheets at 80g/m².
2. Top cover release button
Press to open.
3. Multi purpose tray release handles
Pull to open.
4. Multi purpose feeder (shown closed)
Used for feeding heavier paper stocks, envelopes and other special media. Also for manual
feeding of single sheets when required. Holds up to 100 sheets of 80g/m² paper.
5. Paper tray
Standard blank paper tray. Holds up to 300 sheets of 80g/m² paper.
6. Paper size dial
Set to paper size loaded in tray.
7. Scanner locks
Unlock scanner before using.
8. Automatic Document Feeder (ADF) cover release button
Lift to open.
9. ADF unit
10. ADF paper tray
Holds up to 100 sheets of A4 size paper or 30 sheets of A3 size paper.
11. Document cover
12. Control panel
With touch screen display, status LEDs and operator buttons.
13. Scanner release lever
Pull the release lever towards you until you hear a click, then gently raise the scanner.
