MFP overview > 13

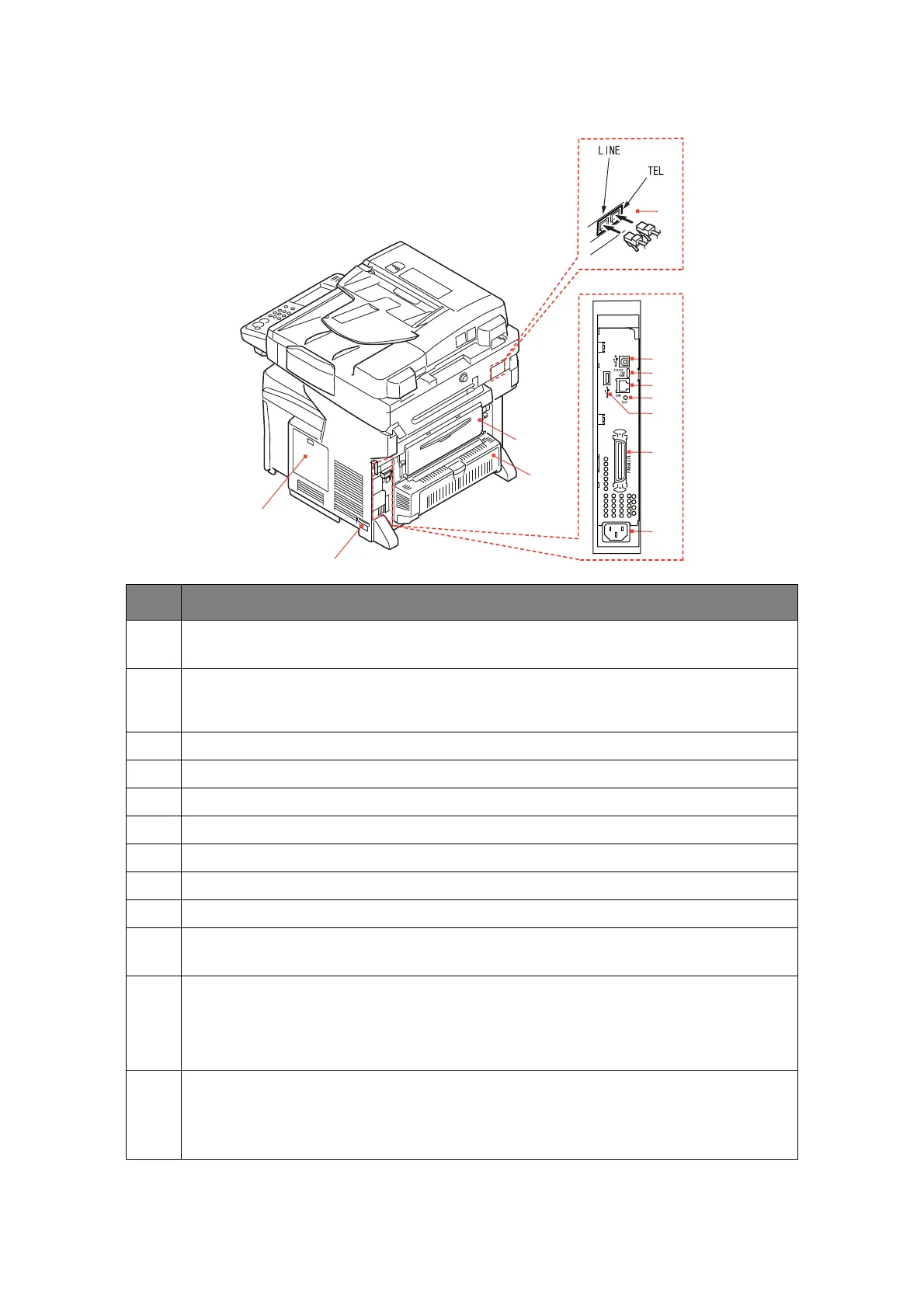

R
EAR
VIEW
REF. DESCRIPTION
14. Access panel
Allows access to the hard disk drive (HDD) and to install optional memory.
15. ON/OFF power switch
Refer to “Switching off” on page 17 for details. Always follow the correct procedure to ensure
that no HDD data is lost.
16. AC power socket
17. Parallel connector
18. USB connector (type A)
19. Test switch
20. Network connection
21. Status LEDs
22. USB connection (type B)
23. Duplex unit
Provides automatic two-sided printing.
24. Rear, face up stacker
This is mainly used for heavy print media. When used in conjunction with the multi purpose
feed tray, the paper path through the MFP is essentially straight. This avoids bending the paper
around curves in the paper path and enables feeding of up to 200g/m² media. Holds up to 100
sheets of 80g/m² paper.
25. Line connection
Socket for connecting the machine to the telephone line.
Tel connection
Socket for connecting a telephone handset (if required).
