Installing upgrades > 146
I
NVENTORY
* The accessory pack is the same for configurations A and B.
I
NSTALLATION
1. Switch the MFP off and disconnect the power cable. Refer to “Switching off” on
page 17 for details. Always follow the correct procedure to ensure that no HDD data
is lost.

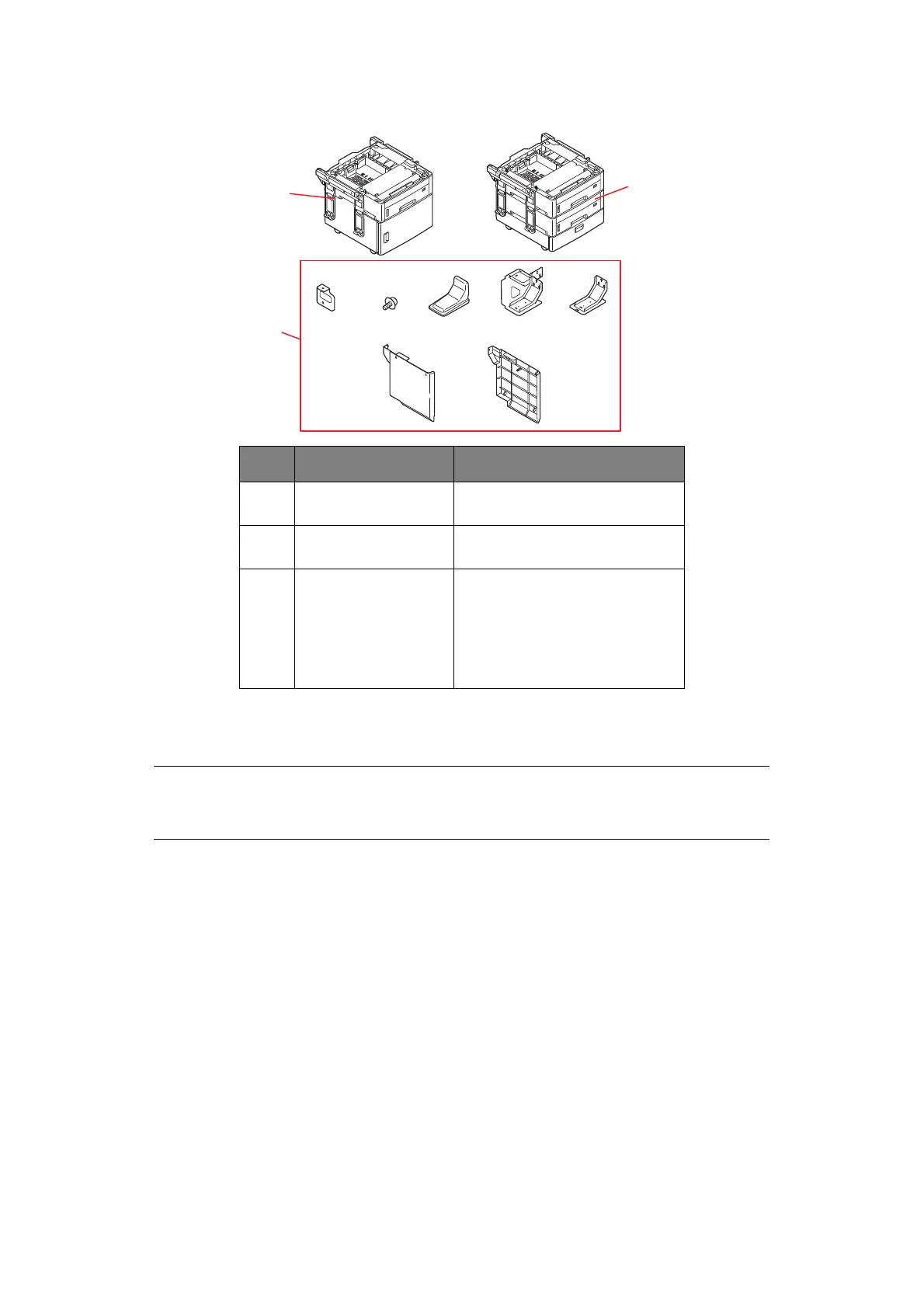

REF. DESCRIPTION CONTENT
1 Configuration A
(Model No. N34234A)
> One paper tray
> Tall storage cabinet
2 Configuration B
(Model No. N34235A)
> Two paper trays
> Short storage cabinet
3* Accessory pack
> Plate x 4
> Screw x 24
> Stabilising foot cover x 6
> Rear stabilising foot x 2
> Front stabilising foot x 2
> Left side cover x 1
> Right side cover x 1
NOTE
For illustration purposes, two additional trays and the short cabinet is shown.
The procedure for installing one tray and the tall cabinet is identical.
x 24
x 2x 2x 6
x 4
1
3
2
