13. Gently lower the scanner.
T
RANSFER
BELT
REPLACEMENT
The belt unit is located under the four image drums.
1. Switch off the MFP and allow the fuser to cool for about 10 minutes before opening
the cover.

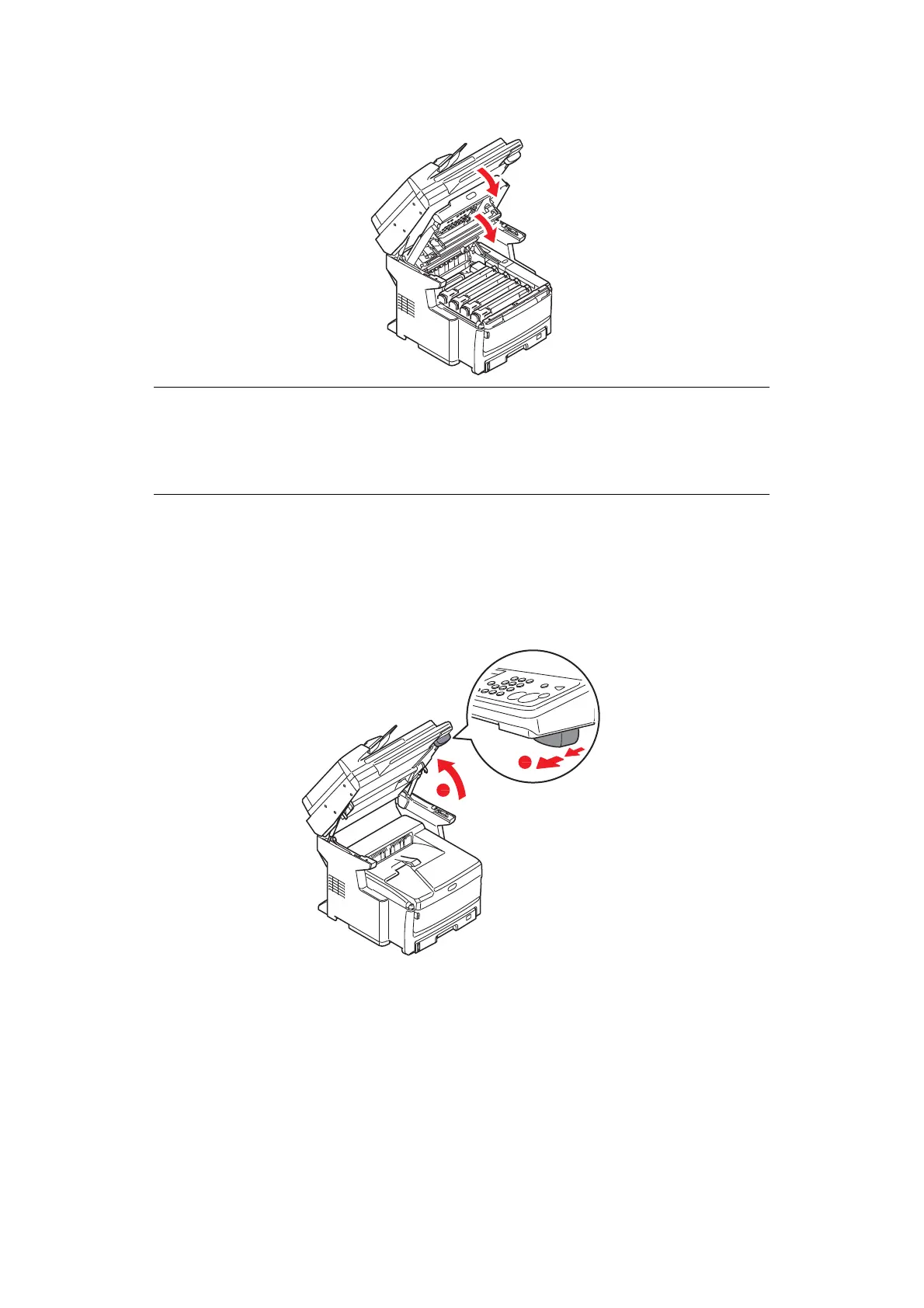

2. Pull the lever (a) firmly to release the lock and then gently raise the scanner (b).
NOTE
If you need to return or transport this product for any reason, please make
sure you remove the image drum unit beforehand and place in the bag
provided. This is to avoid toner spillage. Refer to “Appendix A - Moving and
transporting” on page 177 for details.
