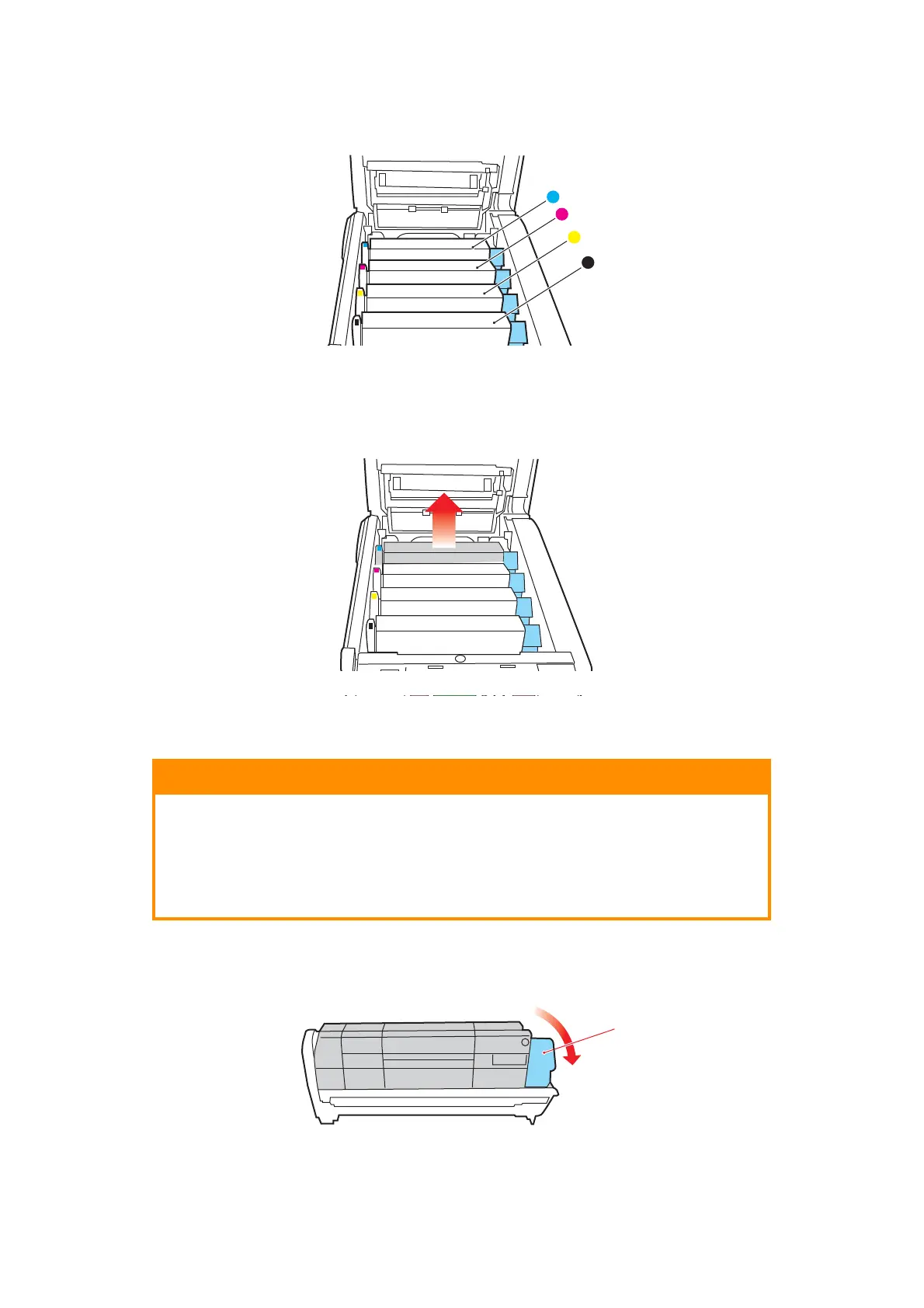

3. Note the positions of the four cartridges. It is essential that they go back in the same
order.
4. Holding it by its top centre, lift the image drum, complete with its toner cartridge, up
and out of the MFP.
5. Put the cartridge down gently onto a piece of paper to prevent toner from marking
your furniture and to avoid damaging the green drum surface.
6. With the coloured toner release lever (1) to the right, pull the lever towards you.
This will release the bond between the toner cartridge and the image drum
cartridge.
1. Cyan cartridge 3. Yellow cartridge
2. Magenta cartridge 4. Black cartridge
CAUTION!
The green image drum surface at the base of the cartridge is very
delicate and light sensitive. Do not touch it and do not expose it to
normal room light for more than 5 minutes. If the drum unit needs
to be out of the MFP for longer than this, please wrap the cartridge
inside a black plastic bag to keep it away from light. Never expose
the drum to direct sunlight or very bright room lighting.
