Maintenance > 132

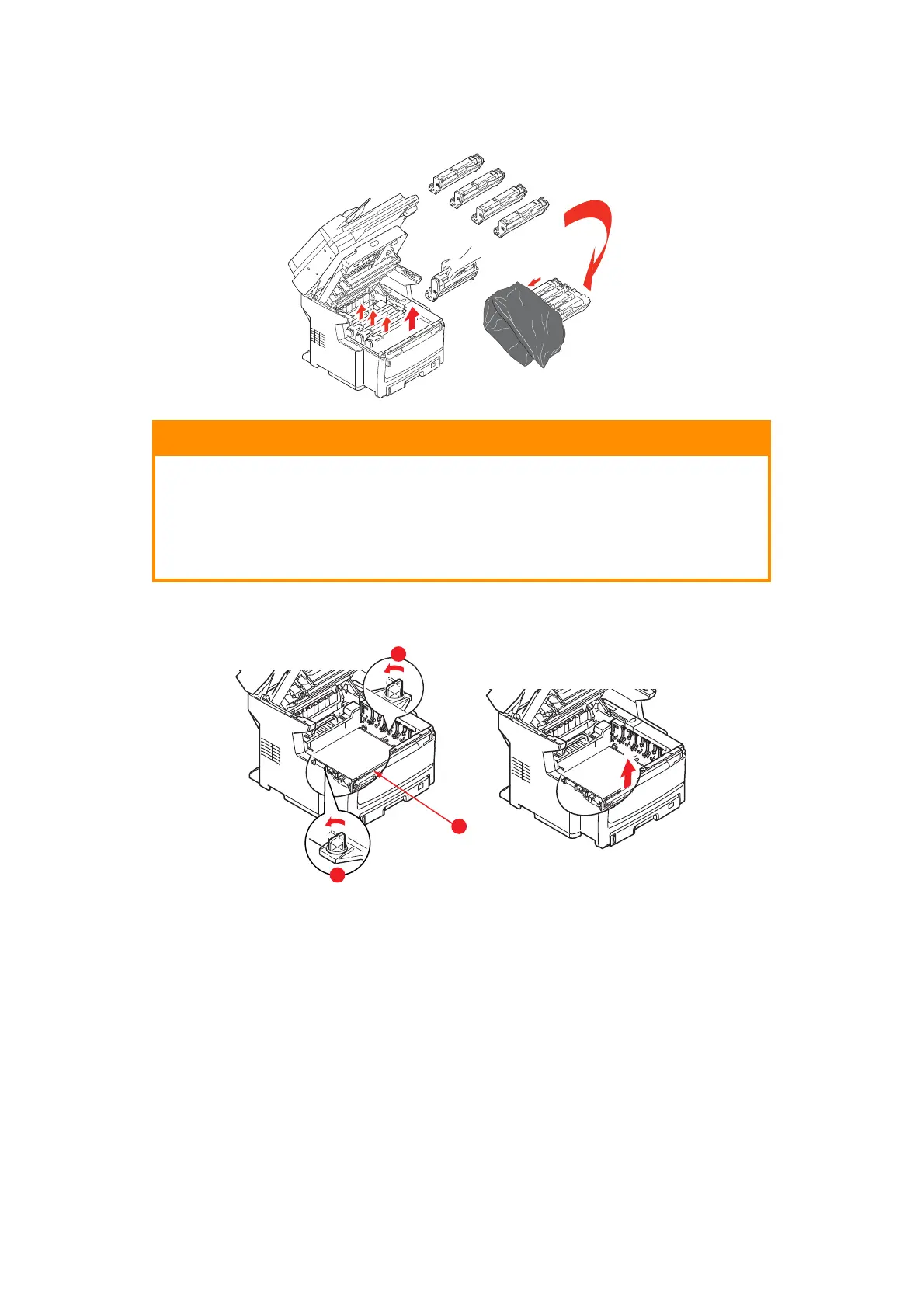

5. Lift each of the image drum units out of the MFP and place them in a safe place away
from direct sources of heat and light.
6. Locate the two fasteners (1) at each side of the belt and the lifting bar (b) at the
front end.
7. Turn the two fasteners 90° to the left. This will release the belt from the MFP
chassis.
8. Pull the lifting bar (2) upwards so that belt tilts up towards the front, and withdraw
the belt unit from the MFP.
CAUTION!
The green image drum surface at the base of each cartridge is very
delicate and light sensitive. Do not touch it and do not expose it to
normal room light for more than 5 minutes. If the drum unit needs
to be out of the MFP for longer than this, please wrap the cartridge
inside a black plastic bag to keep it away from light. Never expose
the drum to direct sunlight or very bright room lighting.
1
1
2
