Maintenance > 135

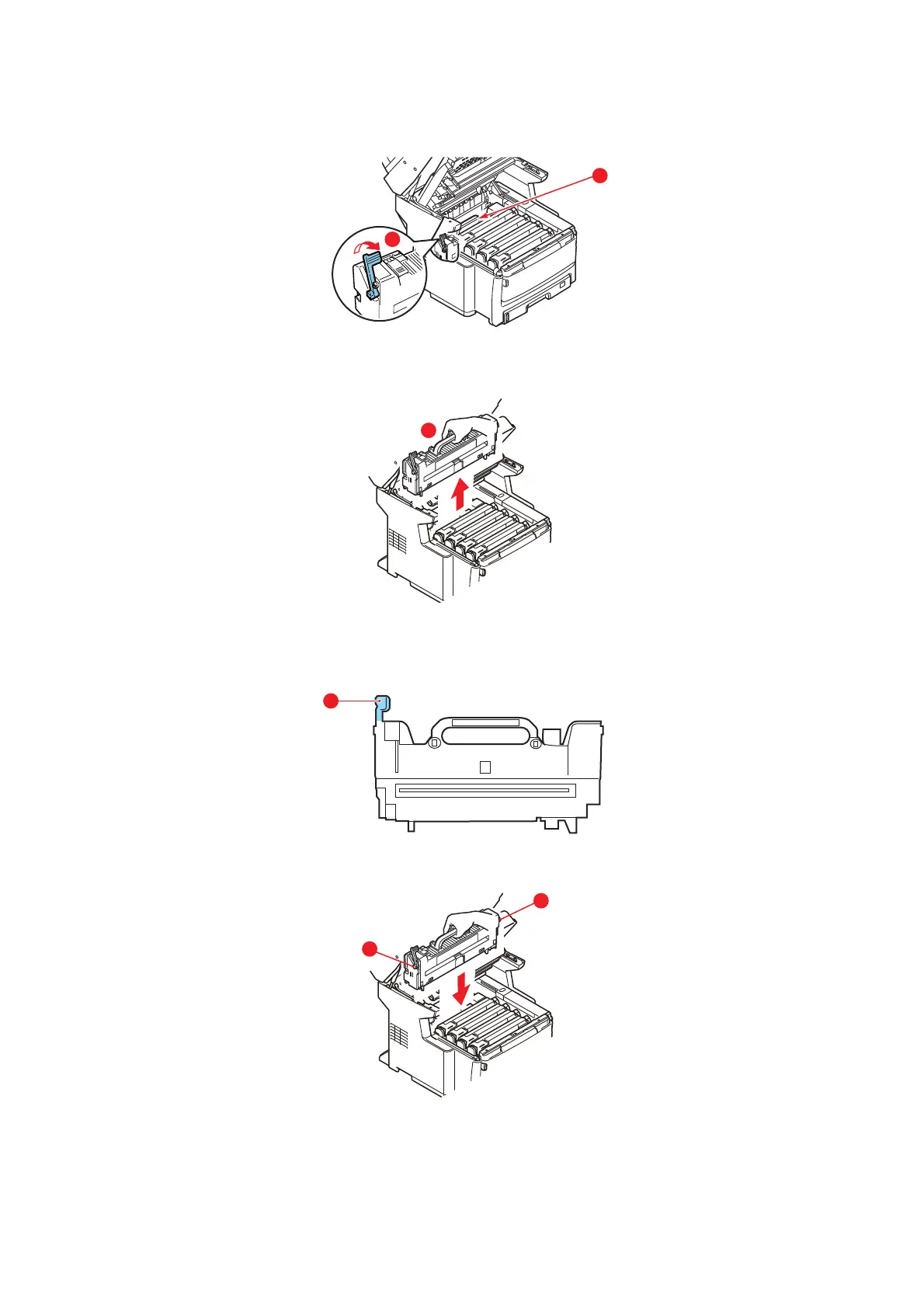

5. Pull the fuser retaining lever (2) towards the front of the MFP so that it is fully
upright.
6. Holding the fuser by its handle (1), lift the fuser straight up and out of the MFP. If
the fuser is still warm, place it on a flat surface which will not be damaged by heat.
7. Remove the new fuser from its packaging and remove the transit material.
8. Holding the new fuser by its handle, make sure that it is the correct way round. The
retaining lever (2) should be fully upright.
9. Lower the fuser into the MFP, locating the two lugs (3) into their slots in the metal
partition which separates the fuser area from the image drums.
1
2
1
2
