Installing upgrades > 144

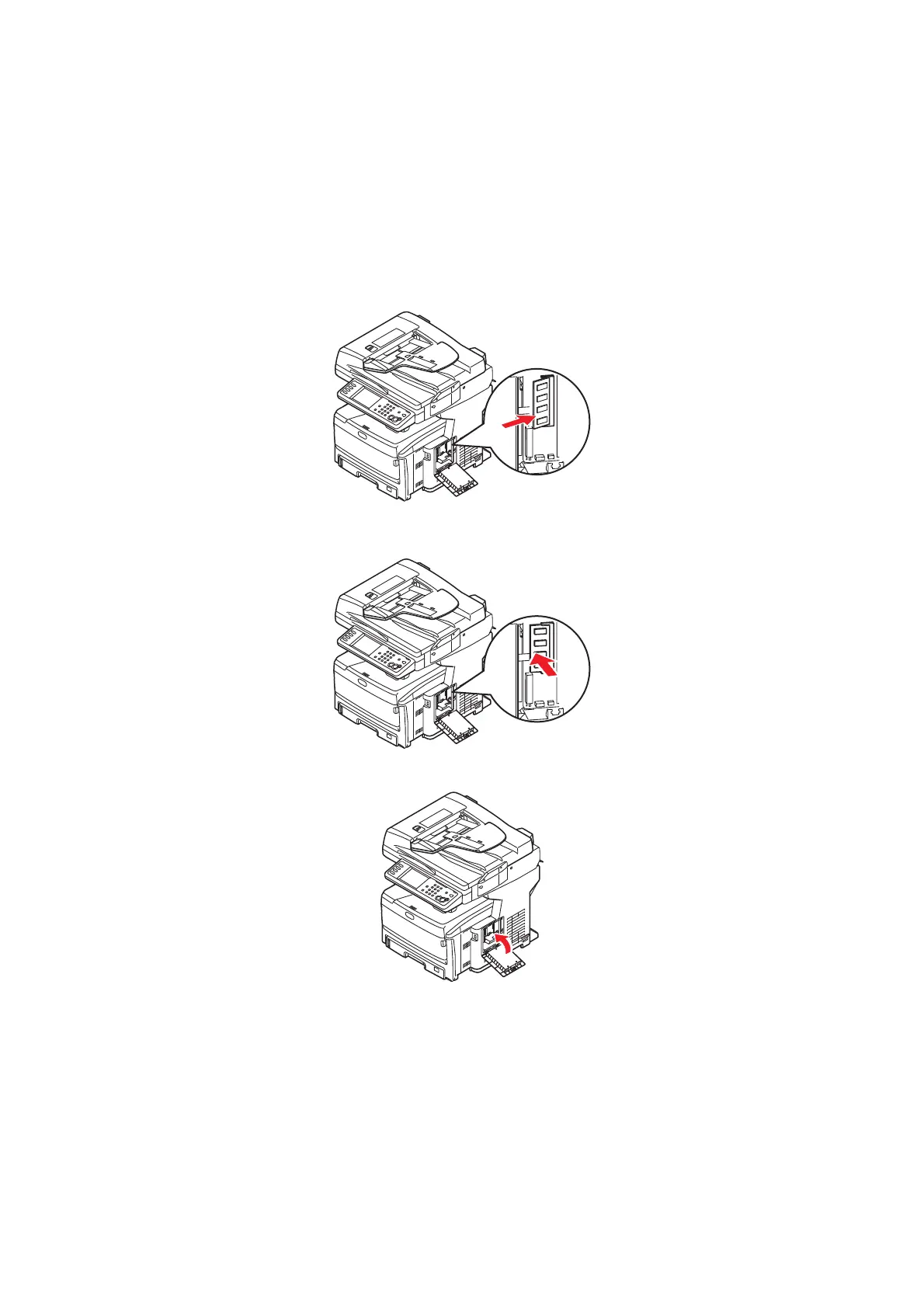

5. The maximum capacity of your machine is 768MB, therefore the existing 256MB
board must be removed from the RAM expansion slot before the new memory
upgrade board can be fitted. To remove it:
(a) Grip the board firmly by its short edges and pull it out of the slot.
(b) Place the removed memory board into the antistatic bag which originally
contained the new memory board.
6. Hold the new memory board by its short edges, so that the edge connector faces in
towards the RAM expansion slot, and the small cutout is closer to the bottom of the
machine.
7. Gently push the board into the RAM expansion slot until it latches in and will not go
any further.
8. Close the access panel, pressing firmly at top to latch it closed.
9. Reconnect the power cable and switch the MFP on.
