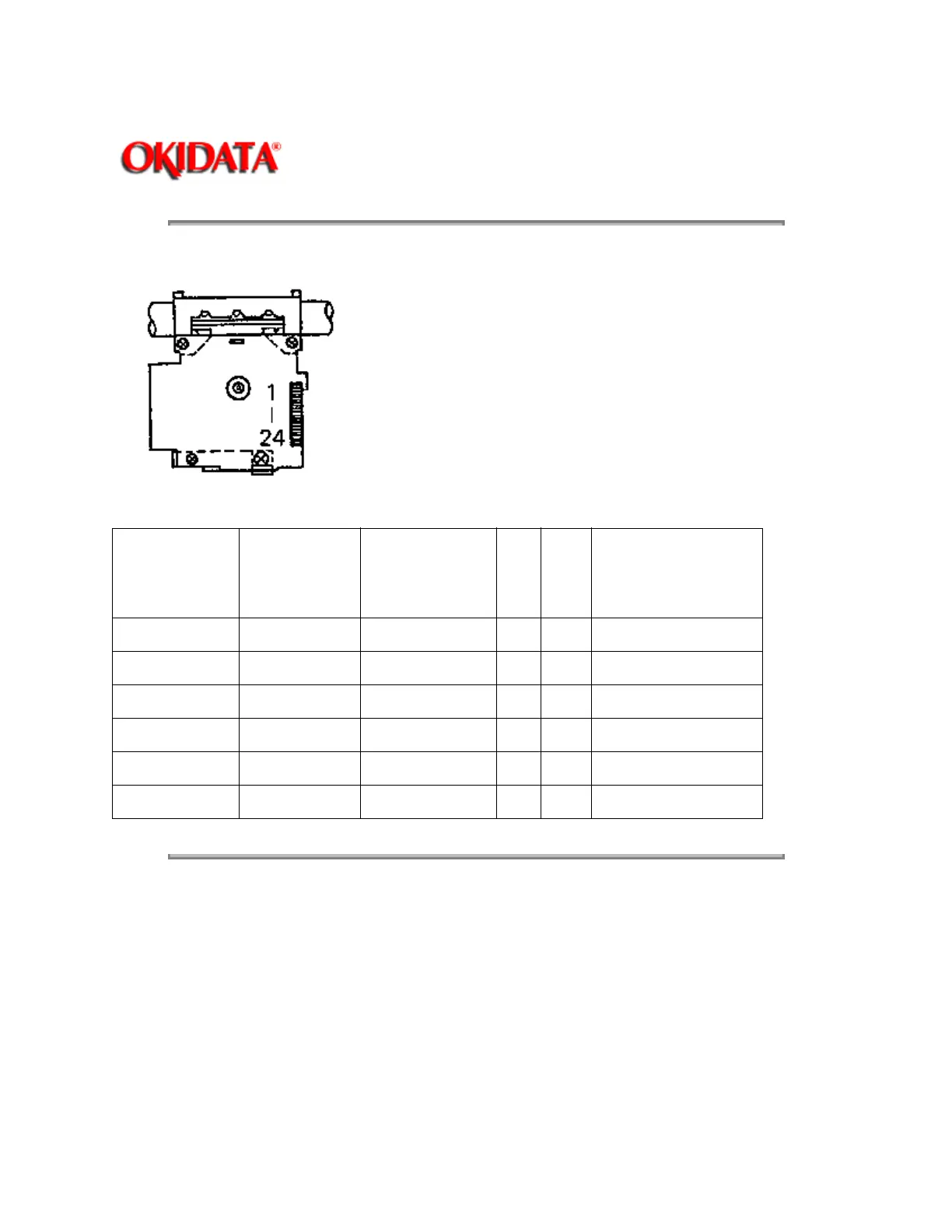

Service Guide ML390/391
Chapter 4 Failure & Repair Analysis
4.8.04 Space Motor
Name Signal Name Connection
(Refer to
Interconnect
Diagram)
Coil Resistance
A B C
Space Motor U 5 7 7 Approx. 21 ohms
V 13 8 8
W 4 9 9
Phase A 20 18 18
Phase B 19 17 17
