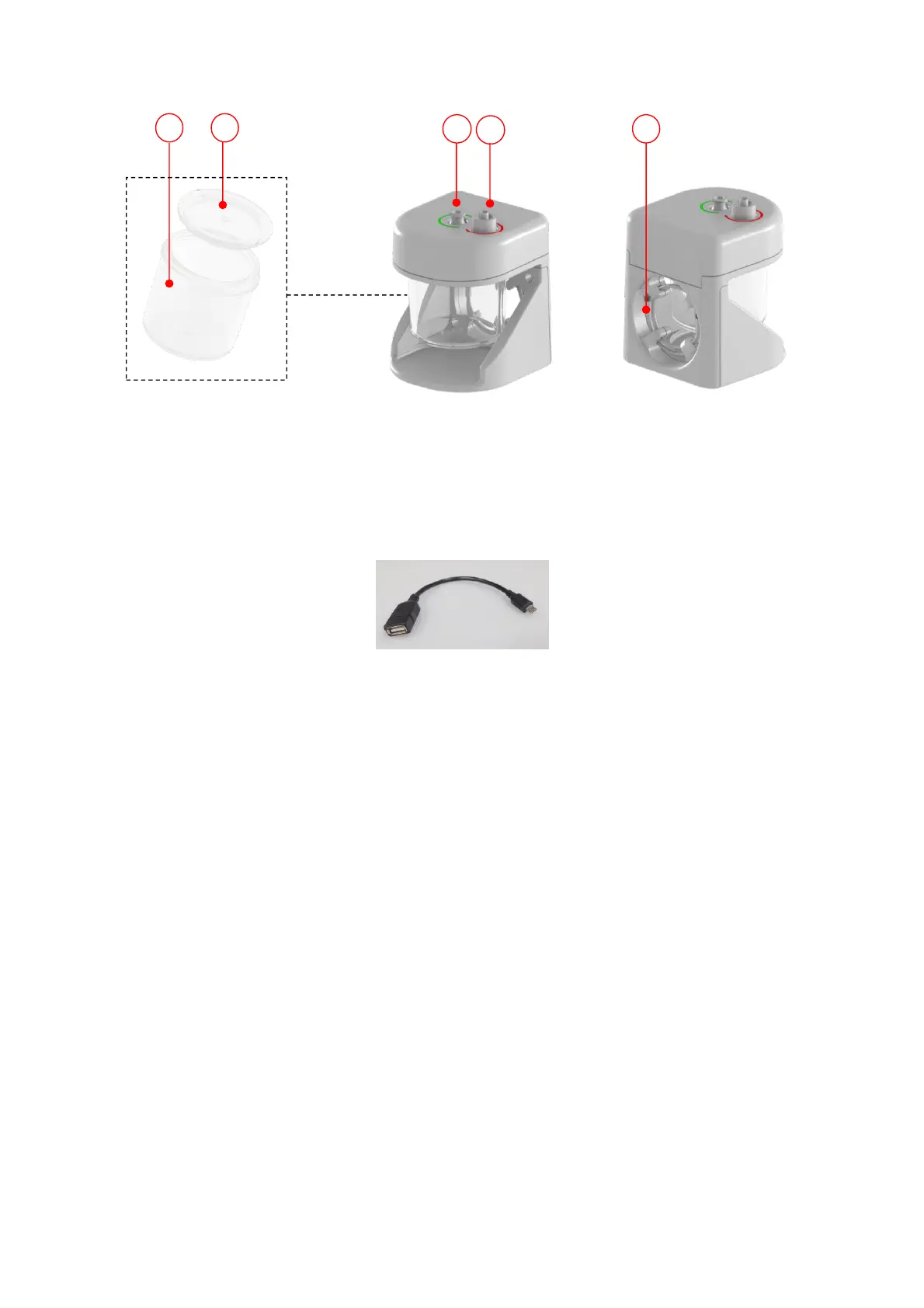

Figure 7. Moisture Trap.
5.4 OTG-Cable
The OTG Cable (G in Figure 3) can be used to download data stored on LEO to a USB Key. USB Key is not
supplied.
Figure 8. OTG Cable
5.5 Fitting Tubes
Okolab supplies 5 different types of reduction fitting tubes (I in Figure 3) allowing the compatibility of its
tubes with many sampling gas ports of the incubators.
Okolab provides the following reduction fitting tubes:
1. from ID=1.6mm to ID=3.2mm
2. from ID=2.4mm to ID=3.2mm
3. from ID=4.0mm to ID=3.2mm
4. from ID=4.8mm to ID=3.2mm
5. from ID=6.4mm to ID=3.2mm
Three additional caps for LEO’s ports, a male and female luer connector have been also supplied.
Note ► Additional caps are used to perform the Leak test of the pump (see paragraph 9.3.3.1).
5.6 Calibration Kit
The Calibration Kit (L in Figure 3) allows calibration of CO2-O2-MODULE.
Figure 9 shows the Calibration Kit. The clear connector (1 in Figure 9) has to be connected to red
connector of TUBE-A (1 in Figure 10). The end of Calibration Kit (3 in Figure 9) has to be connected to the gas
