System Boards
|
Main Board 63

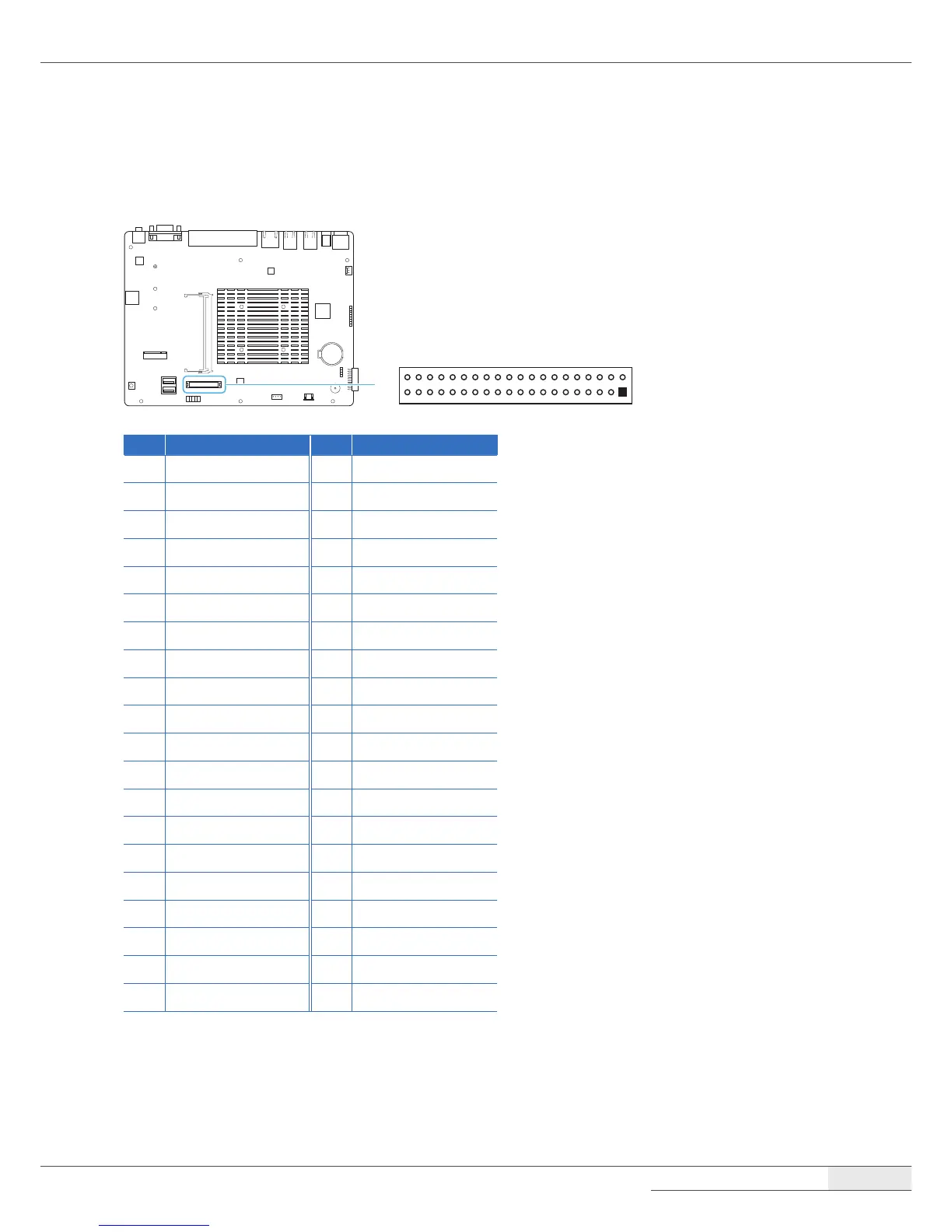

LVDS header (LVDS1)
This connector supports 18/24 bit dual-channel panels.
40 2
39 1
Pin Denition Pin Denition
1 +12V 2 +12V
3 +12V 4 +12V
5 +12V 6 GND
7 +3.3V 8 GND
9 VDD 10 VDD
11 N/C 12 N/C
13 LVDS_BKL_ADJ 14 N/C
15 LVDS_BKL_EN 16 GND
17 LVDS_A_DATA0- 18 LVDS_A_DATA0+
19 LVDS_A_DATA1- 20 LVDS_A_DATA1+
21 LVDS_A_DATA2- 22 LVDS_A_DATA2+
23 LVDS_A_CLK- 24 LVDS_A_CLK+
25 LVDS_A_DATA3- 26 LVDS_A_DATA3+
27 GND(Detect) 28 GND
29 LVDS_B_DATA0- 30 LVDS_B_DATA0+
31 LVDS_B_DATA1- 32 LVDS_B_DATA1+
33 LVDS_B_DATA2- 34 LVDS_B_DATA2+
35 LVDS_B_CLK- 36 LVDS_B_CLK+
37 LVDS_B_DATA3- 38 LVDS_B_DATA3+
39 GND 40 GND
