Oldham iTrans User Manual

Operation iTrans Fixed Point Single/Dual Gas Monitor
5-10 iTrans User Manual (P/N: 77023554-1)
using the “” and “” keys. When the desired value is reached, press the “” key
to accept and save the new value. If the value is not saved before the time-out, the
will go back to the Programming Mode.
5.6.4. Set High Alarm
The high alarm setpoint is designated with an “H” displayed in the status bit and
the current high alarm value displayed next to it. To change the high alarm
setpoint, press the “” button during the 10-second countdown. If you do not
press “” during the 10-second countdown, the will return to the
Normal Operating Mode. If you initiate the high alarm option, the status bit will
start to flash and the high alarm setpoint can be changed by using the “”
and “” keys.
When the desired value is reached,
press the “” key to accept and save
the new value. If the value is not
saved before the time-out, the
will go back to the
Programming Mode.
5.6.5. 4-20 mA Analog Output
Range
The range of 4-20 mA analog output is
set to full range as factory default. For
full range values, see Appendix D. If
the user desires to change the output
scaling of the 4-20 mA analog signal,
they can do so.

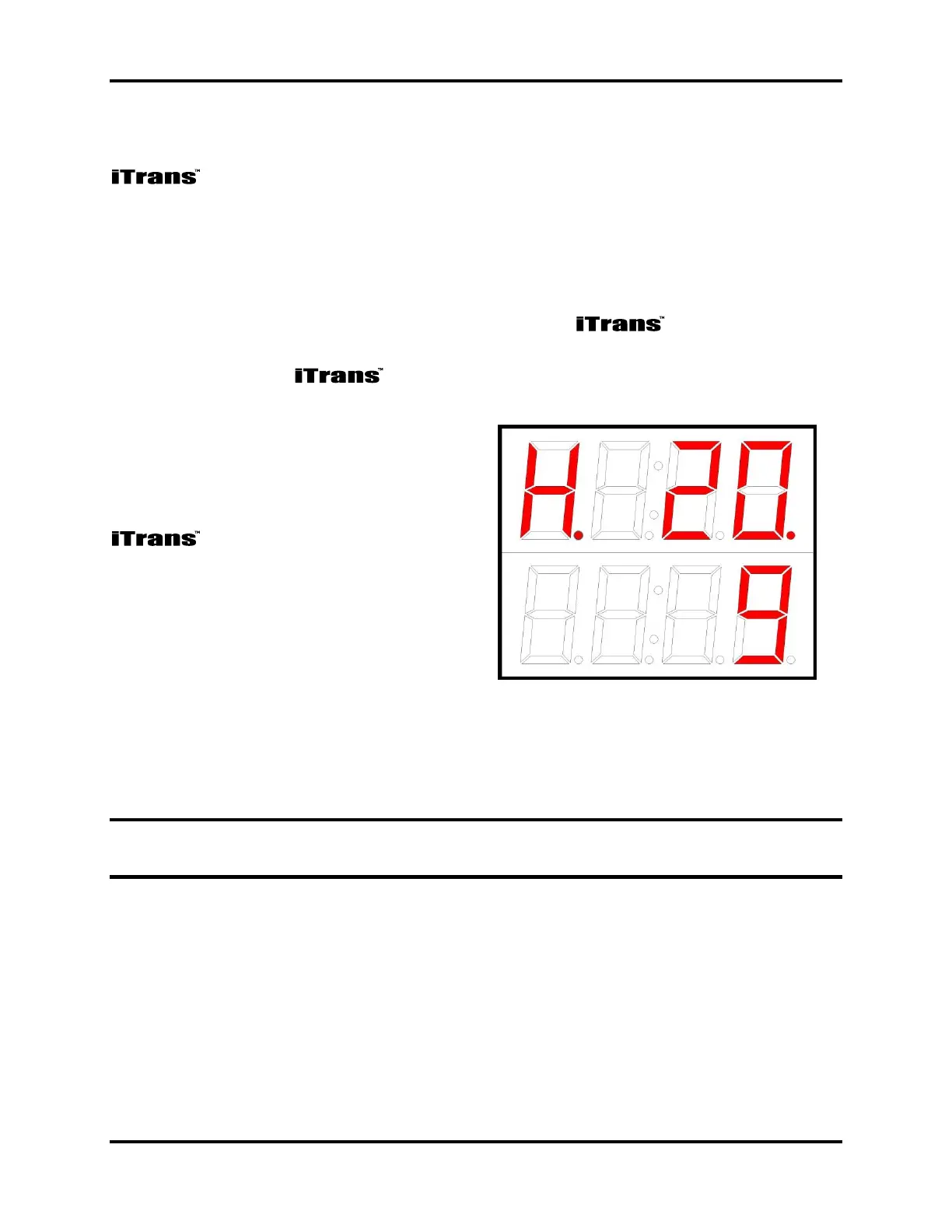

Figure 5-17. Sample High Alarm
Setpoint Display
NOTE: Only the upper end range can be changed. The low end is always set for
4 mA.
