Olivetti d-Copia 2000 Service Manual

2HA/2HB
1-5-21

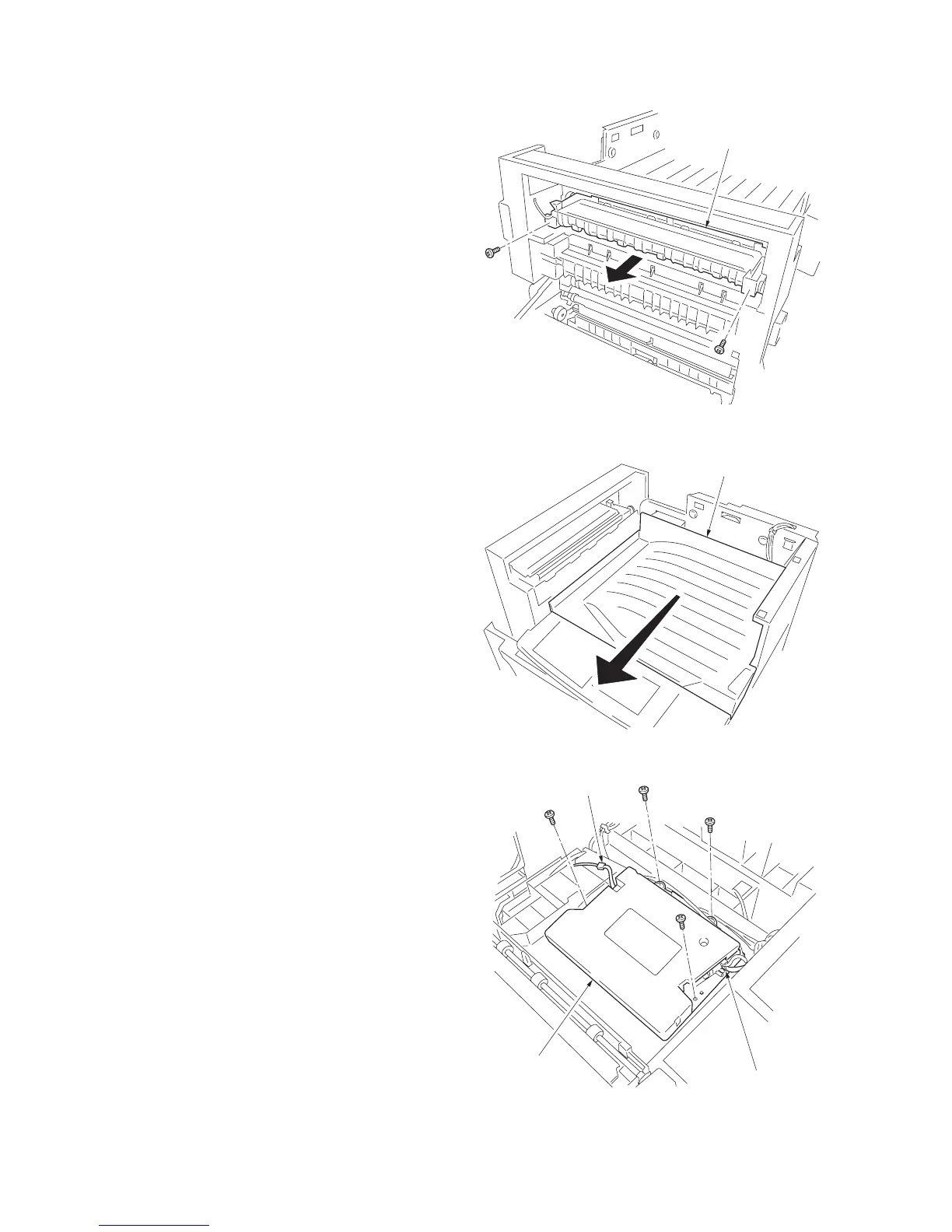

8. Remove the two screws holding the exit unit
and then pull out the unit a little.
Figure 1-5-46
9. Remove the exit tray.
Figure 1-5-47
10. Remove the four screws and detach the two
connector and then remove the laser scan-
ner unit.
11. Replace the laser scanner unit and refit all
the removed parts.
Figure 1-5-48
Exit unit
Exit tray
Laser scanner
unit
Connector
Connector
