Olivetti MB-502 - Page 10

Field Service Ver. 1.0 Jun. 2008 2. Other
MB-502
Maintenance

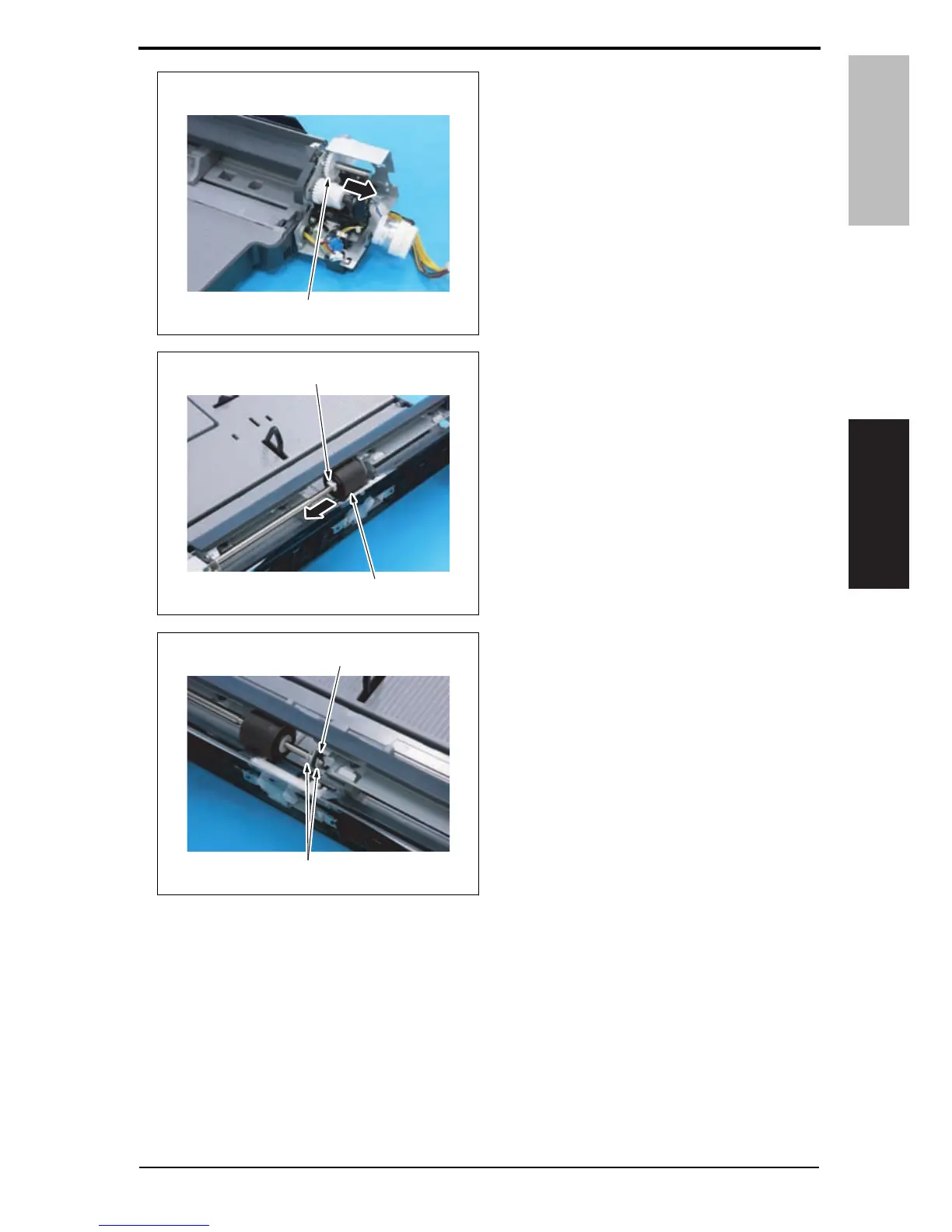

3. Remove the gear [1].
4. Snap off the C-clip [1] and slide the
manual bypass feed roller [2] in the
direction of the arrow.
5. Remove two C-lings [1] and the
bearingޓ[2].
A0EPF2C002DA
[1]
A0EPF2C003DA
[1]
[2]
A0EPF2C004DA
[1]
[2]
Y109730-6 Service Manual 5
