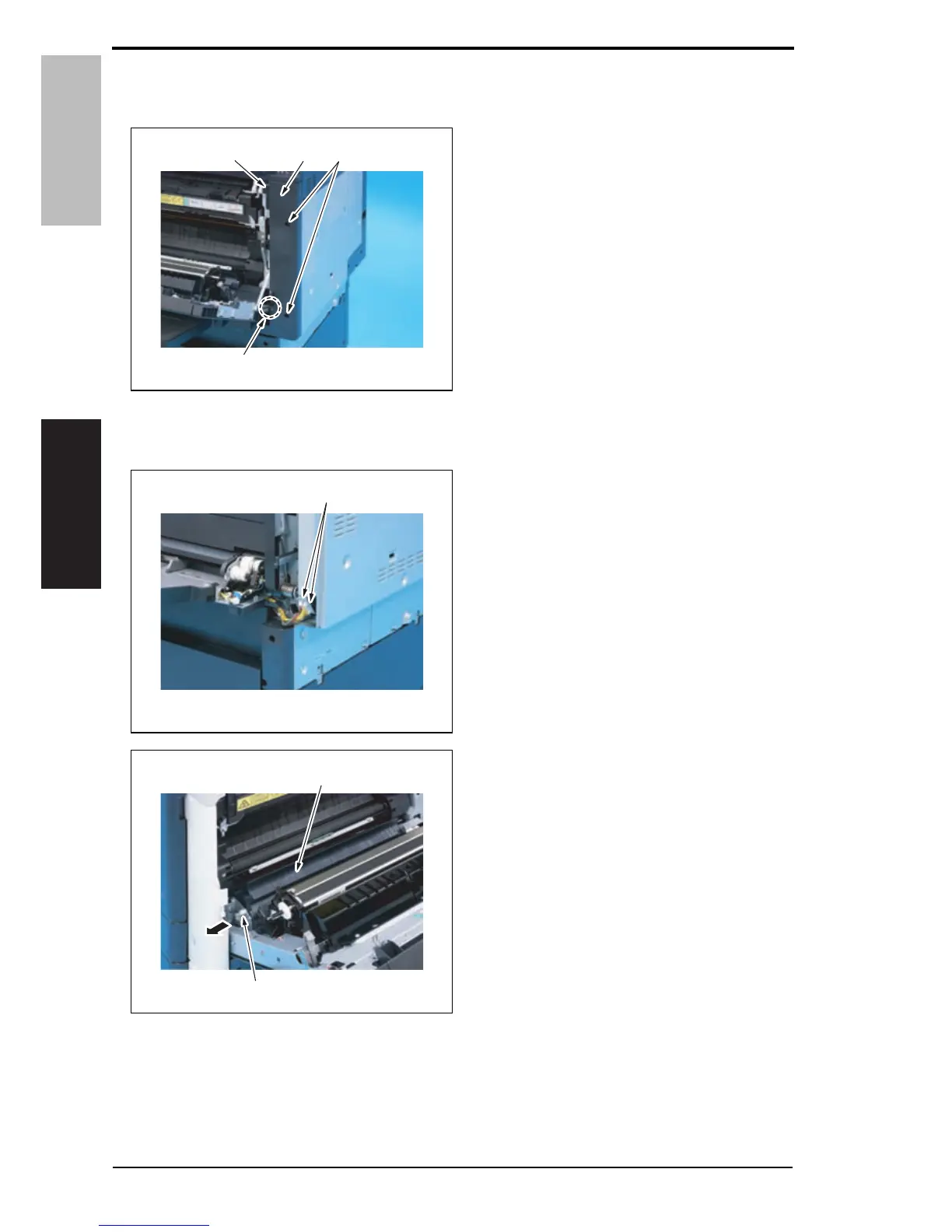

2.3.4 Manual bypass tray unit
1. Open the right door.
2. Remove four screws [1], and remove
the right rear cover [2] of the main
body.
3. Close the right door.
4. Remove the manual bypass tray right cover and manual bypass tray left cover.
See P.7
5. Disconnect two connectors [1].
6. Pull off the lever [1] and remove the
guide [2].
A0EPF2C010DA
[1]
[1] [2]
[1]
A0EPF2C011DA
[1]
A0EPF2C012DA
[1]
[2]
