2. Other Field Service Ver. 1.0 Jun. 2008
MB-502
Maintenance
2.2 Disassembly/Assembly/Cleaning list (other parts)
2.2.1 Disassembly/Assembly parts list
2.2.2 Cleaning parts list
2.3 Disassembly/Assembly procedure
2.3.1 Manual bypass tray feed roller
1. Remove the manual bypass tray unit.
See P.8

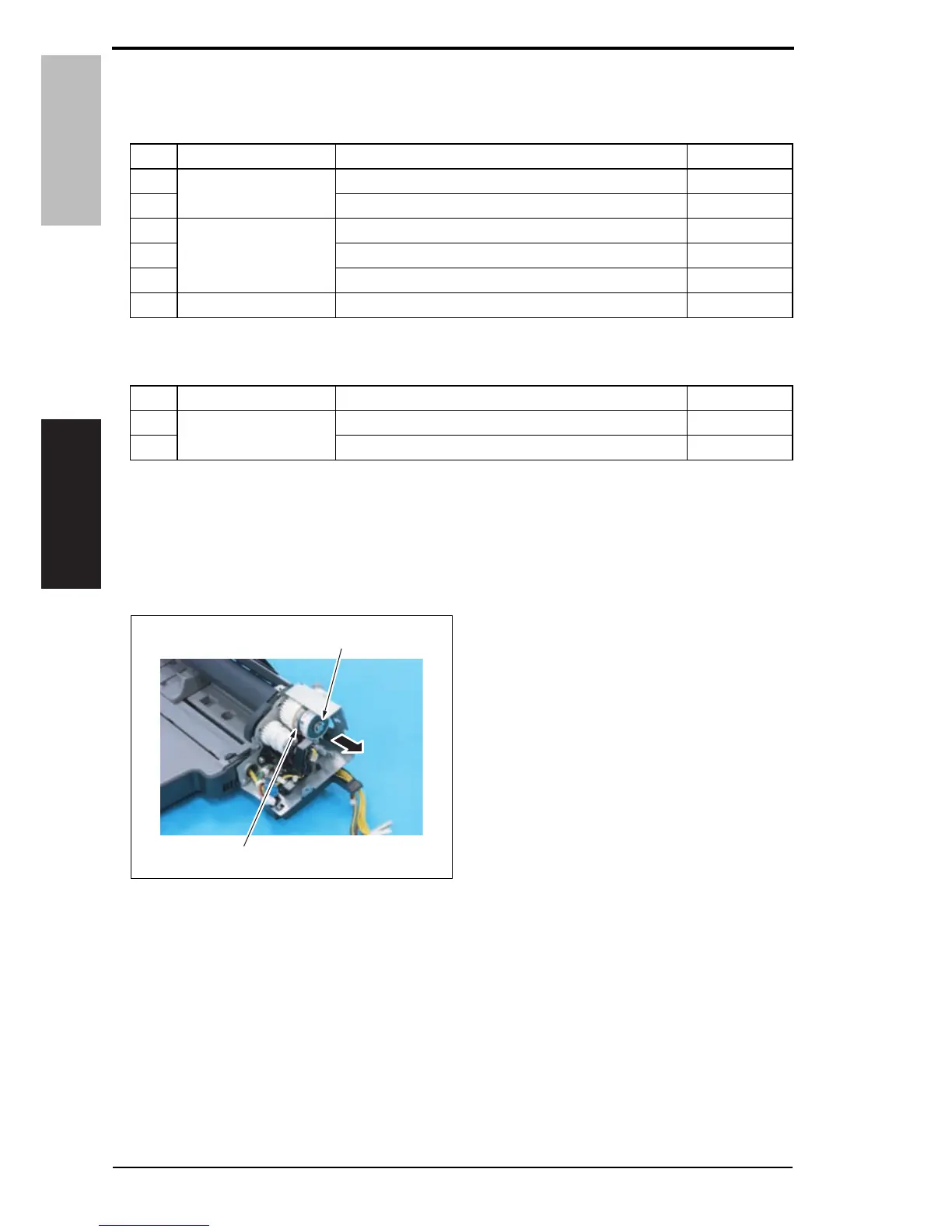

2. Remove the E-ring [1], and remove
the paper feed clutch [2].
No. Section Part name Ref. page
1
Rollers
Manual bypass tray feed roller P. 4
2 Manual bypass tray separation roller P. 6
3
Exterior parts
Manual bypass tray left cover P. 7
4 Manual bypass tray right cover P. 7
5 Manual bypass tray upper cover P. 7
6 Unit Manual bypass tray unit P. 8
No. Section Part name Ref. page
1
Feed section
Manual bypass tray feed roller P. 1 0
2 Manual bypass tray separation roller P. 1 0
A0EPF2C001DA
[2]
[1]
4 Service Manual Y109730-6
