Olivetti MB-502 - 2.3.2 Manual bypass tray separation roller

2. Other Field Service Ver. 1.0 Jun. 2008
MB-502
Maintenance

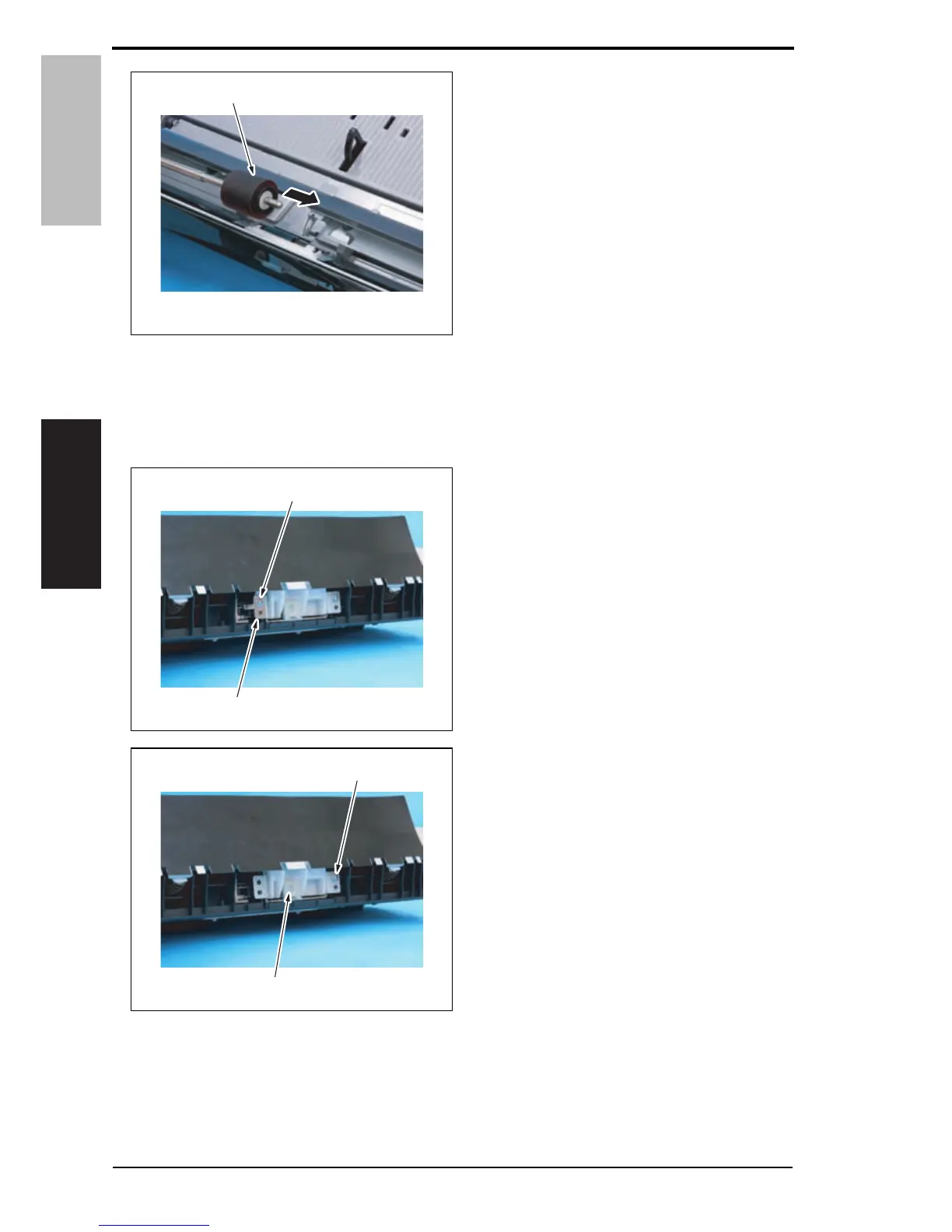

6. Remove the manual bypass tray feed
roller [1].
7. To reinstall, reverse the order of removal.
2.3.2 Manual bypass tray separation roller
1. Remove the manual bypass tray unit.
See P.8
2. Remove the screw [1], and remove
the ground terminal [2].
3. Remove the screw [1], and remove
the manual bypass tray separation
roller assy [2].
A0EPF2C005DA
[1]
A0EPF2C006DA
[1]
[2]
A0EPF2C007DA
[1]
[2]
6 Service Manual Y109730-6
