Olivetti MB-502 - 2.3.3 Manual bypass tray left cover; Manual bypass tray right cover; Manual bypass tray upper cover

Field Service Ver. 1.0 Jun. 2008 2. Other
MB-502
Maintenance

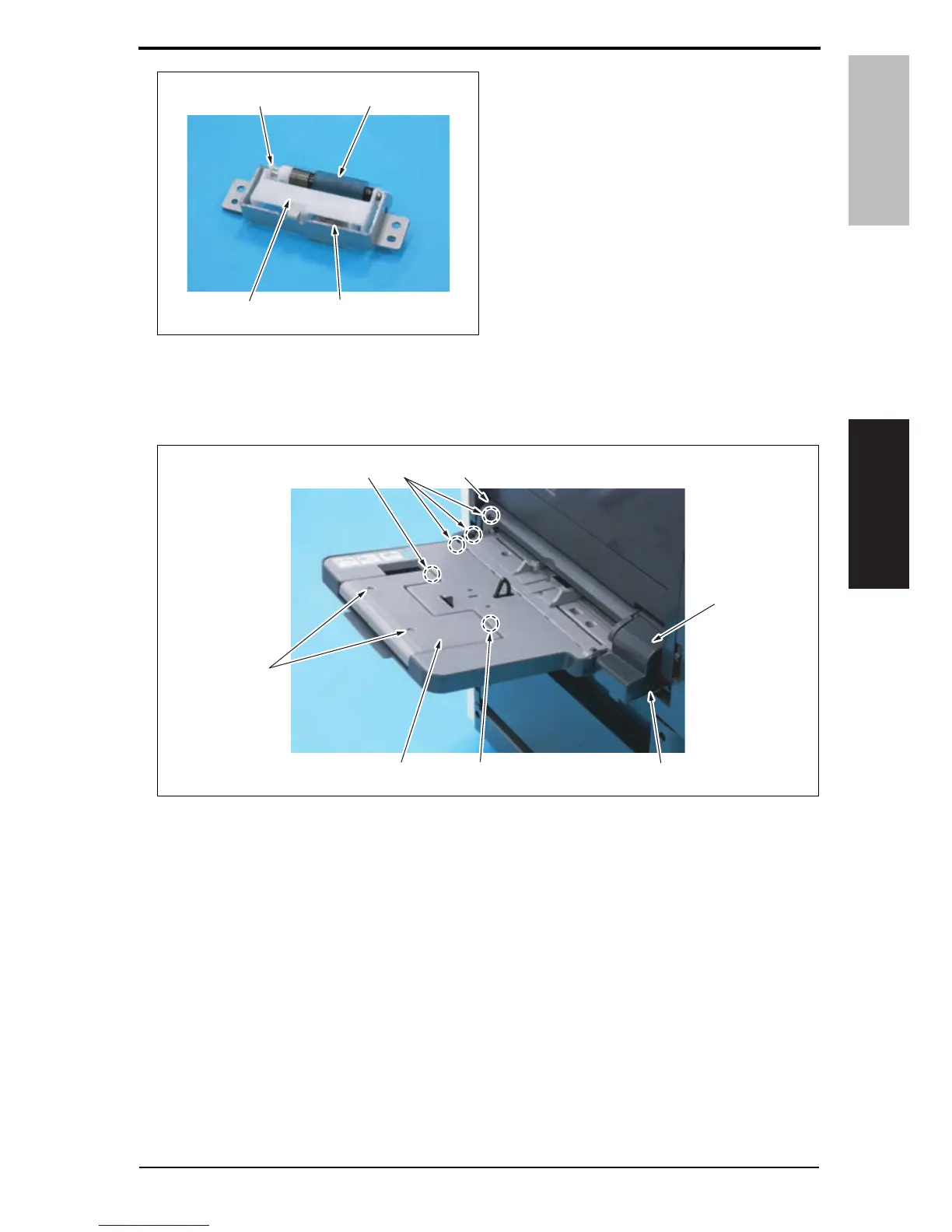

4. Snap off the C-ling [1], and remove
the spring [2] and the guide plate [3].
Remove the manual bypass tray
separation roller [4].
5. To reinstall, reverse the order of removal.
2.3.3 Manual bypass tray left cover / Manual bypass tray right cover / Manual
bypass tray upper cover
1. Unhook three tabs [1], and remove the manual bypass tray left cover [2].
2. Remove the screw [3], and remove the manual bypass tray right cover [4].
3. Remove two screws [5] and unhook two tabs [6], and remove the manual bypass tray
upper cover [7].
A0EPF2C008DA
[3]
[1] [4]
[2]
A0EPF2C009DA
[5]
[6] [1] [2]
[6]
[3]
[4]
[7]
Y109730-6 Service Manual 7
