2.4 Cleaning procedure
NOTE
• The alcohol described in the cleaning procedure represents the isopropyl alcohol.
2.4.1 Manual bypass tray feed roller
1. Remove the manual bypass tray unit.
See P.8
2. Using a cleaning pad dampened with
alcohol, wipe the manual bypass tray
feed roller [1] clean of dirt.
2.4.2 Manual bypass tray separation roller
1. Remove the manual bypass tray unit.
See P.8
2. Remove the manual bypass tray separation roller assy.
See the procedures 1 to 3 in P.6 “Manual bypass tray separation roller.”
3. Using a cleaning pad dampened with
alcohol, wipe the manual bypass tray
separation roller [1] clean of dirt.

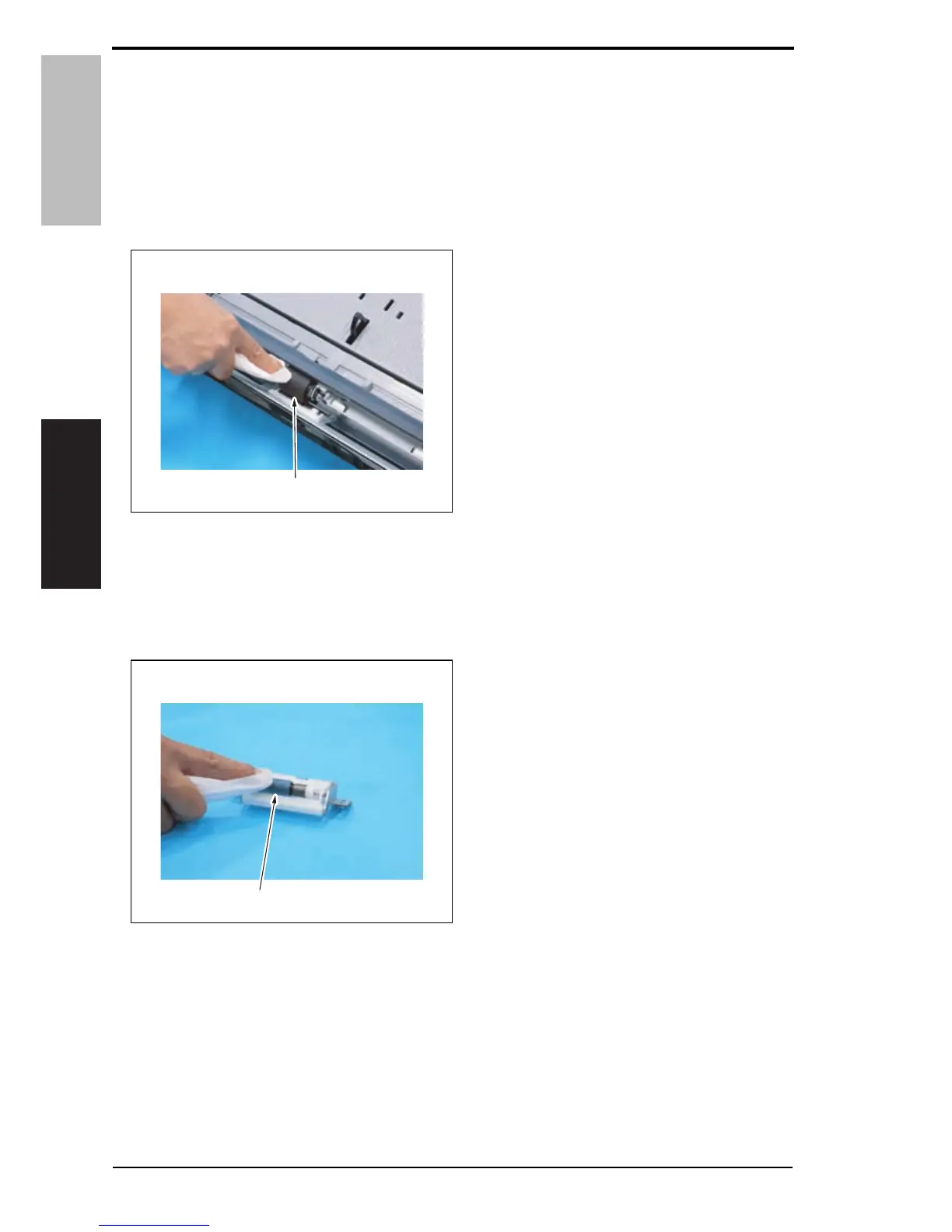

A0EPF2C016DA
[1]
A02EPF2C017DA
[1]
