40

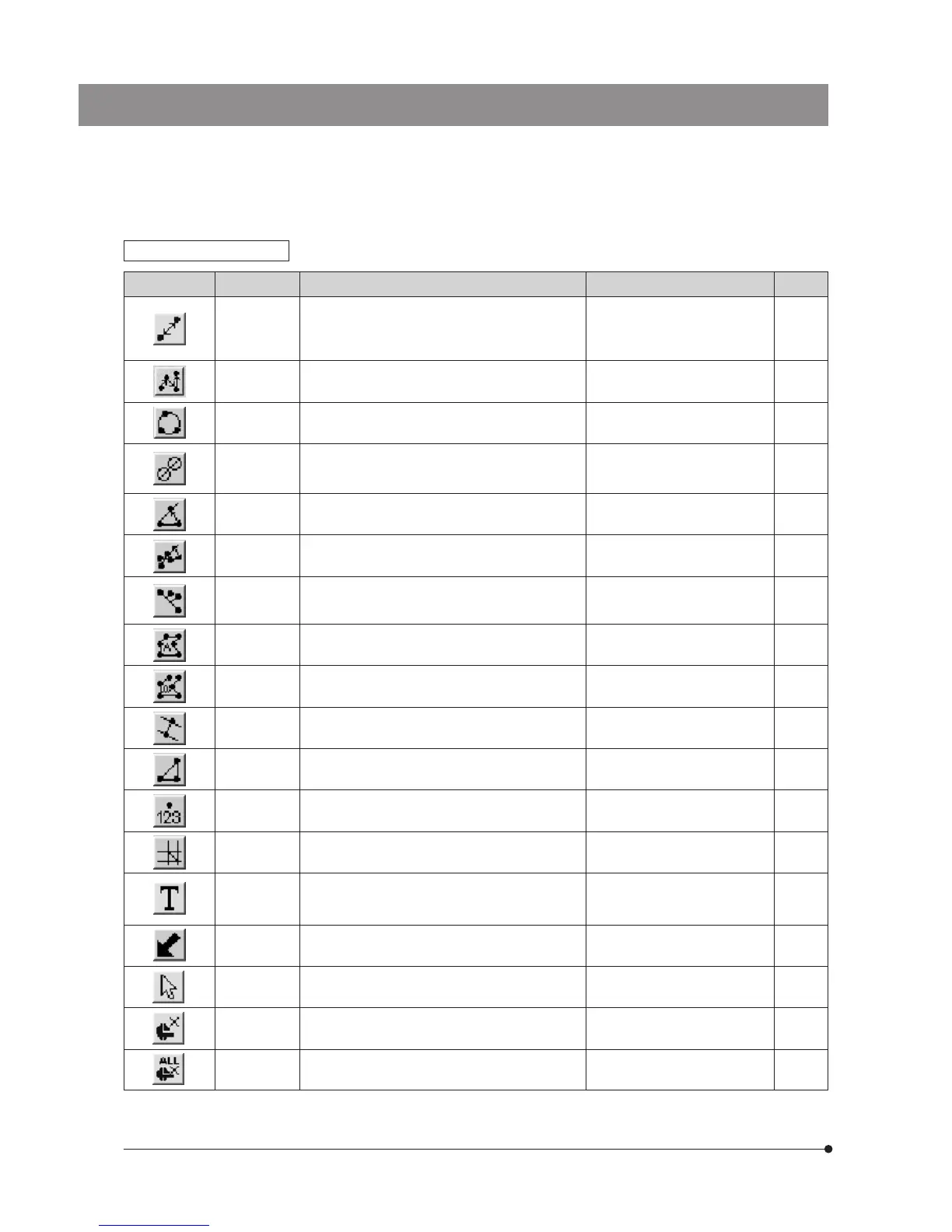

Measurement function list
Icon Function Outline Remark (Restrictions) Page
Distance of
2 points
Measures the distance between 2 specified points. A total of 20 measurements are
possible per image including the
functions in the range from “Dis-
tance” to “XY Distances.”
3 Points Circle Draws a circle (based on 3 specified points) and
measures its diameter and area.
Distance be-
tween 2 Circle
Centers
Draws 2 circles and measures the distance be-
tween their centers.
3 Points Angle Draws an angle based on 3 specified points and
measures it.
4 Points Angle Draws 2 lines based on 4 specified points and
measures the angle formed at their intersection.
Perpendiculars
Draws a reference line, draws a line segment per-
pendicular to the reference line and measures the
length of the perpendicular line.
Polygon Area Draws a polygon and measures its area.
Boundary
Length
Draws a polygon and measures the total length of
its sides.
Up to 100 corners can be speci-
fied per polygon.
Up to 100 corners can be speci-
fied per polygon.
Up to 10 perpendicular lines can
be drawn from the reference line.
Distance of
Parallel Lines
Draws 2 parallel lines and measures the distance
between them.
XY Distance Specifies 2 points and measures the XY distances
and R distance between them.
Count Draws markings on the screen. Up to 50 points can be counted.
Cross Line Specifies 1 point and measures the distance be-
tween the image center (origin point) and it.
Text A text can be inserted.
Arrow An arrow can be inserted.
Max. 32 characters can be entered.
This function is unavailable unless
the keyboard is connected.
p. 41
p. 41
p. 42
p. 42
p. 43
p. 43
p. 44
p. 44
p. 45
p. 45
p. 46
p. 46
p. 47
p. 47
Select
Selects one of the displayed measurement results.
Erase
Erases the selected measurement result.
Erase All
Erases all of the displayed measurement results.
p. 47
p. 47
p. 48
Poly-Line Measures the total sum of the distances between
multiple specified points.
Up to 100 points can be specified
per measurement.
p. 41
