45
SAL System

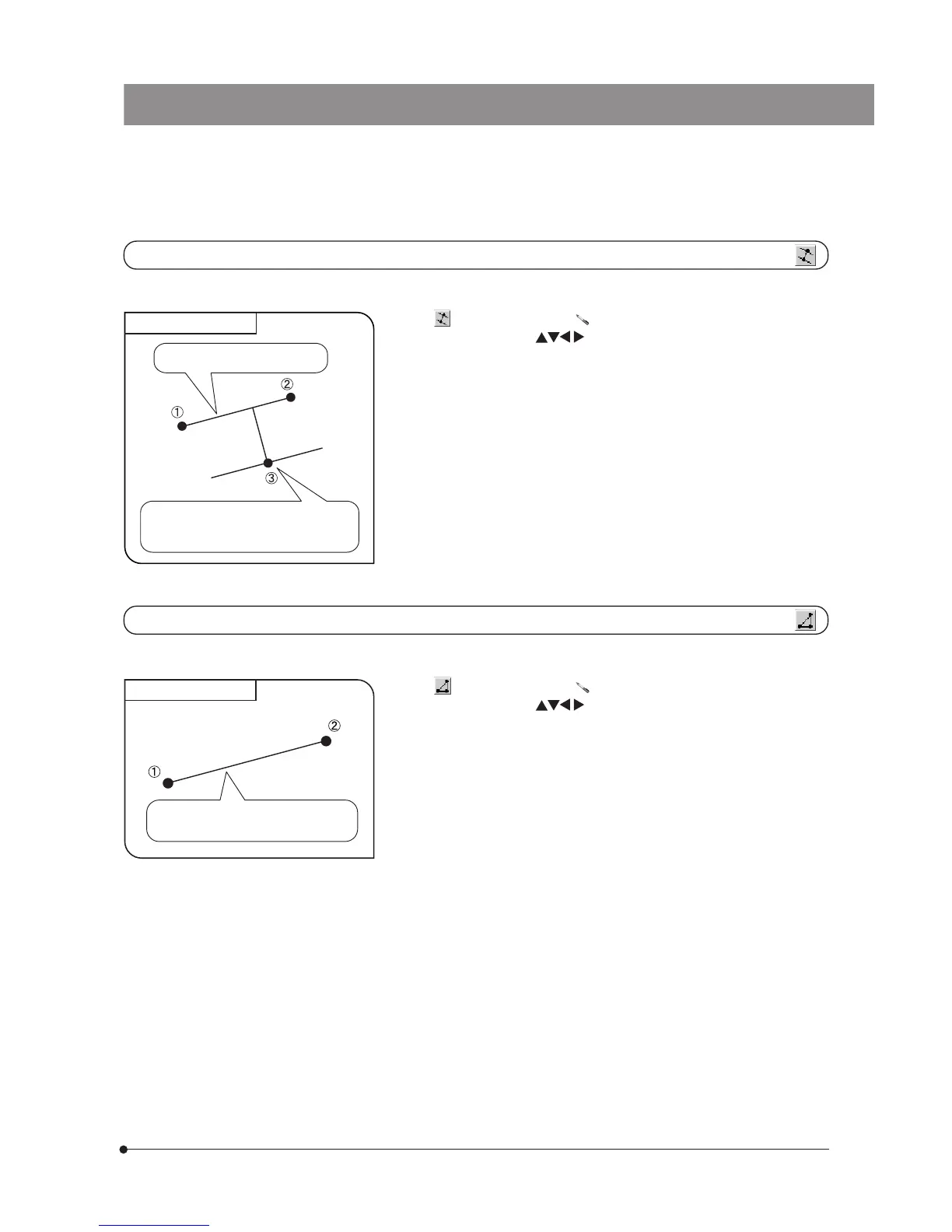

Distance of Parallel Lines
Measurement target
The line connecting 1-2 is drawn.
A parallel line passing 3 is drawn and the
distance between two lines is displayed.
The drawn parallel line has the same
length as line 1-2.
This function draws a couple of parallel lines and measures the distance between them.
1. When
is selected, pointer “ ” is displayed. The pointer can be moved
using the cursor buttons
or the mouse.
2. Press the SHIFT button (or left-click the mouse if this is in use) on the points
desired for the measurement. If you want to measure the distance of another
parallel line, press the SHIFT button on the desired point.
3. To end measurement, press the SET/OK button or MENU button (if you are
using the mouse, right-click it or left-click it on [END (MENU)] at the top right of
the screen).
XY Distance
Measurement target
The line connecting @ and 2 is drawn and
the X-distance, Y-distance and L-distance
between the 2 points are displayed.
This function measures the X-distance, Y-distance and L-distance between the 2 specified points.
1. When is selected, pointer “ ” is displayed. The pointer can be moved
using the cursor buttons or the mouse.
2. Press the SHIFT button (or left-click the mouse if this is in use) on the points
desired for the measurement. If you want to perform another XY distances mea-
surement, press the SHIFT button on the desired points.
3. To end measurement, press the SET/OK button or MENU button (if you are
using the mouse, right-click it or left-click it on [END (MENU)] at the top right of
the screen).
