ALLACCIAMENTOIMPIANTOELETTRICO
I
ATTENZIONE
Leoperazionisottoelencatedevonoessereese
-
guitedapersonalequalificato.
1)Primadelcollegamentoelettricoverificareche:
·
l’impiantodialimentazionealsollevatoresiadotatodelleprote-
zioniprevistedallenormevigentinelpaeseincuivieneinstalla
-
to.
·
lalineadialimentazioneabbialaseguentesezione:
Tensionesollevatore400Vtrifase:............minimo2,5mm2
Tensionesollevatore230Vtrifase:............minimo4mm2
Tensionesollevatore230Vmonofase:......minimo6mm2
·
leoscillazioniditensionerientrinonelcampoditolleranzaprevi
-
stodallespecifiche.
Prevedereprotezioneda10Aperfunzionamentotrifasee16A
perfunzionamentomonofase.
2)Eseguirel’allacciamentodipotenzaedicomandoallamorsettie
-
radelquadrocomeindicatoinfig.47rif.“A”,inserendoilcavonella
cassettapassandodalforopredispostoeseguendoloschema
dell’impiantoelettricocomenellepagine10o11.

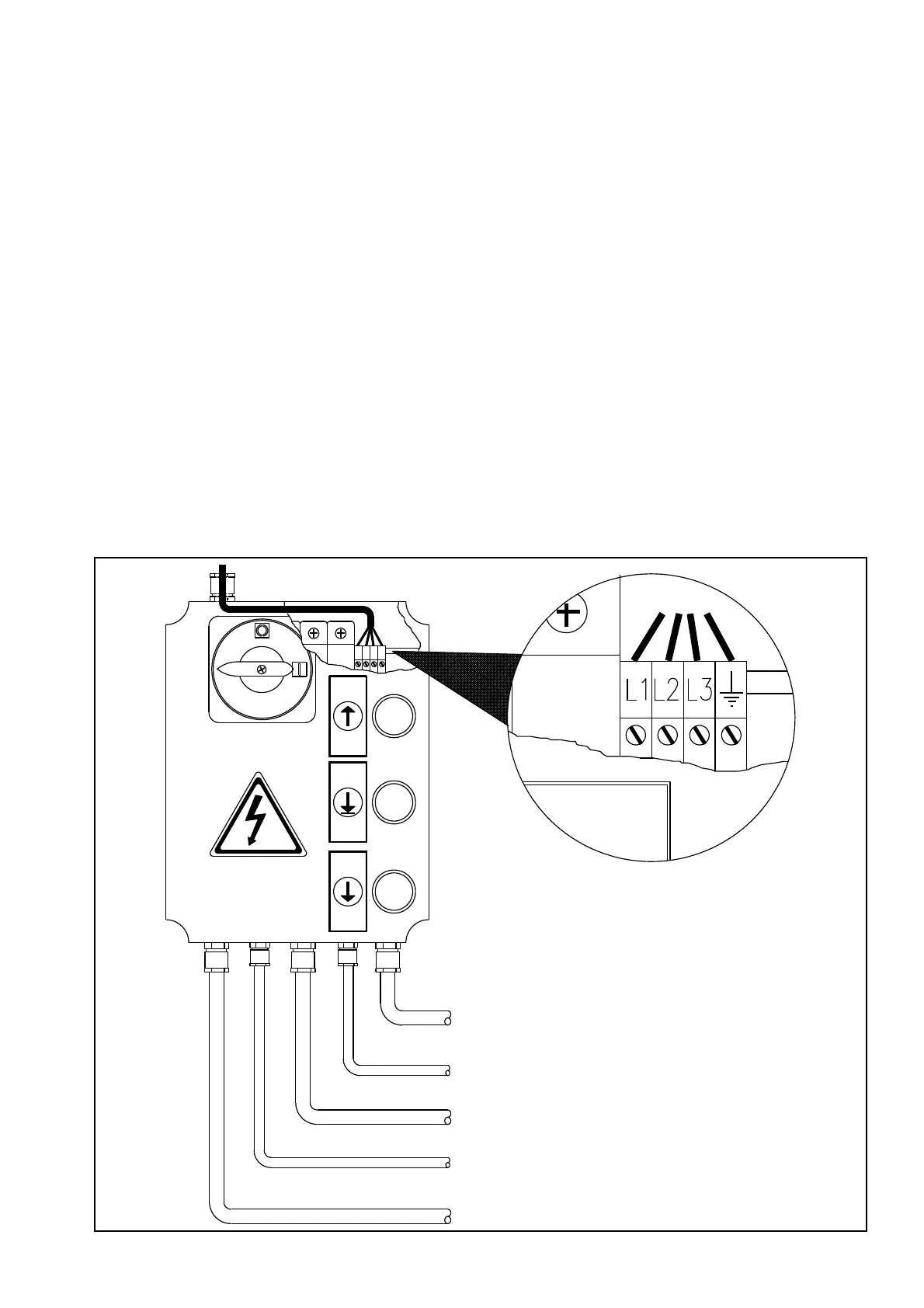

Fig.47 Collegamentielettricidelquadro
ELECTRICPLANTCONNECTION
I
WARNING
Theoperationslistedbelowmustbeperformed
byskilledpersonnel.
1)Beforeconnectingtheelectricsystem,makesurethat:
·
thepowersupplyplanttotheliftisequippedwiththeprotection
devicesrequiredbycurrentstandardsinthecountrywherethe
machineryisinstalled.
·
thepowersupplylinehasthefollowingcross-section:
Liftvoltage400V,three-phase: .................minimum2.5mm2
Liftvoltage230V,three-phase: ................. minimum4mm2
Liftvoltage230V,single-phase: ................minimum6mm2
·
thevoltageoscillationsarewithinthetolerancerangesetforth
bythespecifications.
Provideprotectionfrom10Aforthree-phaseoperationand
16Aforsinge-phaseoperation.
2)Connectthepowerandcontrolsystemtotheterminalstripon
thecontrolboxasshowninfig.47ref.“A”,insertingthecableinto
therackpassingthroughthepreparedholeandfollowingthewi
-
ringdiagramonpages10or11.
Fig.47 Controlboxelectricconnections
25
Sensorefune-Cablesensor
Finecorsadisalita-Liftlimitswitch
Elettromagnete-Electromagnet
Elettrovalvola-Solenoidvalve
Motore-Motor
“A”
