2-4 Installation Instructions
Setup
External Return Bin Installation and Service Guide/67-2038 Rev D © 2011 Omnicell, Inc.
b. Disconnect the yellow solenoid cable for convenience.

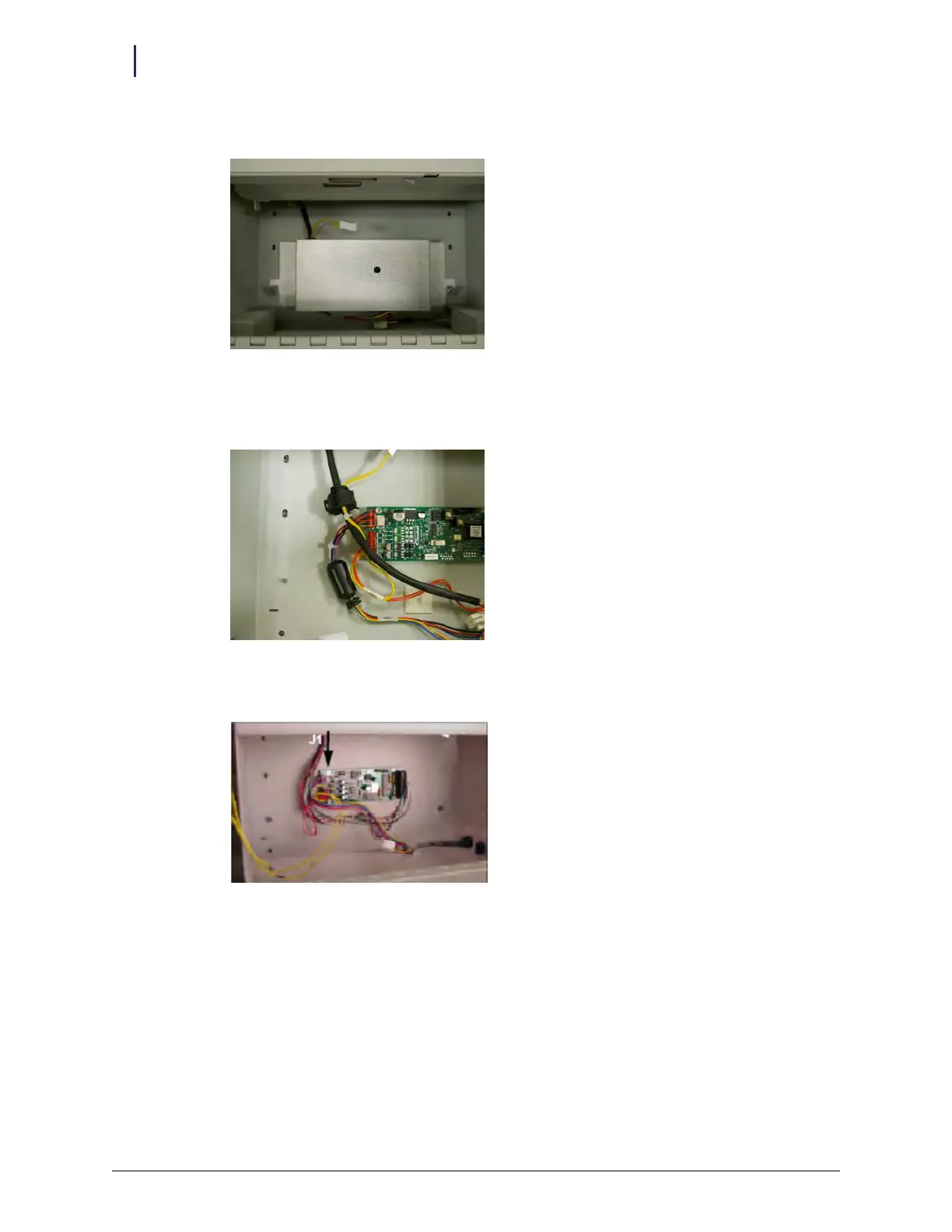

Figure 2-8. Disconnecting solenoid cable
c. Lift the RFI cover off the two studs. Slide the wiring rubber grommets down the two
keyhole slots and remove the RFI cover completely.
Figure 2-9. PC board with RFI cover removed
7. Unplug the PowerCom cable from J1 on the PC board.
Figure 2-10. J1 location on the PC board
