© 2011 Omnicell, Inc. External Return Bin Installation and Service Guide/67-2038 Rev D
Installation Instructions 2-3
Setup
c. Loosen, but do not remove, the two nuts on either side of the PCB/solenoid plate with a
5/16" nut driver.

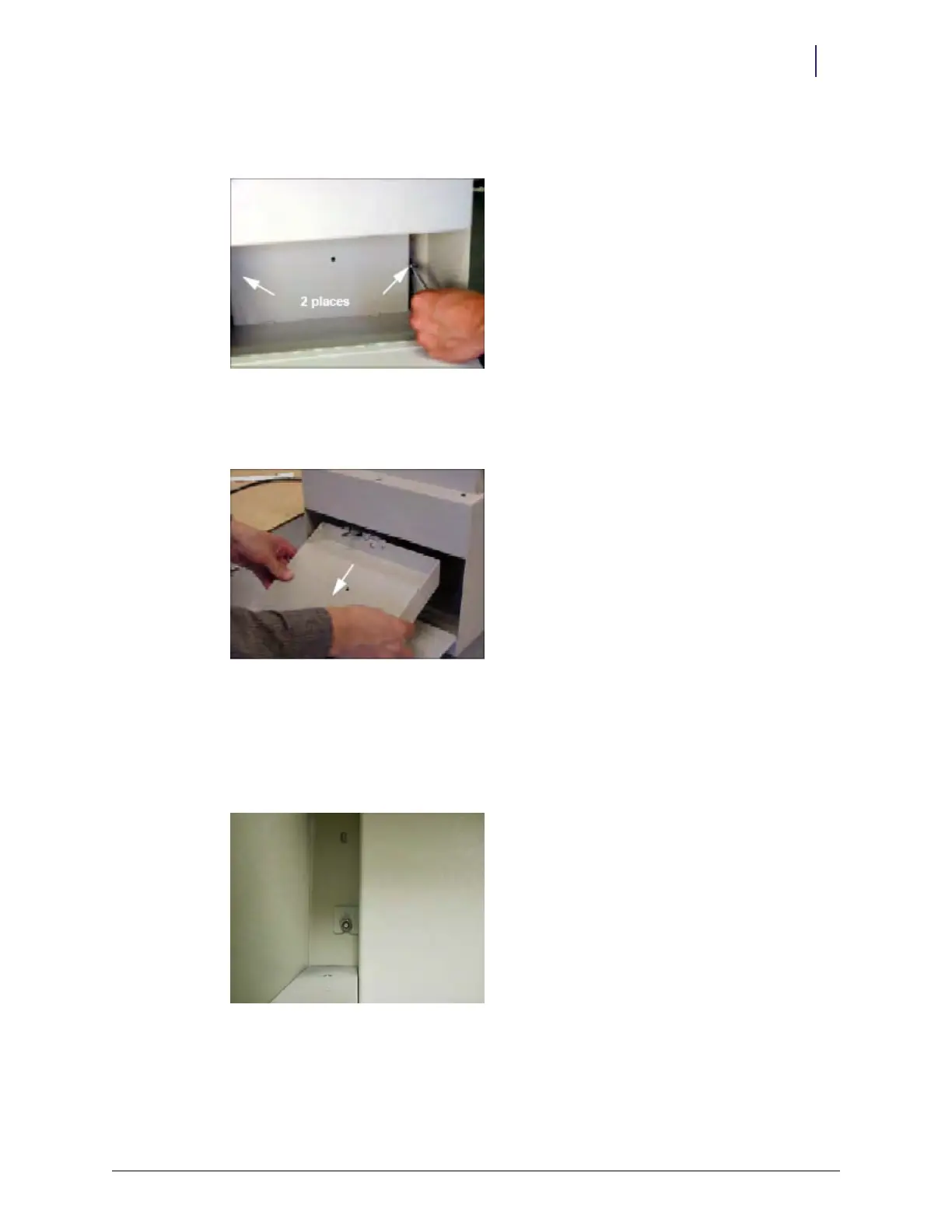

Figure 2-5. Loosening the nuts on both sides of the PCB/solenoid plate
d. Maneuver the PCB/solenoid mount around the sheet metal tabs and nuts. Remove the
lower rim first.
Figure 2-6. Removing the PCB/solenoid mount
Under the PCB/solenoid mount is an internal cover to reduce the radiated emissions level.
6. Remove the RFI cover that is under the PCB/solenoid mount.
a. Loosen the two hex nuts on either side of the internal cover using a 5/16” nut driver or
socket.
Figure 2-7. Loosening hex nuts
