2-2 Installation Instructions
Setup
External Return Bin Installation and Service Guide/67-2038 Rev D © 2011 Omnicell, Inc.

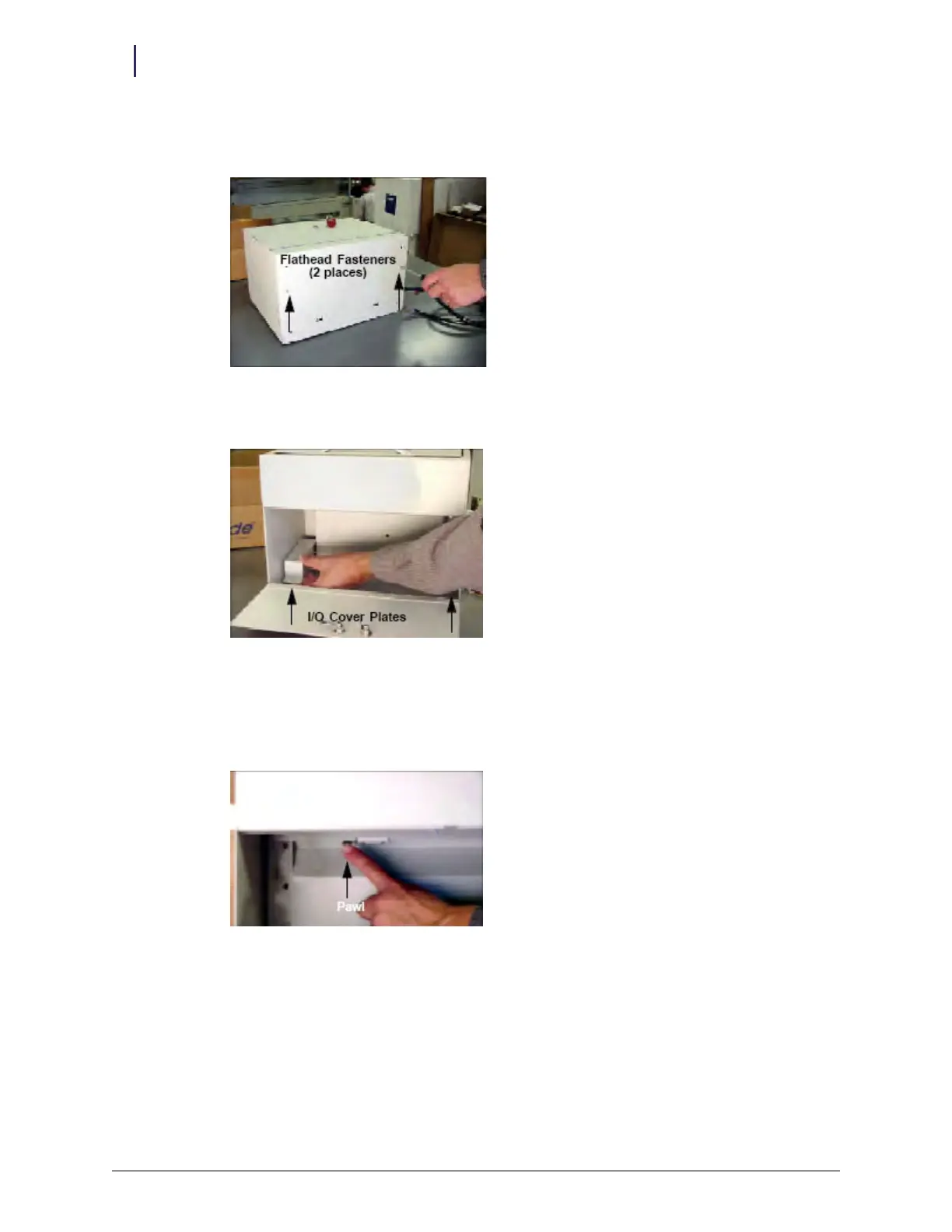

3. Lay the ERB down as shown in Figure 2-2, and unscrew the two 4-40 flat head fasteners from
under the ERB.
Figure 2-2. Unscrewing the fasteners
4. Turn the ERB upright and lift out both I/O cover plates.
Figure 2-3. Removing the I/O cover plates
5. Remove the PCB/solenoid metal mount.
a. Open the return door.
b. Push the pawl of the solenoid to the left.
Figure 2-4. Pushing the pawl
