2-36 Installation Instructions
Installation on G3 Cabinets
External Return Bin Installation and Service Guide/67-2038 Rev D © 2011 Omnicell, Inc.

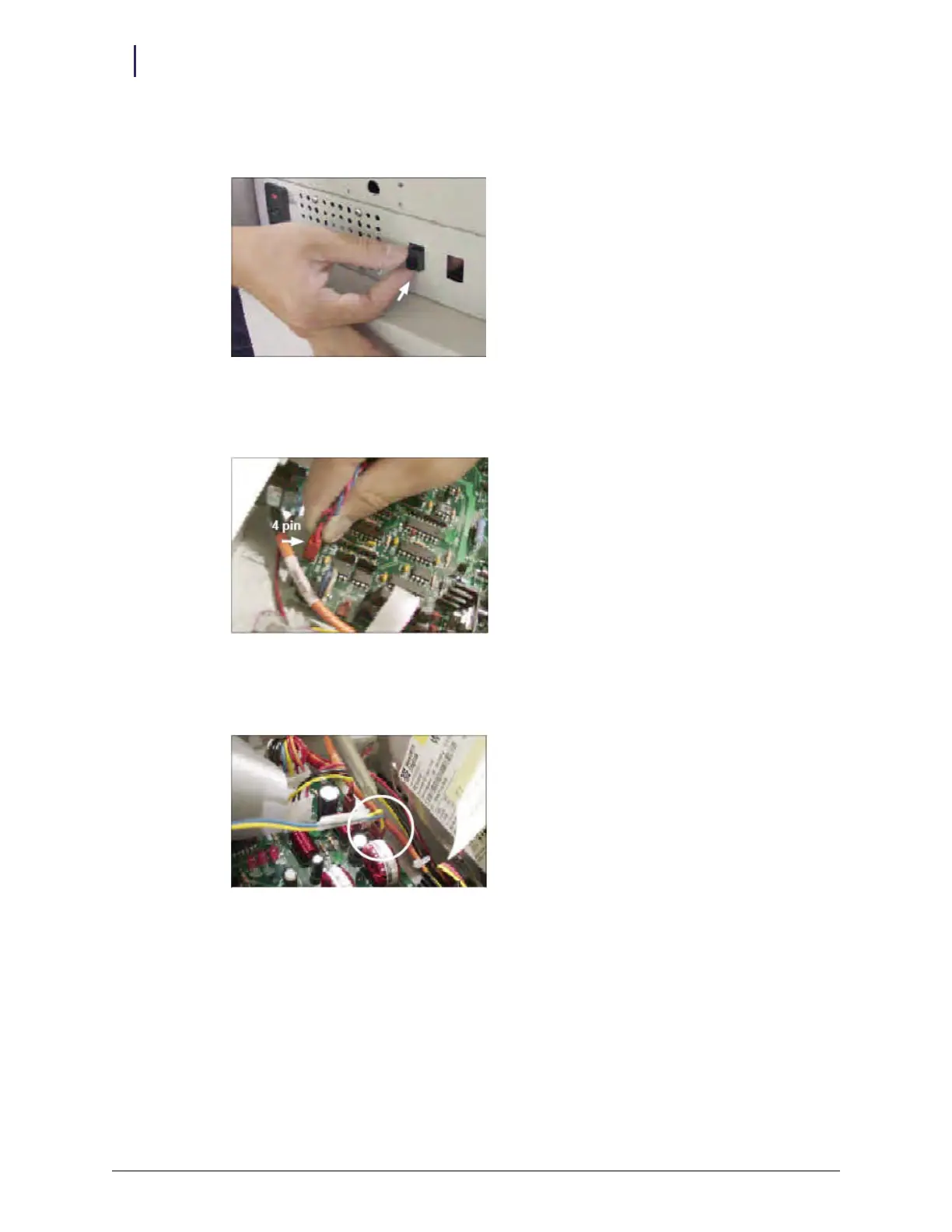

7. Insert the black AUX connector from the ERB retrofit cable assembly (#42-7052) into the first
opening.
Figure 2-97. Inserting the AUX connector from ERB cable assembly
8. Plug in the 4-pin header connector on the retrofit AUX cable assembly into J24 (labeled AUX)
on the PowerCom board.
Figure 2-98. Plugging in 4-pin connector
9. Plug in the 3-pin connector with the blue and yellow cables on the retrofit AUX cable assembly
into J16 (labeled MAG) on the PowerCom board.
Figure 2-99. 3-pin connector location
