Installation Instructions 2-37
Installation on G3 Cabinets
10. Thread the ERB cable connector (white) through the second AUX opening.

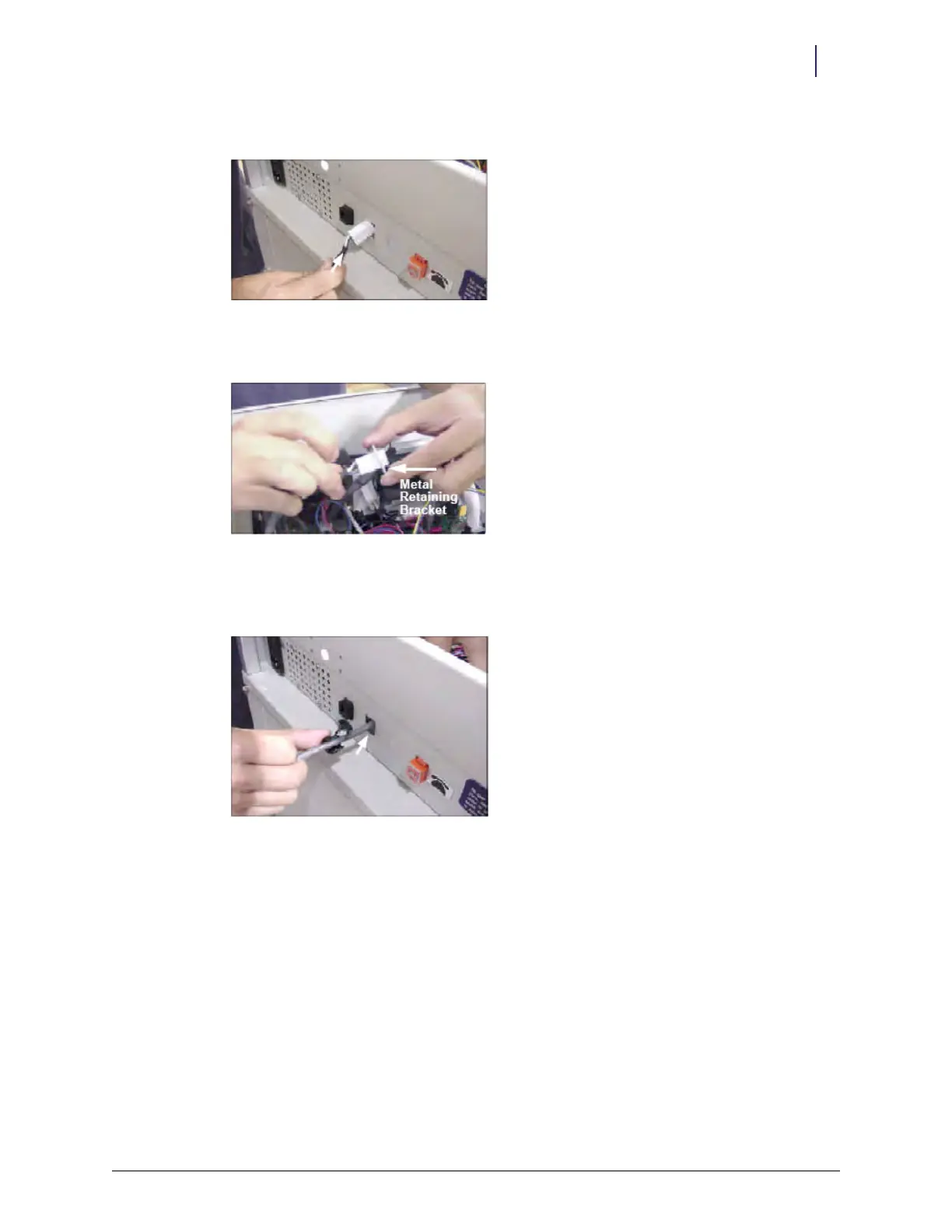

Figure 2-100. Threading the ERB cable
11. Slip the metal retaining bracket over the white connector, pulling it down the cable.
Figure 2-101. Slipping on the retaining bracket
12. Snap on the black grommet over the ERB cable, then push it half-way through the second AUX
opening.
Figure 2-102. Snapping on the grommet
