2-38 Installation Instructions
Installation on G3 Cabinets
External Return Bin Installation and Service Guide/67-2038 Rev D © 2011 Omnicell, Inc.

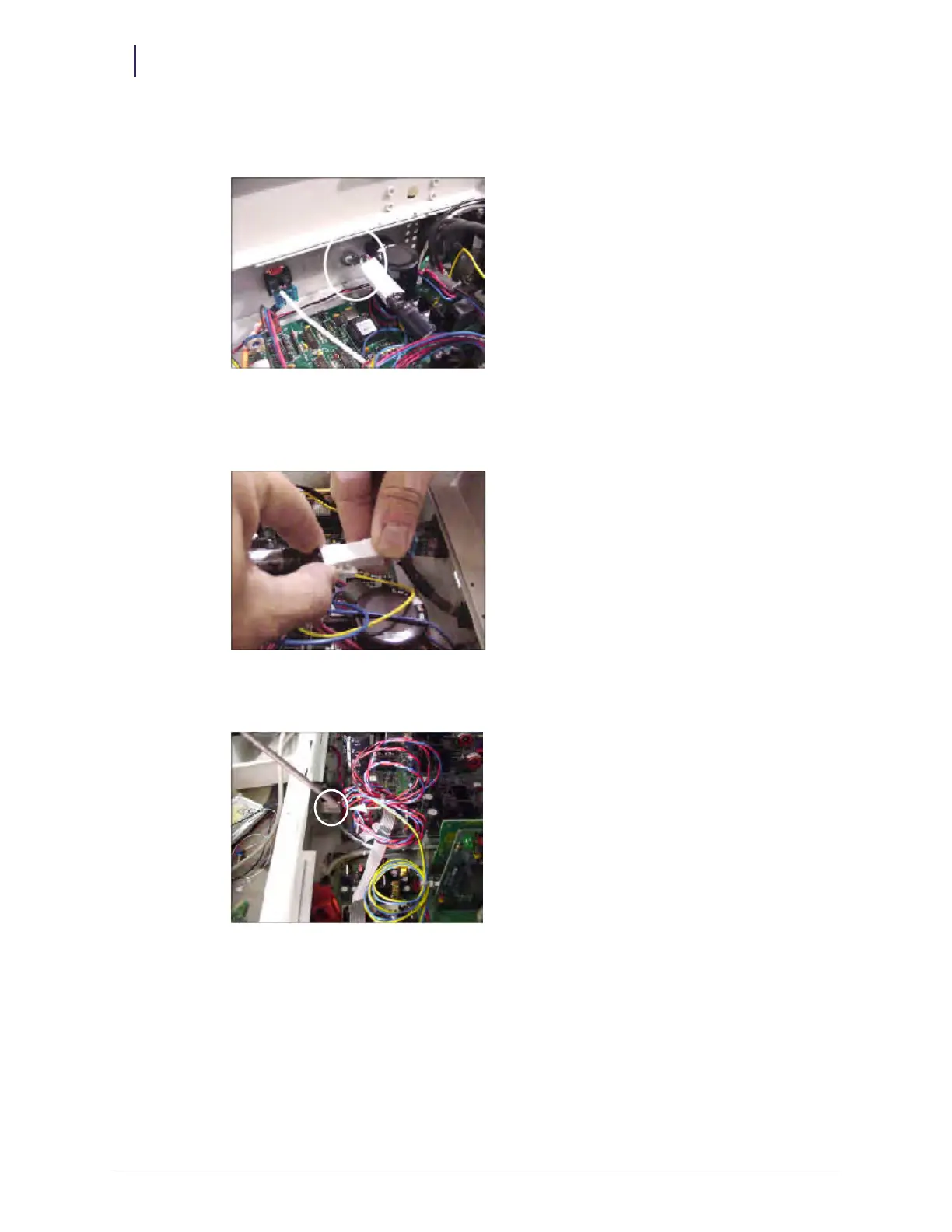

13. Snap the metal retainer in the grommet groove to secure the cable to the inside back of the
electronic sled.
Figure 2-103. Metal retainer snapped in place
14. Connect the ERB 6-pin female connector to the Molex mini-fit Jr. 6-pin connector on the
retrofit AUX cable assembly.
Figure 2-104. Connecting the 6-pin connector
15. Tuck all the cables out of the way. Use cable ties as needed.
Figure 2-105. Tied cables
