Omron 1S Series Startup Guide

70

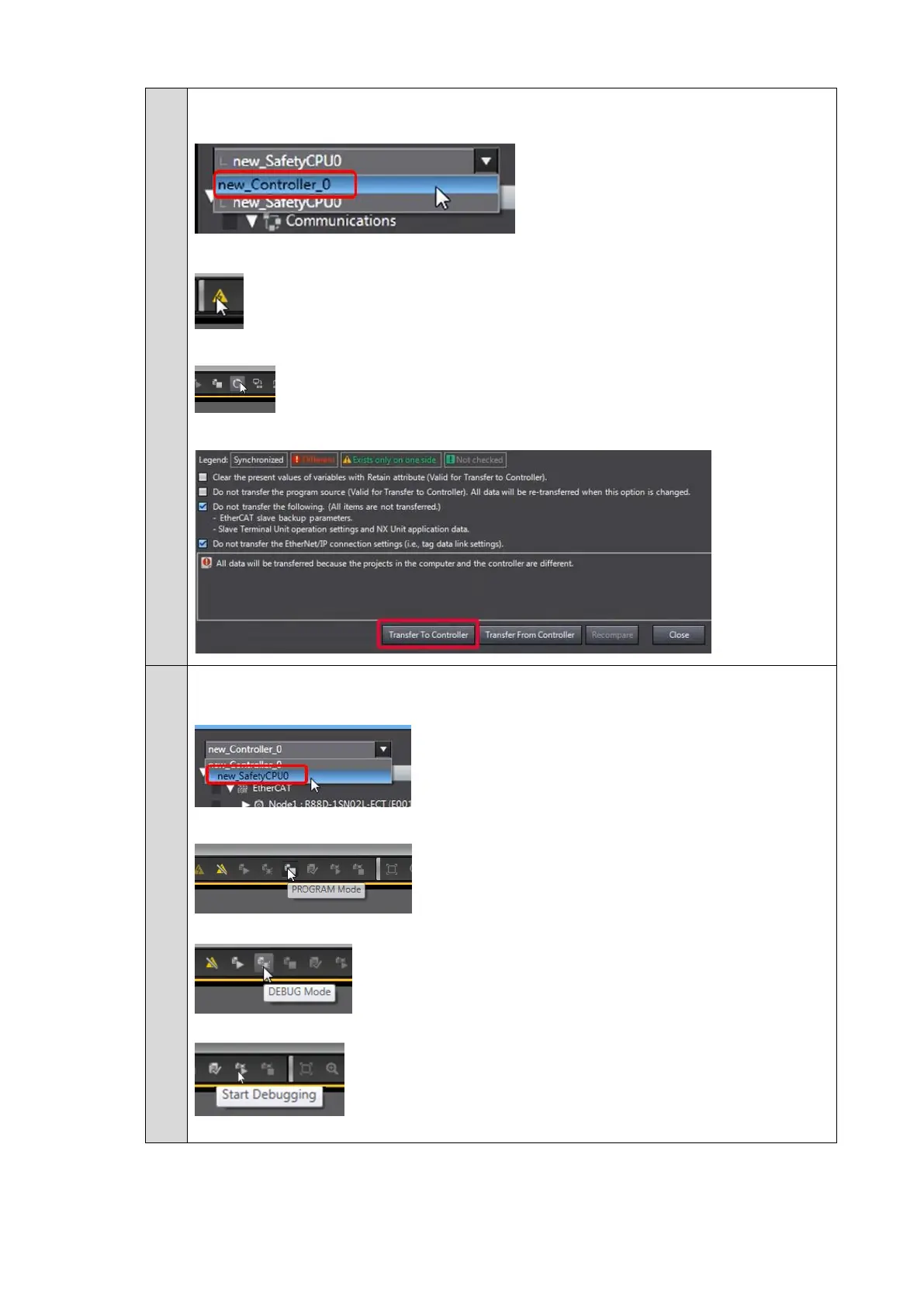

5.
Transfer to the standard controller.
Select new_Controller_0 from the list.
Connect to the standard controller.
Click the Synchronization Button to synchronize with the standard controller.
Transfer to the standard controller.
6.
Download the safety application.
Select new_SafetyCPU0 from the list.
Click the PROGRAM Mode Button to switch to PROGRAM mode.
Click the DEBUG Mode Button to enter DEBUG mode.
Click the Start Debugging Button to start DEBUG mode.

Omron 1S Series Specifications

General

Safety Function	STO (Safe Torque Off)
Motor Capacity	50 W to 15 kW
Output Power	50 W to 15 kW
Communication Interface	EtherCAT, MECHATROLINK-II/III
Feedback	Incremental Encoder
Operating Temperature	0 to +55°C
Protection Features	Overcurrent, Overvoltage
Ambient Humidity	20% to 90% RH (non-condensing)
Installation	Panel Mount
Weight	Varies by model
Storage Temperature	-20 to 85°C
