Omron 1S Series Startup Guide

90
3.

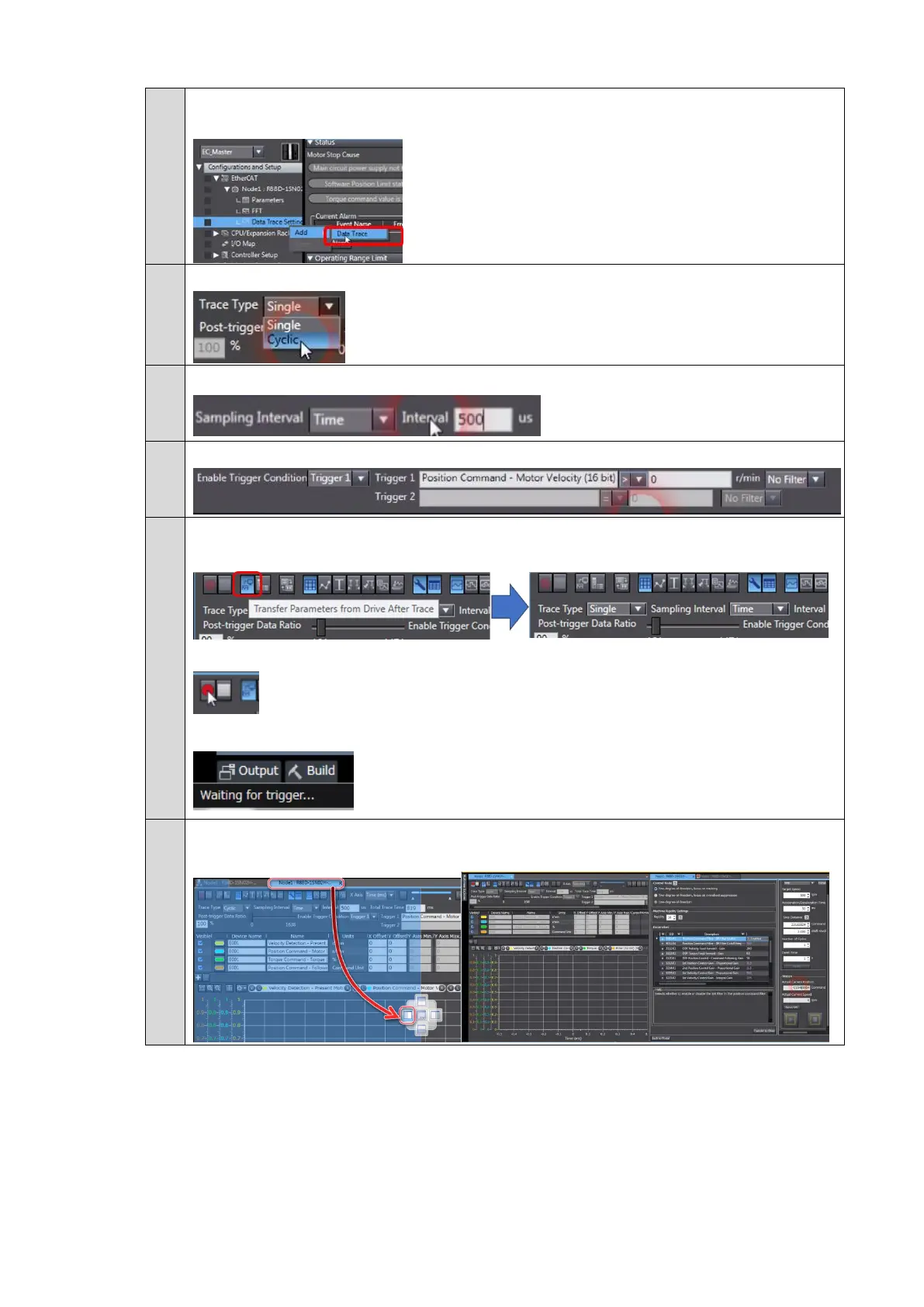

In order to check the behavior of the Servomotor, right-click Data Trace Settings
and select Add - Data Trace from the menu to add a new data trace.
4.
Select Cyclic for the trace type.
5.
Adjust the sampling interval.
6.
Adjust the enable trigger condition.
7.
Click the Transfer Parameters from Drive after Trace Button to disable uploading
parameters.
Click the Execute Button.
Sysmac Studio is now waiting for the trigger.
8.
Align the Test Run Window and the Data Trace Window horizontally by docking
them.

Omron 1S Series Specifications

General

Safety Function	STO (Safe Torque Off)
Motor Capacity	50 W to 15 kW
Output Power	50 W to 15 kW
Communication Interface	EtherCAT, MECHATROLINK-II/III
Feedback	Incremental Encoder
Operating Temperature	0 to +55°C
Protection Features	Overcurrent, Overvoltage
Ambient Humidity	20% to 90% RH (non-condensing)
Installation	Panel Mount
Weight	Varies by model
Storage Temperature	-20 to 85°C
