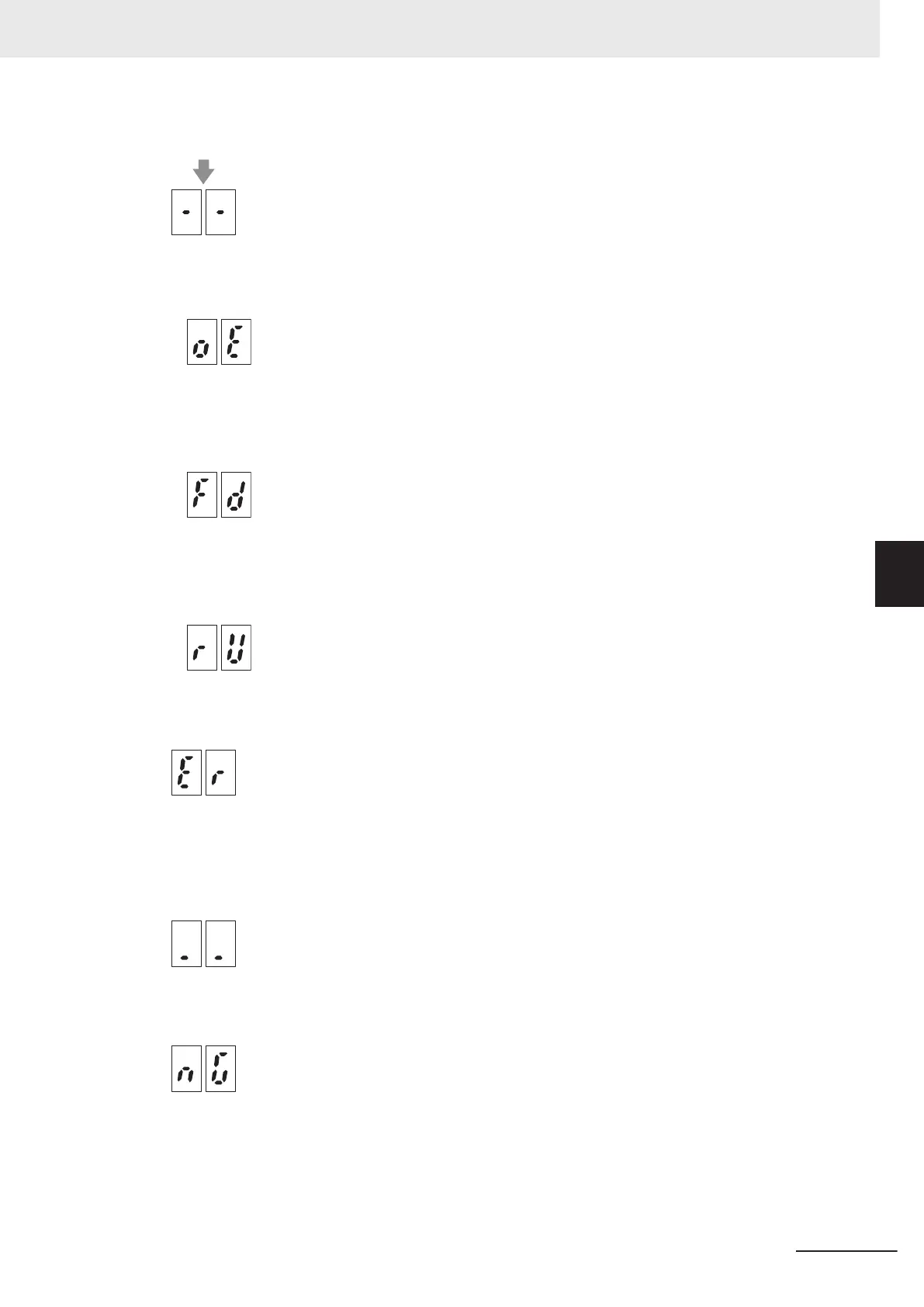

7SEG Monitor Item Selection (3052Hex-52Hex) = 0: Display drive status
Normal display
One second elapses
• Operation enabled status
The display is as follows when “Control Word” (6040Hex) is enabled.
• FW = ON status
The display is as follows when “Command” (5000Hex) is enabled and the direction of rotation is
forward.
• RV = ON status
The display is as follows when “Command” (5000Hex) is enabled and the direction of rotation is
reverse.
Alarm, light alarm occurred
For details on the LED display after an error has occurred, refer to 9-1-1 Alarm Display on page
9-2.
Measuring capacitor life
Functional safety state Error detected
5 Operation and Test Run
5-9
M1 Series EtherCAT Type User’s Manual (I670)
5-4 Operation Items for Test Run
