• The detection width of the frequency arrival signal is set at Frequency Arrival Detection Width
(FAR1/F
AR2/FAR3/FDT3/FDT4) (3005Hex-1FHex).
Parameter No. Function name Data Default data Unit
3005Hex-15Hex/
3005Hex-1CHex
Output Terminal [DO1] Function Selec-
tion/Output Terminal [ROA, ROB] Func-
tion Selection
1: F
AR1 (Constant
speed arrival signal) - -
3005Hex-1FHex
Frequency Arrival Detection Width
(FAR1/F
AR2/FAR3/FDT3/FDT4)
0.0 to 10.0
2.5 Hz
• When the output frequency is within the range of ± Frequency Arrival Detection Width (FAR1/FAR2/
FAR3/FDT3/FDT4) (3005Hex-1FHex) centering around the frequency reference, ON is output, and
when it is outside the range, this signal turns OFF
.
• During free-run or when the set frequency is less than the stop frequency, the RUN command turns
OFF, and turns OFF during a deceleration stop.

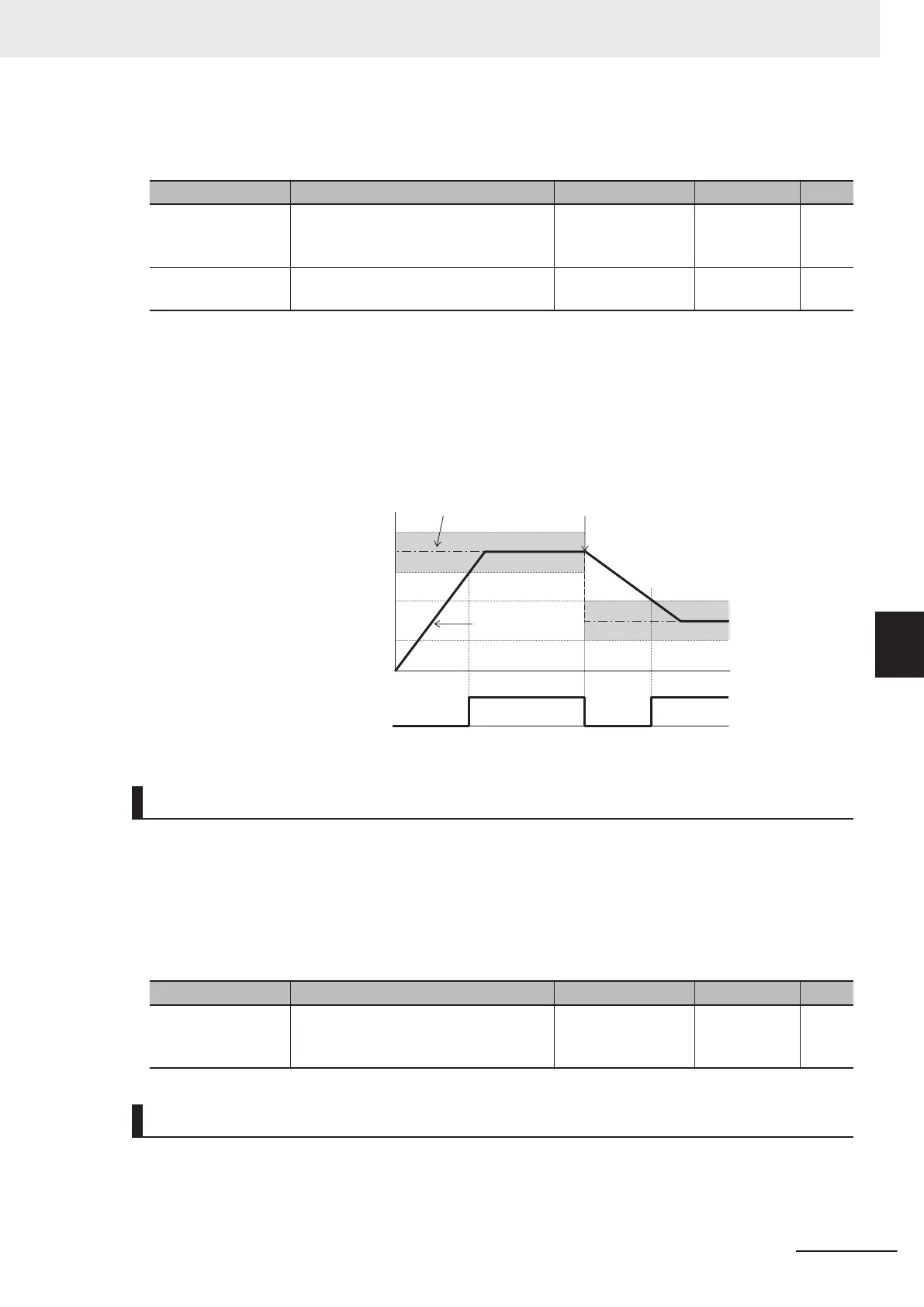

• The figure below shows an example of changing the frequency reference from frequency reference
(1) to frequency reference (2).
ON ON
Freq
uency s
et
ti
ng
s
Outpu
t frequency
Set frequency (1)
Set frequency (2)
Fre
quency reference (1) + 3005Hex-1FHex
C
hange frequency
reference
F
requen
c
y reference (1) - 3005H
ex-1FHex
Fre
quency reference (2) + 3005Hex-1FHex
F
requen
c
y reference (2) - 3005H
ex-1FHex
F
AR1
Alarm Signal (AL)
• The inverter detects an overcurrent, overvoltage, or some other abnormality, and outputs an alarm
signal (AL).
• The alarm signal is the default data of Output T
erminal [ROA, ROB] Function Selection
(3005Hex-1CHex).
• A trip state can be canceled by resetting the inverter, by which the alarm signal is also turned OFF.
• For details on a reset, refer to 6-8-1 Reset Function on page 6-43.
Parameter No. Function name Data Default data Unit
3005Hex-15Hex/
3005Hex-1CHex
Output Terminal [DO1] Function Selec-
tion/Output Terminal [ROA, ROB] Func-
tion Selection
99: AL (Alarm sig-
nal)
- -
0 Hz Detection Signal (ZS)
• This signal is output when the output frequency of the inverter falls below the 0Hz Detection Output
Detection Level (ZS) (301FHex-64Hex).
6 Basic Settings
6-63
M1 Series EtherCAT Type User’s Manual (I670)
6-10 Multi-function output
6
6-10-1 Multifunction Output Selection
