10
0
2
0
30
40
50
60
100 2 4 6 8

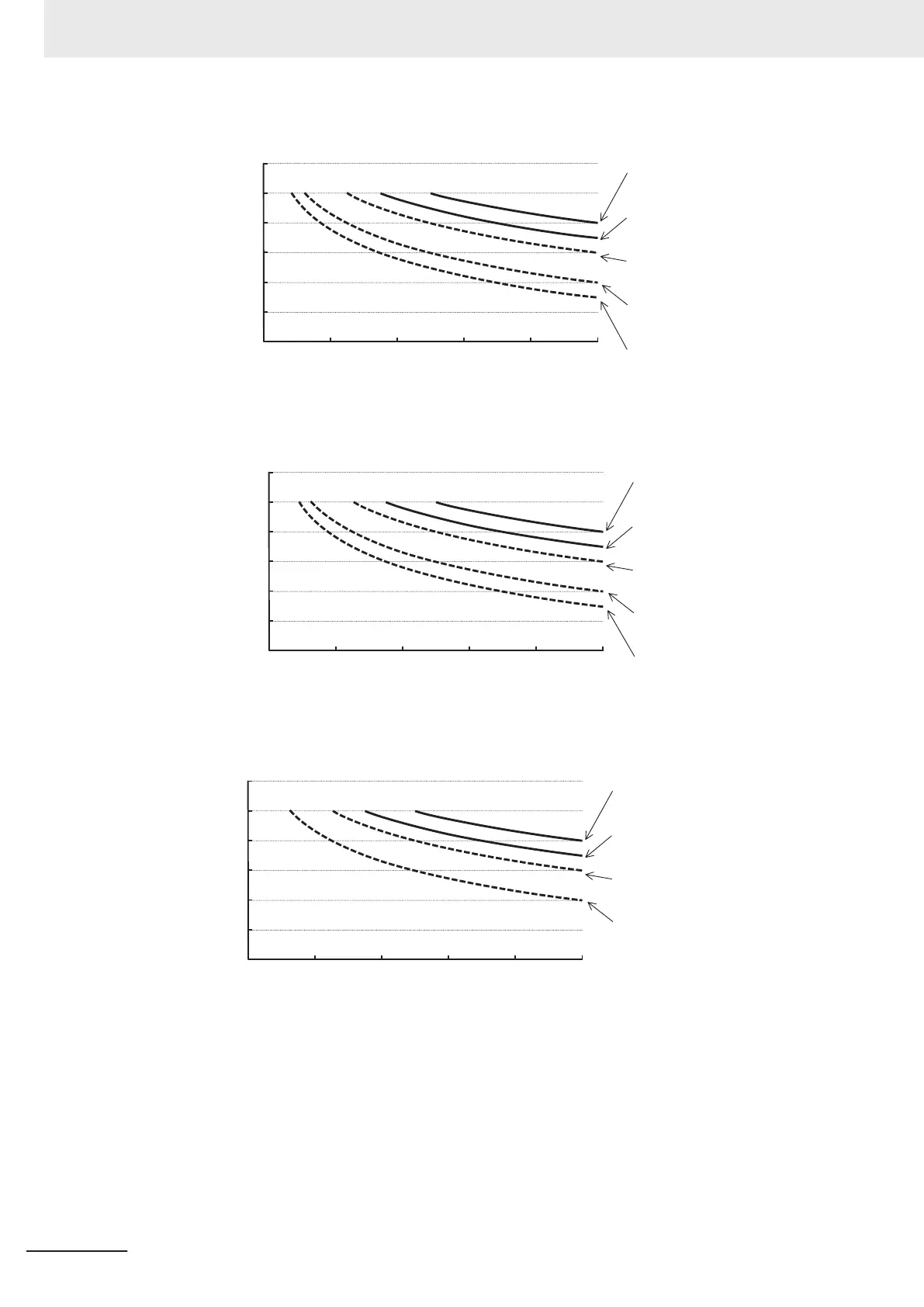

Ambient temperature [°C]
Capacitor life [Year]
Three-phase 400 V, 1.5 kW or lower, 3.0 kW
Electrification for 24 hours a day,
at load rate of 80% (ND)
Electrification for 24 hours a day,
at load rate of 80% (HHD/HND/HD)
Electrification for 24 hours a day,
at load rate of 100% (HND/HD)
Electrification for 24 hours a day,
at load rate of 100% (ND)
Electrification for 24 hours a day,
at load rate of 100% (HHD)
10
0
2
0
30
40
50
60
100 2 4 6 8
Ambient temperature [°C]
Capacitor life [Year]
Three-phase 400 V, 2.2 kW, 4.0 kW
Electrification for 24 hours a day,
at load rate of 80% (HND/ND)
Electrification for 24 hours a day,
at load rate of 80% (HHD/HD)
Electrification for 24 hours a day,
at load rate of 100% (HHD)
Electrification for 24 hours a day,
at load rate of 100% (HD)
Electrification for 24 hours a day,
at load rate of 100% (HND/ND)
10
0
20
30
40
50
60
100 2 4 6 8
Ambient temperature [°C]
Capacitor life [Year]
Three-phase 400 V, 5.5 kW or higher
Electrification for 24 hours a day,
at load rate of 80% (ND)
Electrification for 24 hours a
day,
at load rate of 100% (HHD) and
80% (HND/HD)
Electrification for 24 hours a day,
at load rate of 100% (HND/HD)
Electrification for 24 hours a day,
at load rate of 100% (ND)
