Omron BU100RS - Diagram of the Input;Output Circuit Block

1 Preparation

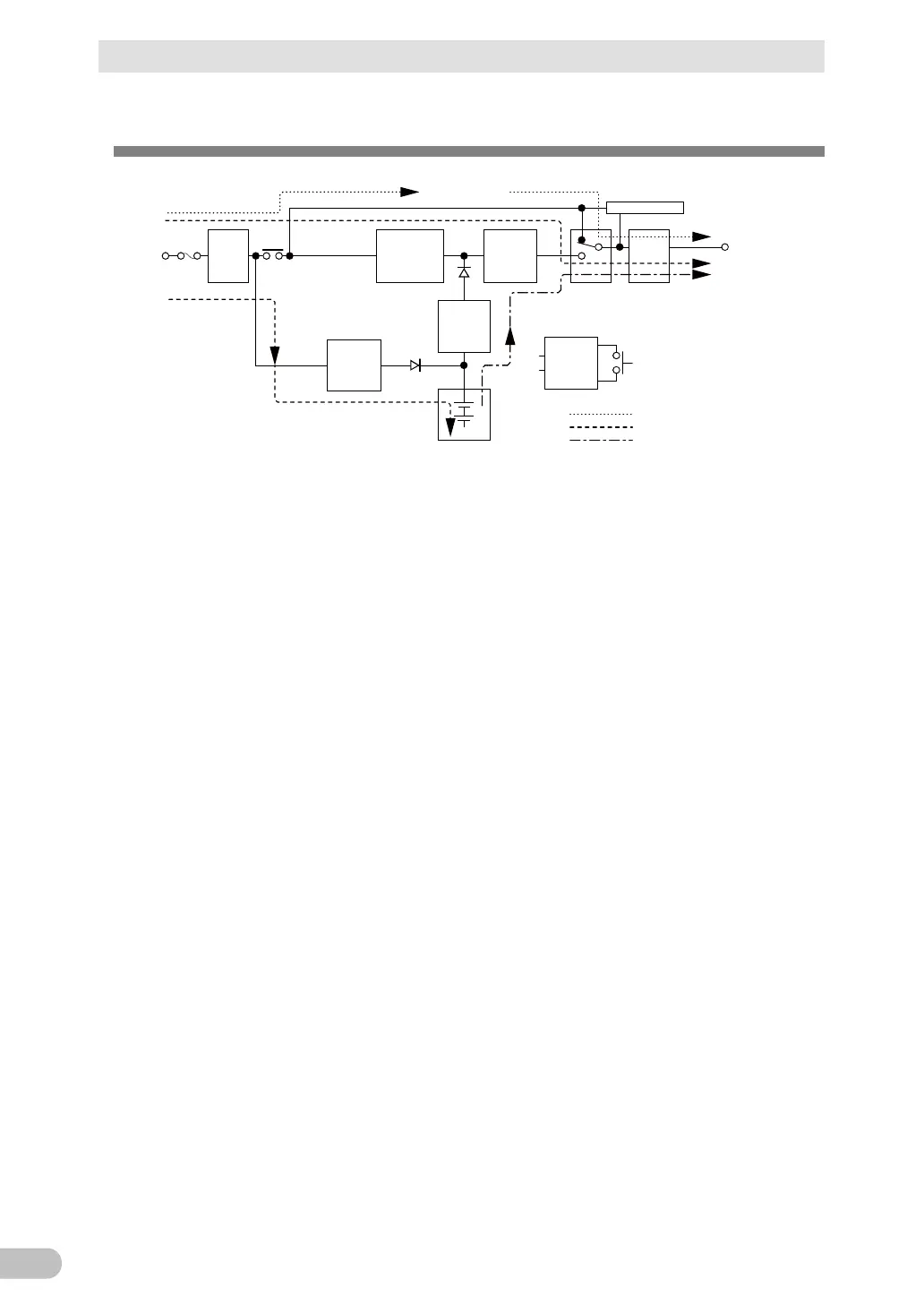

1-5 Diagram of the Input/output circuit block
BU100RS
20
1-5 Diagram of the Input/output circuit block
Noise
filter
Input
overcurrent
protection
AC100V
input
Power
supply
relay
Charging
circuit
Rectifier
(high power
factor
converter)
Step-up
converter
Inverter
(sine
wave)
Filter
Commercial
power bypass
output
Output
switching
Control
circuit
Power supply
switch
Battery
At startup/capacity exceeded/error
During Line mode
During Battery mode
Power
supply
output:
AC 100V
Electoronic switch
