This section provides the procedure for creating the I/O tables using a Programming Console. For
details on using the Programming Console, refer to the Programming Console’s operation manual.

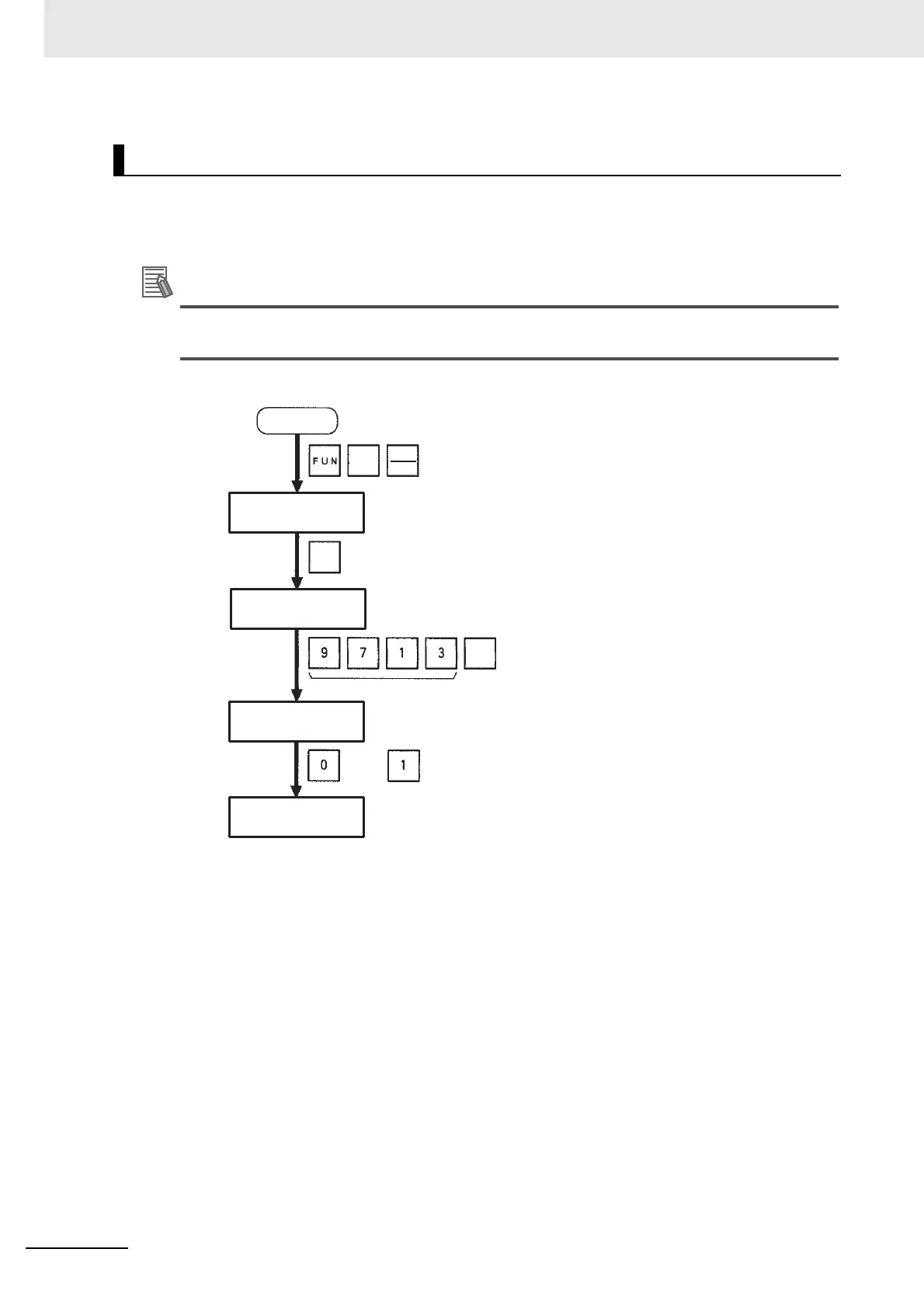

Use the following procedure to create the I/O tables.
Additional Information
With the CJ Series, it is necessary to create I/O tables only when the user is allocating I/O man-
ually.
Programming Console
Initial screen
Password
or
(Save or clear the CPU Bus Unit System Setup.)
SHIFT
WRITE
CHG
CH
*DM
000000 I/O TBL ?
000000 I/O TBL
WRIT ????
000000CPU BU ST?
0:CLR 1:KEEP
000000 I/O TBL
WRIT OK
