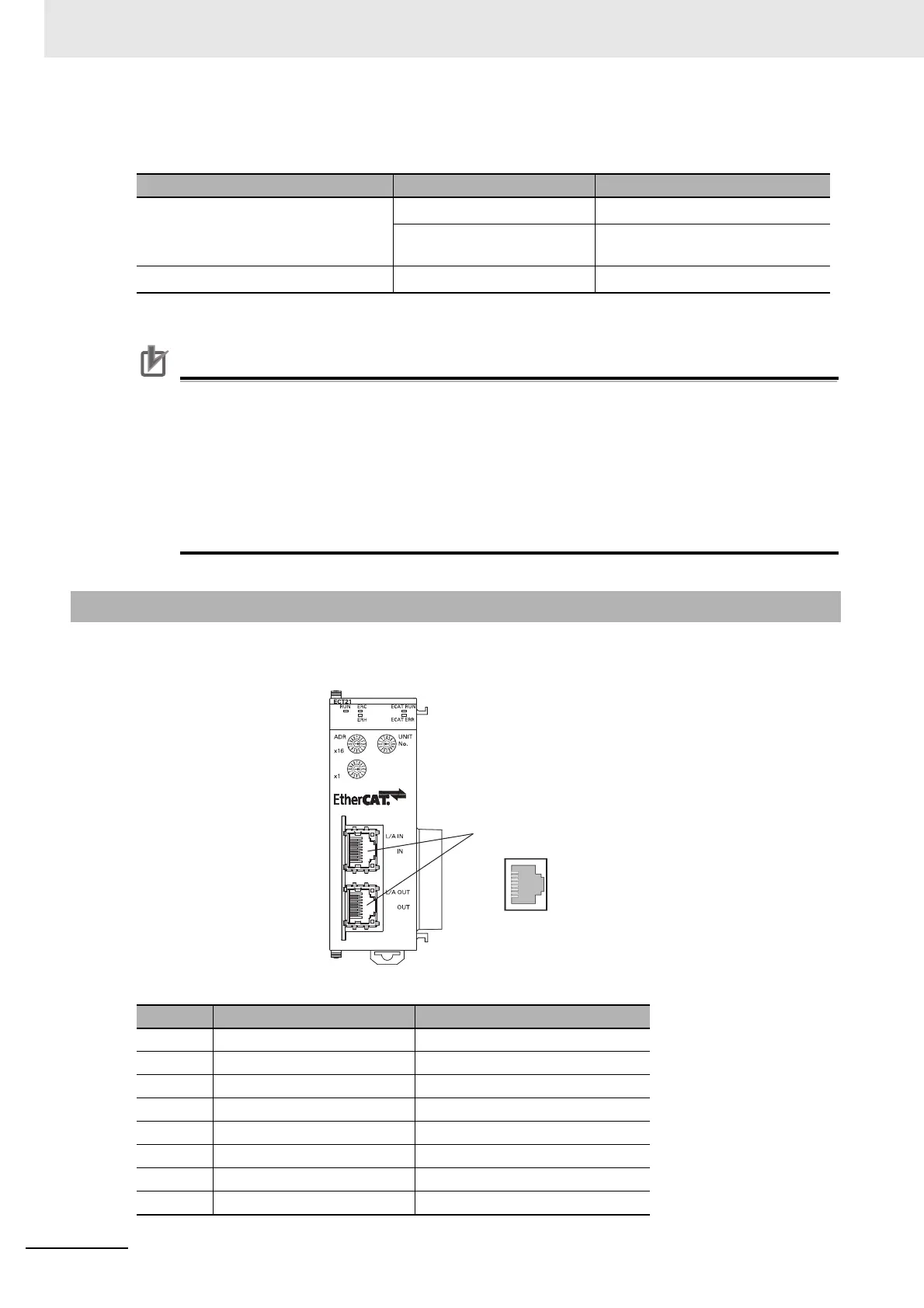

2 Nomenclature and Installation
2 - 12
CJ-series EtherCAT Slave Units Operation Manual (W541)
Sizes and Conductor Pairs: AWG 22 x 2 Pairs
Precautions for Correct Use
The maximum length between nodes is 100 m. However, some cables are specified for less
than 100 m. Generally speaking, if the conductors are twisted wire rather than solid wire,
transmission performance will be lower, and reliable communications may not be possible at
100 m. Confirm details with the cable manufacturer.
When selecting a connector, confirm that it is applicable to the cable that will be used. Con-
firm the following items: Conductor size, conductor type (solid wire or twisted wire), number
of twisted pairs (2 or 4), outer diameter, etc.
Use only the specified communication cables.
The pin arrangement of the EtherCAT communications connectors is given below.
Part name Manufacturer Model
Cables Kuramo Electric Co., Ltd.
KETH-PSB-OMR
*1
*1. A combination of the above cables and connectors is recommended for use.
Nihon Electric Wire & Cable
Co., Ltd.
PNET/B
*1
RJ45 Assembly Connectors Omron Corporation
XS6G-T421-1
*1
2-3-4 Pin Arrangements of Communications Connectors
Pin No. Signal name Abbreviation
1 Send data + TD+
2 Send data TD-
3 Receive data + RD+
4 Not used ---
5 Not used ---
6 Receive data - RD-
7 Not used ---
8 Not used ---
Communications
connectors
1
8
