A-5 Creating I/O Tables
A
A-5-3 Procedure for Creating I/O Tables
This section provides the procedure for creating I/O tables for the EtherCAT Slave Unit using the
CX-Programmer.
This section describes how to register an EtherCAT Slave Unit in the I/O tables using the CX-Program-
mer (version 9.54 or higher). Refer to the CX-Programmer Operation Manual (Cat. No. W446) for
details on the operating procedures.
This section describes how to register the CJ1W-ECT21 in the I/O tables by creating the I/O tables on a
computer with the CX-Programmer. In this example, the computer is connected to the PLC using a
serial cable. The CJ1W-ECT21 is connected to a CJ1H-CPU65 CPU Unit.

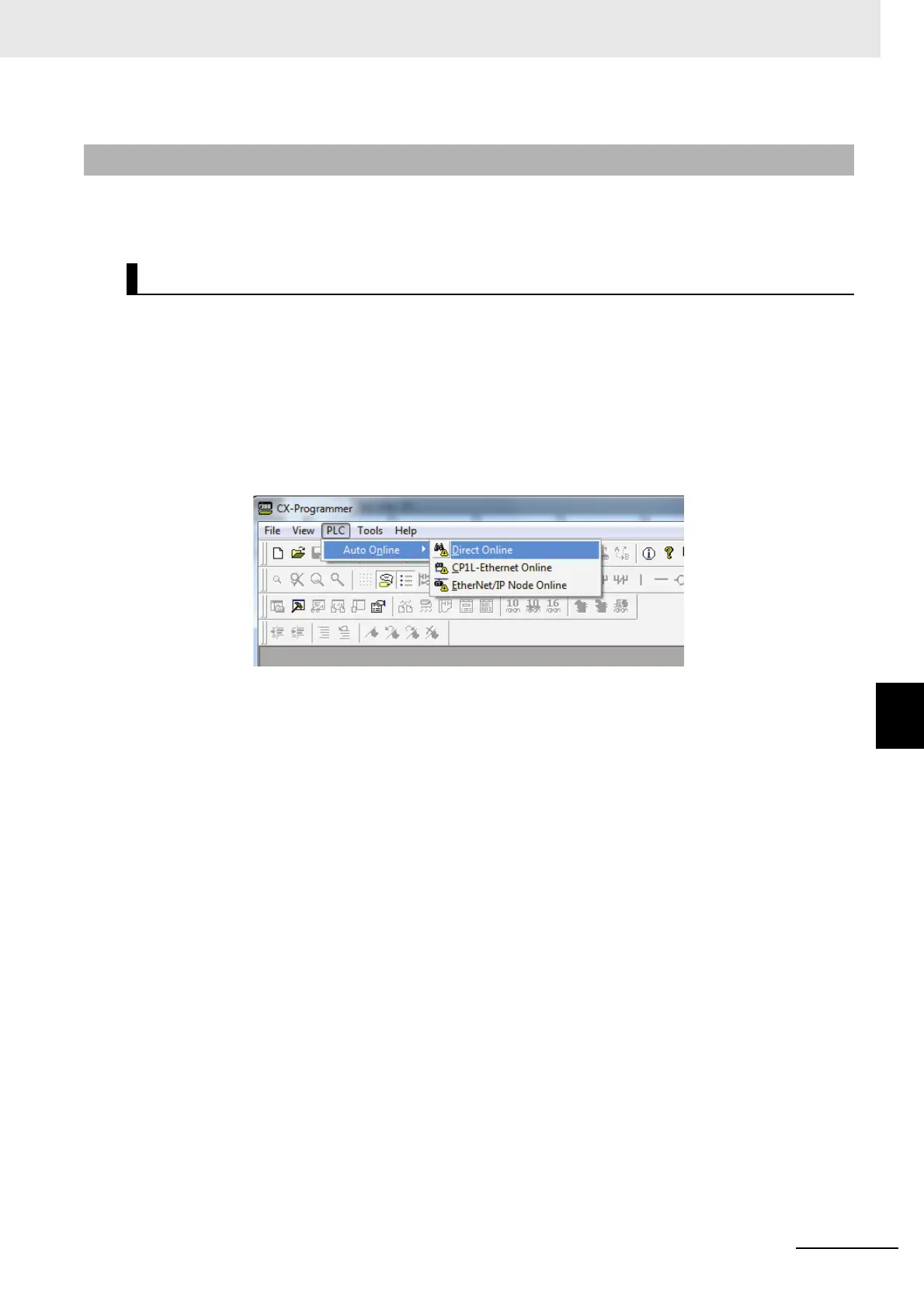

1 Start the CX-Programmer, and then select PLC - Auto Online - Direct Online from the menus.
