1 Features and System Configuration
CJ-series EtherCAT Slave Units Operation Manual (W541)
1-2 EtherCAT Slave Unit Fea-
tures
1
1-2 EtherCAT Slave Unit Features
The EtherCAT Slave Unit has the following features when used with the CJ-series CPU Unit.
Exchange data over the EtherCAT network between the EtherCAT master and the CPU Unit through
the EtherCAT Slave Unit.
Choose the amount of data to exchange over the EtherCAT network from 0, 50, 100, 200 or 400 bytes.

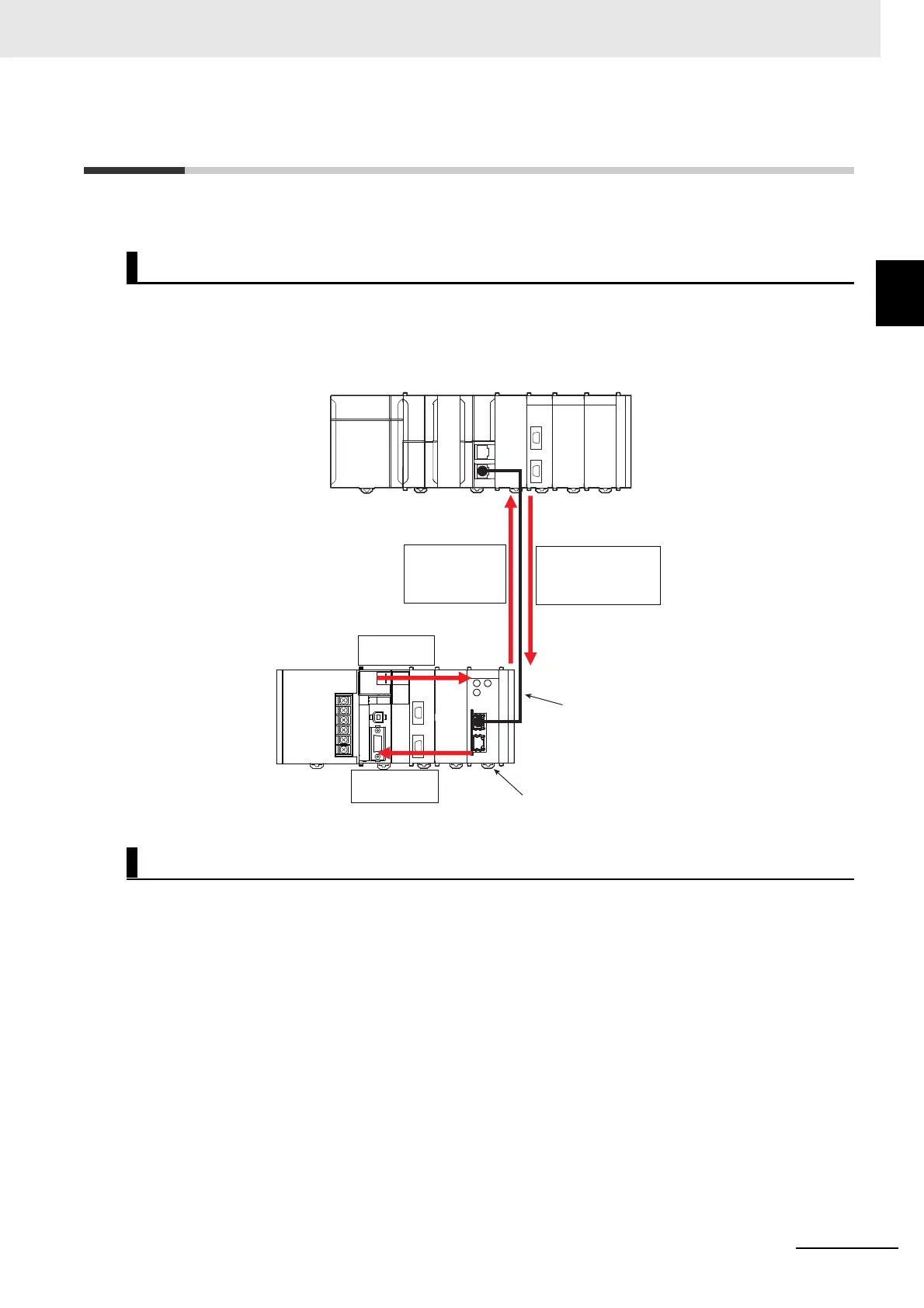

Data Exchange Between EtherCAT Master and CPU Unit
Adjustable Data Exchange Sizes
EtherCAT Slave Unit
EtherCAT master
RxPDO
Output data to
EtherCAT Slave Unit
TxPDO
Input data to
EtherCAT master
OUT data area
(CPU Unit)
IN data area
(CPU Unit)
EtherCAT network
