4-5 Inputting Programs
4
4
58 SYSMAC CP1L/CP1E Introduction Manual
Creating Programs

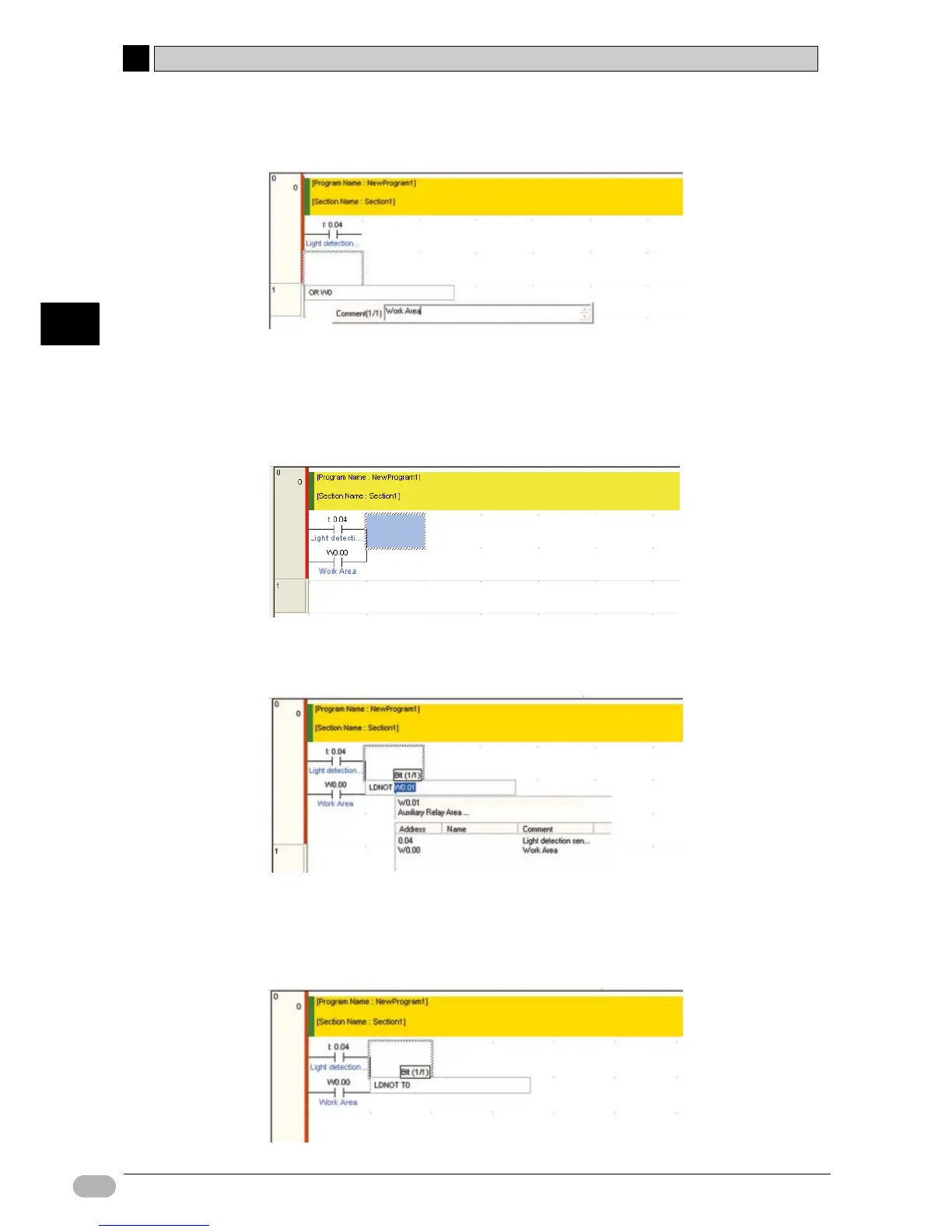

5. Input "Work Area" as the I/O comment. Press the [Enter] key.
An OR circuit representing the work area contact will be displayed.
Next, input a closed contact.
■Inputting Closed Contacts
1. Press the up arrow key.
The cursor is moved upward.
2. With the cursor in the up position, press the [/] key.
"LDNOT W0.01" will be displayed.
3. Press the [Enter] key.
"Bit (1/1)" will be displayed and "W0.01" will be displayed in reverse video.
4. Input address "T0". Press the [Enter] key.
To Next Page
