Omron CX-DESIGNER - INTRODUCTION GUIDE User Manual

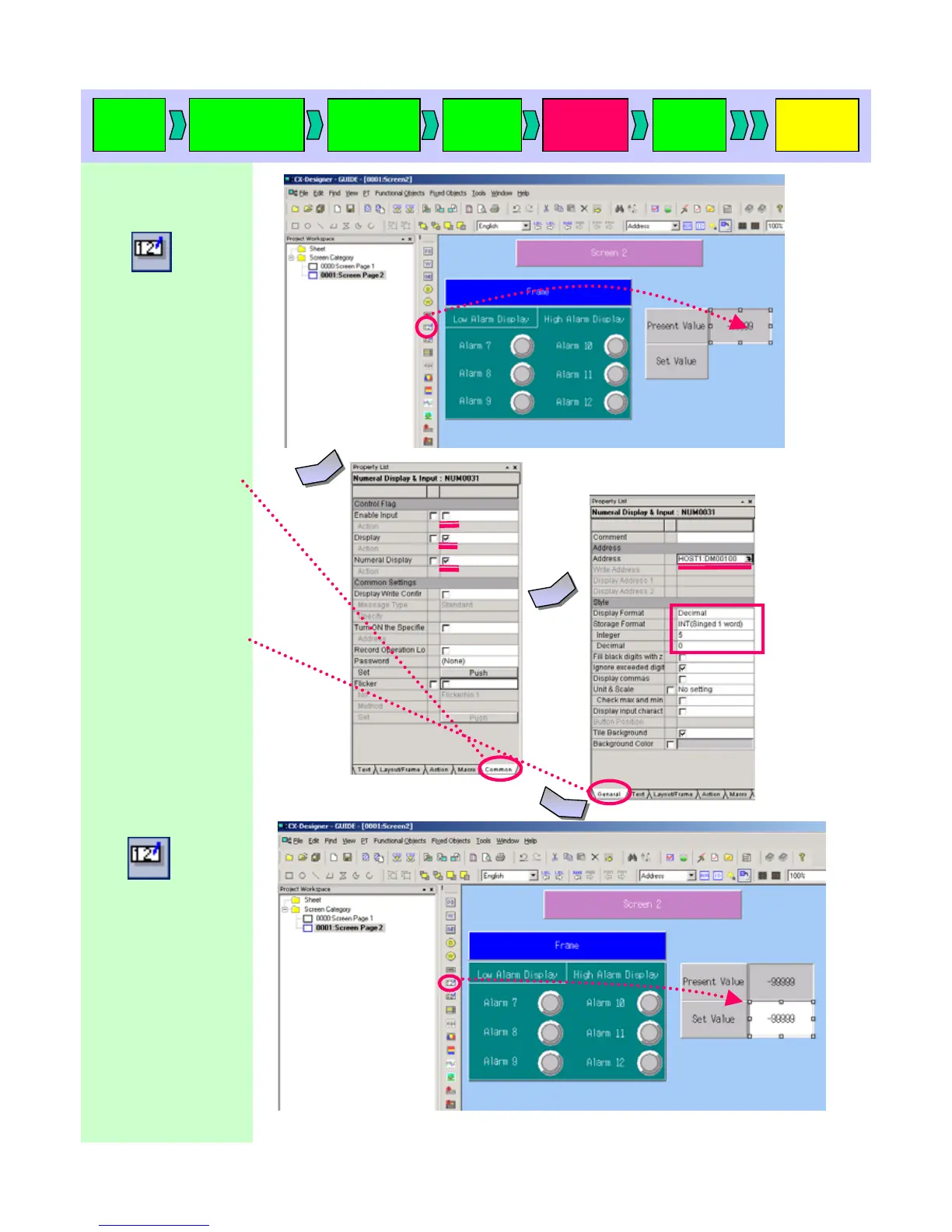

Select the Numeral
Display& Input icon
and place it next to the
label “Present Value”.
Common tab
[Enable input]
! Uncheck the box.
[Display]
! Uncheck the box.
[Numeral Display]
! Check the box.
Set as follow from the
object property list.
General tab
[Address]
! “HOST 1 DM00100”
[Display Format]
! “Decimal”
[Storage Format]
! “INT (Signed 1 word)”
[Integer]
! “5”
[Decimal]
! “0”
Select the Numeral
Display & Input icon
from the object list
Set as follow from
the object property
list.
Common tab
[Enable Input]
! Check the box.
General tab
[Address]
! “$W0”
[Background]
! “White”
Start up
CX-D
Creating a
new project
Project
property
System
setting
Creating
a screen
Validation
Transferring
a project
