Using a Word button.
Word button is an object that writes constants to the address (DM etc…) when it is
pressed, or increases/decreases the value of the address. It is possible to display a
pop-up menu and select the value from constants. In this manual, you will create a
word button to write the set value (Internal address) to the present value (PLC address).
General tab
[Address]
! “HOST1 DM00100”
[Action]
! “Set Value”
[Set Value]
! “$W0”
Also set [Color 1] and
[Color 3].
Text tab
[Label]
! “Transfer”
16. Word Button
16. Word Button

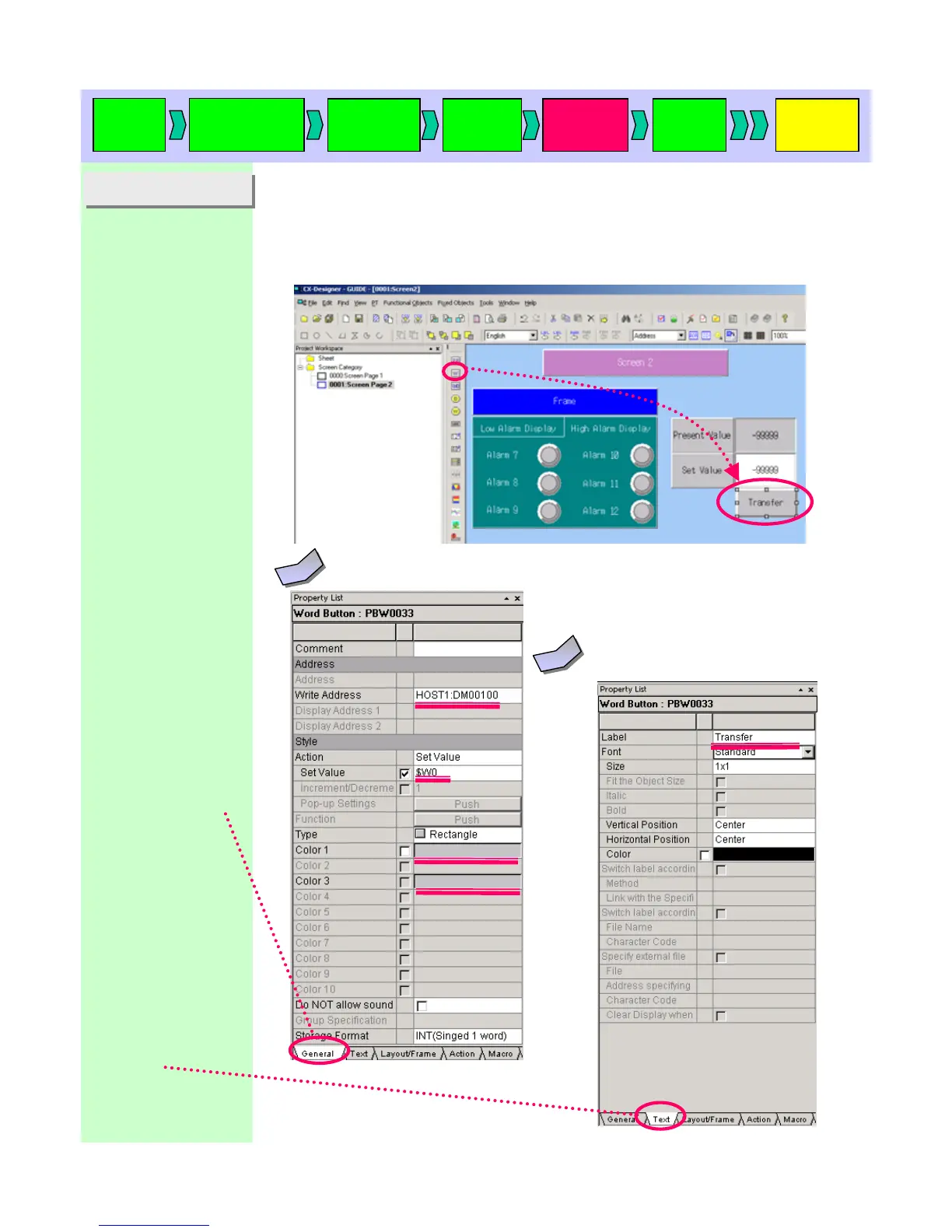

Paste a Word button.
Set as follow on the
object property list.
Start up
CX-D
Creating a
new project
Project
property
System
setting
Creating
a screen
Validation
Transferring
a project
