Omron CX-DESIGNER - INTRODUCTION GUIDE - Page 63

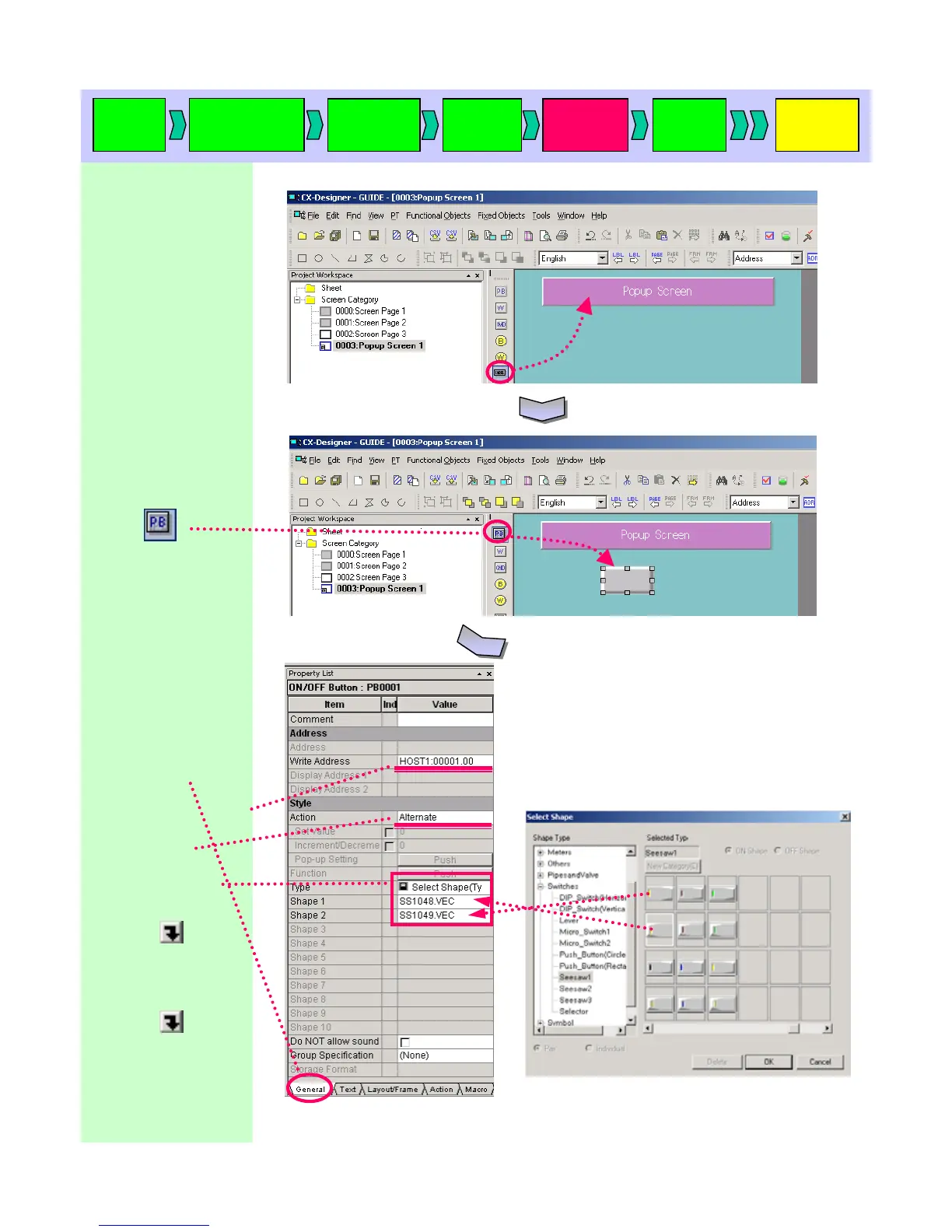

General tab
[Address]
! “HOST1: 00001.00
[Action]
! “Alternate”
[Type]
! “Select Shape”
(Type1)”
[Shape 1]
! Click
to display the Select the
Shape dialog box and
select a switch.
[Shape 2]
! Click
to display the Select
Shape dialog box and
select a switch.
Create a label as shown
on the right by referring
to “9. Displaying a Text”.
[Label]
! “Pop-up Screen”
Select the ON/OFF
button
on the list.
On the object property list,
set as follow:
