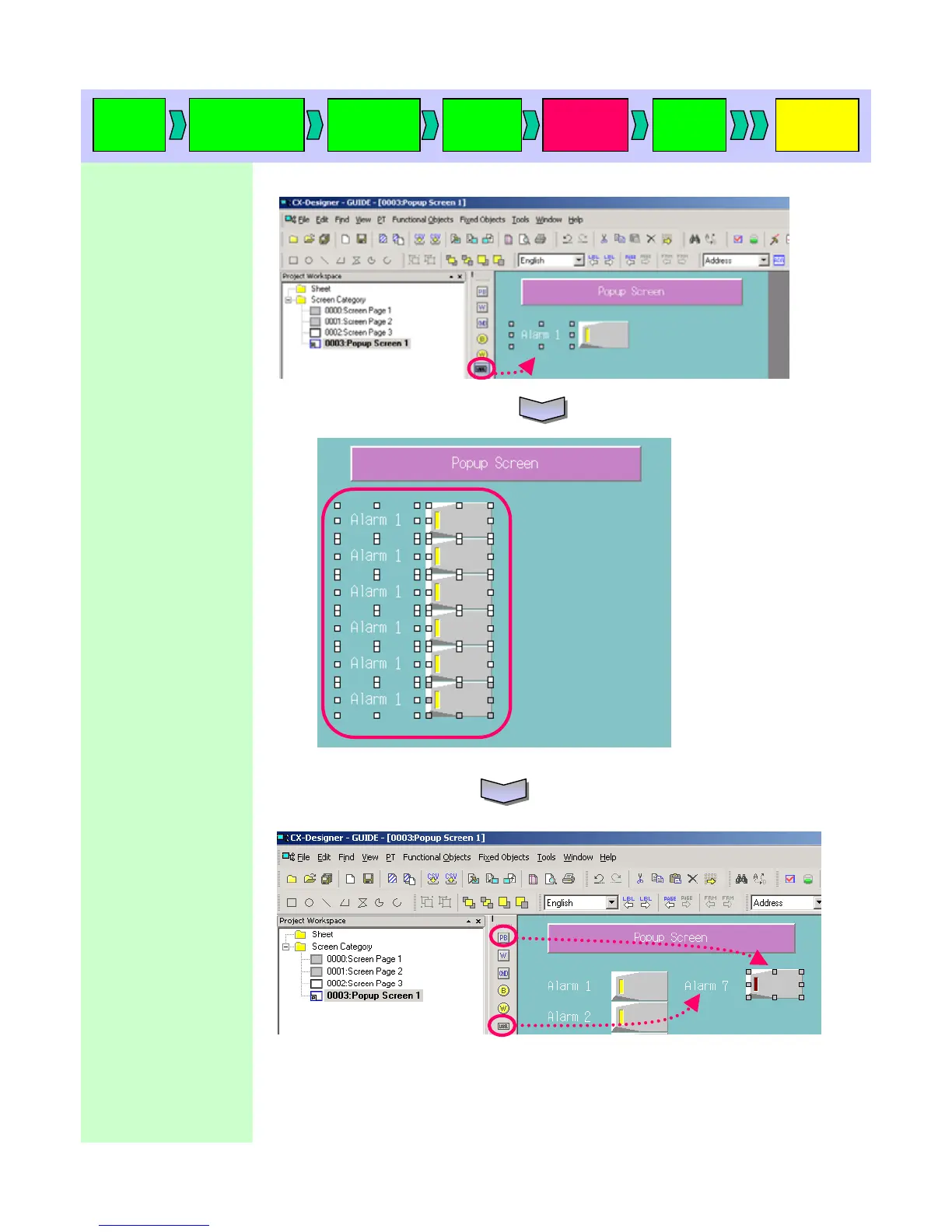

Create a label as shown
on the right by referring
to “9. Displaying a Text”.
[Label]
! “Alarm 1”
Create six ON/OFF
buttons and labels using
the Repeat function.
Repeat Function
[Qty]
Horizontal ! “1”
Vertical ! “6”
[Spacing]
Horizontal ! “0”
Vertical ! “0”
[Offset Address] ! “1”
Enter an object label as
“Alarm 1” to “Alarm 6”
respectively.
Create an ON/OFF button
and label it as “Alarm 7”
in the way you made
“Alarm 1”.
Set the text object property
list as follow:
[Label]
! “Alarm 7”
