Omron E5*C Series

3 - 13
3 Part Names and Basic Procedures
E5@C Digital Temperature Controllers User’s Manual (H174)
3-4 Procedures after Turning ON the Power Supply
3

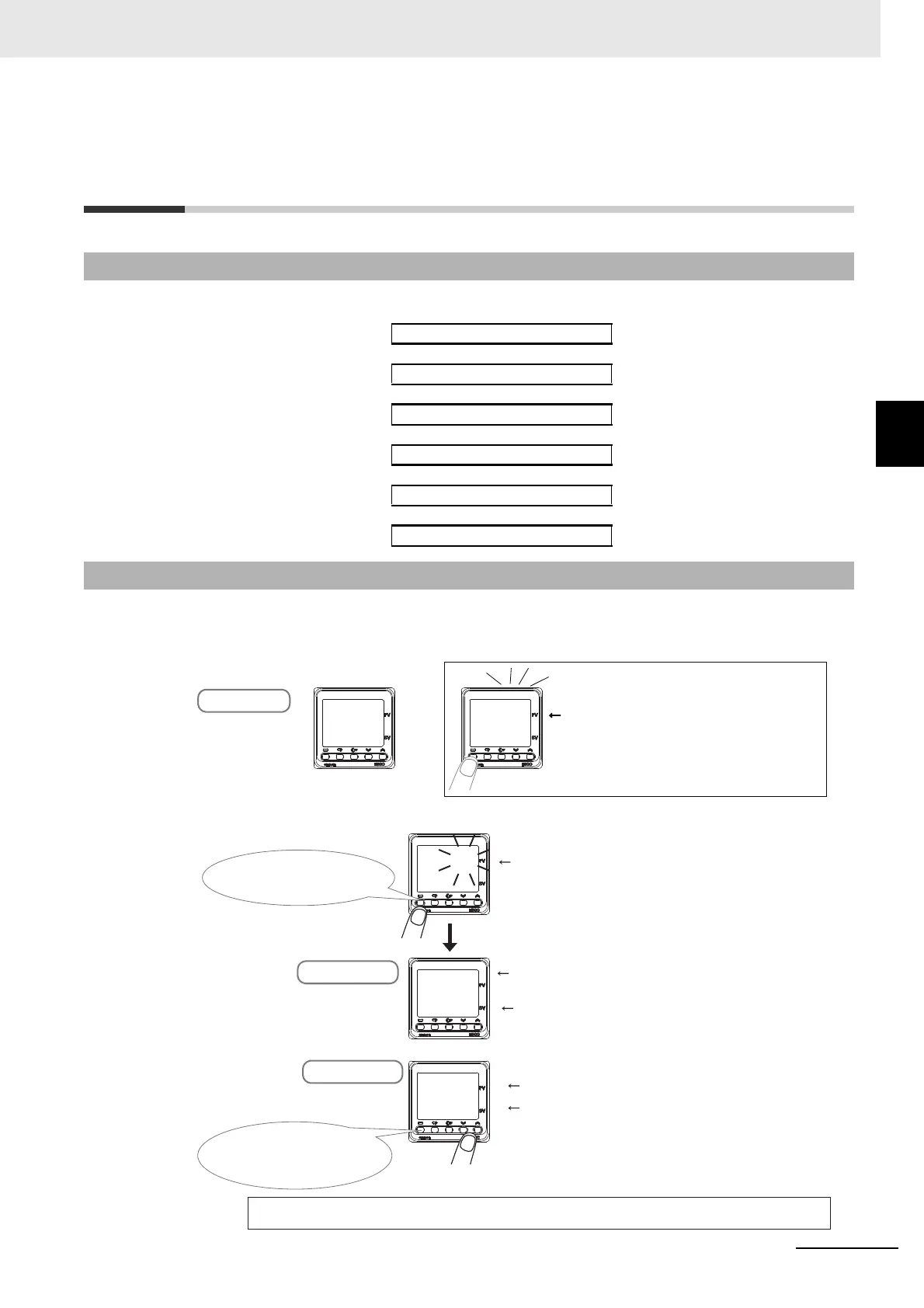

3-4-1 Basic Flow of Operations
3-4 Procedures after Turning ON the
Power Supply
The basic flow of operations after you turn ON the power supply is shown below.
The basic procedure is given below.
1 Turn ON the power supply.
2 Set the input type.
3-4-1 Basic Flow of Operations
1. Turn ON the power supply.
↓
2. Set the input type.
↓
3. Set the control method.
↓
4. Set the alarm type.
↓
5. Set the set point.
↓
6. Set the alarm set values.
3-4-2 Basic Procedure
25
0
s.err
0
Operation Level
s.err (input error) flashes on the display
if a sensor is not connected or if the
connected sensor is different from input
type. Connect a sensor if one is not
already connected.
25
0
in-t
5
in-t
0
in-t (IN-T): Indicates the Input Type parameter.
The default setting is 5
(5: K thermocouple at −200 to 1,300 °C).
Initial Setting Level
Initial Setting Level
The display flashes.
When you are finished, press the O (Level) Key for at least 1 second to return to the operation display.
Input Type: 0
(Pt100 resistance thermometer at −200 to 850 °C) (example)
Press the O (Level) Key
for at least 3 seconds.
in-t (IN-T) will be displayed to show that the Initial
Setting Level has been entered.
Press the U (Up) and
D (Down) Keys to
change the value.
