E5@C-T Digital Temperature C
ontrollers User’s Manual (H185
)
(3)
Selecting the Operat
ion T
ype
F
rom one to f
our oper
ations are supported. If work bits are not to be us
ed, set them to
No
operation (
Alwa
ys OFF)
(the default).
•
No operation
(Alwa
ys OFF)
•

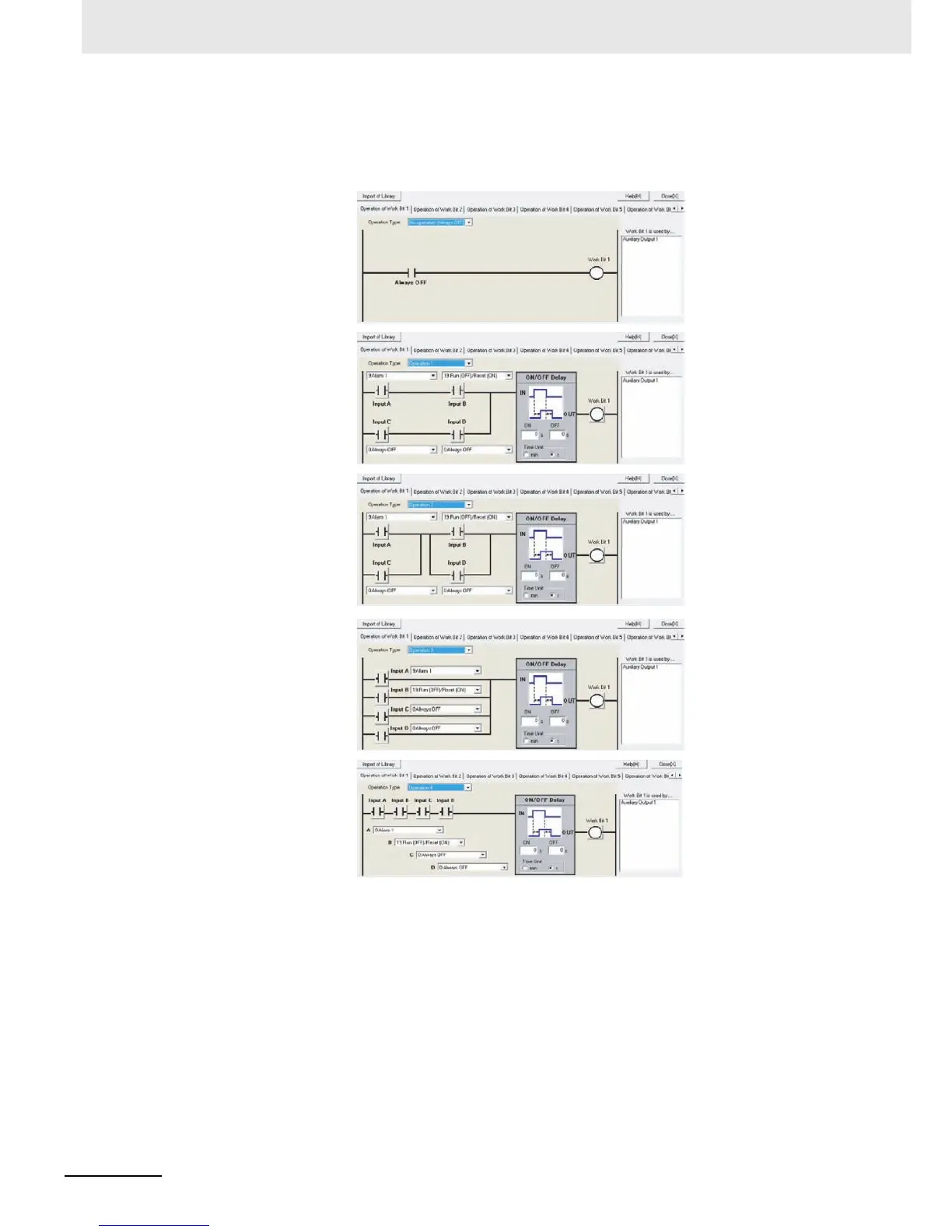

Operation 1
(A and B) or (C and
D)
When conditions A
and B or conditions C
and D are satisfied
•
Operation 2
(A or C) and (B or D)
When condition A or C
and condition B or D
are sati
sfied
•
Operation 3
A or B or C or D
When condition A, B,
C or D is satisfied
•
Operation 4
A and B and C and D
When conditions A, B,
C and D are all
satisfied
